Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

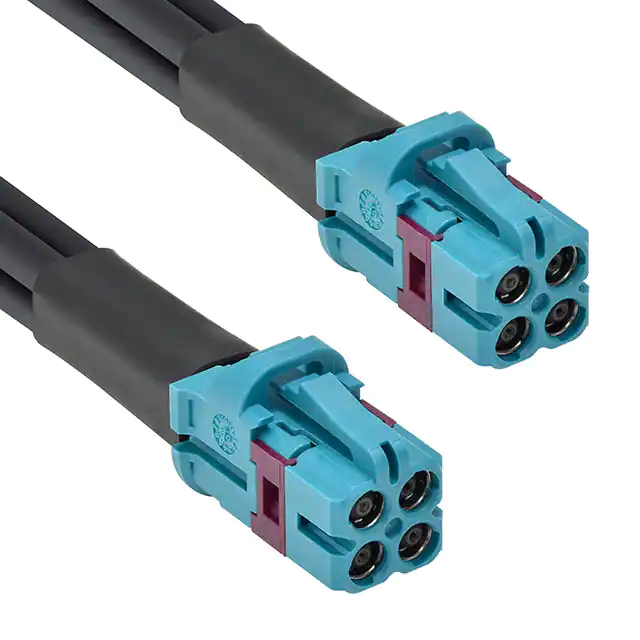

CA-BM04ZJ-BM04ZJ-3.3COAX CBL MINI FAKRA-MINI FAKRA |
1,225 |
|
Datasheet |
CA | Bag | Active | Mini Fakra to Mini Fakra | Fakra II (Gen 2.0) Mini Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Mini Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.130" Flexible Cable | 50 Ohms | - | - | - | Black | Shielded | -40°C ~ 105°C | - | - |
|

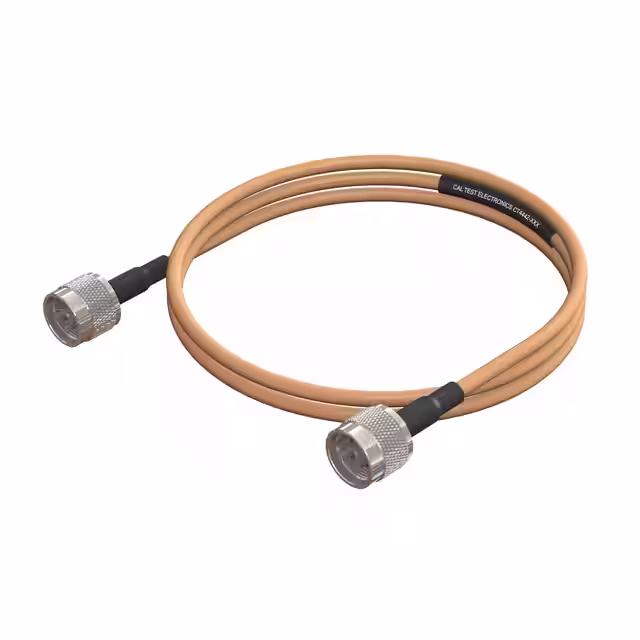

CT4442-100COAX CBL N-TYPE TO N-TYPE |
2,865 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-142B | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -45°C ~ 125°C | - | - |
|

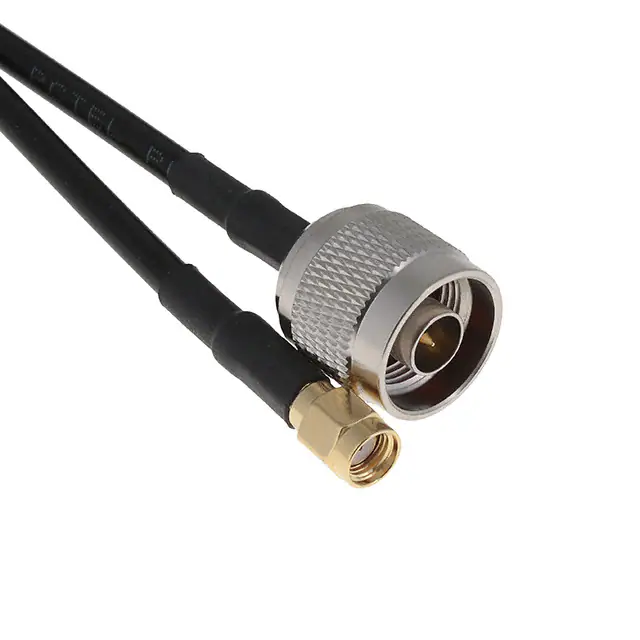

810630COAX CBL RP-SMA TO N-TYPE |
1,132 |
|
- |
- | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 200 | - | - | - | - | Black | - | - | - | - |
|
C28S-04.00-SPS8-SPS8COAX CBL U.FL TO U.FL |
1,374 |
|
Datasheet |
C28S | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Twinaxial | 100 Ohms | - | 100 Ohms | 4 GHz | Blue | Shielded | -20°C ~ 105°C | - | - |
|
RF047-A-M0SJ-M0SJ-0610COAX CBL SMPM TO SMPM |
2,610 |
|
Datasheet |
RF047-A | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|
IB086-SMSMPF-10.0INCOAX CBL SMA TO SMP |
2,148 |
|
Datasheet |
INSTABEND™ | Bag | Active | SMA to SMP | SMP Jack | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 62 GHz | Blue | - | -60°C ~ 125°C | - | - |
|
095-909-173M150COAX CBL N-TYPE TO N-TYPE |
4,414 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
IB086-SMSMPF-12.0INCOAX CBL SMA TO SMP |
2,066 |
|
Datasheet |
INSTABEND™ | Bag | Active | SMA to SMP | SMP Jack | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 62 GHz | Blue | - | -60°C ~ 125°C | - | - |
|
4528-X-24COAX CBL SMA TO SMA |
2,166 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142B | 50 Ohms | - | 50 Ohms | 12.4 GHz | Brown | Shielded | 200°C | - | - |
|
|
IB086-SMSM-8.0INCOAX CBL SMA TO SMA |
2,884 |
|
Datasheet |
INSTABEND™ | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 62 GHz | Blue | - | -60°C ~ 125°C | - | - |
|
|
IB086-KMKM-10.0INCOAX CBL 2.92MM TO 2.92MM |
3,224 |
|
Datasheet |
INSTABEND™ | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 62 GHz | Blue | - | -60°C ~ 125°C | - | - |
|
|
095-909-173-024COAX CBL N-TYPE TO N-TYPE |
2,853 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

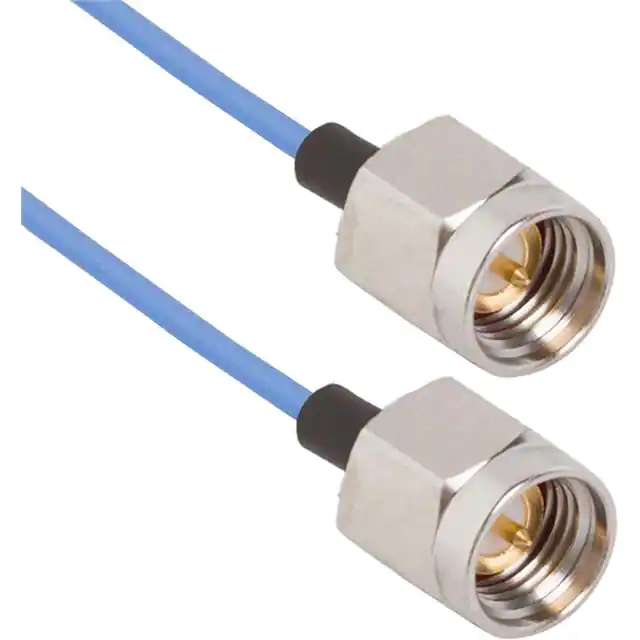

7029-3773COAX CBL SMA TO SMA |
1,901 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.047" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
CCSMA121-MM-086F-120COAX CBL SMA TO SMA |
2,427 |
|
Datasheet |
CCSMA121 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | 2.54mm OD Coaxial Cable | - | - | 50 Ohms | 12.6 GHz | Blue | Shielded | -45°C ~ 85°C | - | - |
|
|
RF047-A-M0SJ-M0SJ-0152COAX CBL SMPM TO SMPM |
4,830 |
|
Datasheet |
RF047-A | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|
|
IB047-SMSM-4.0INCOAX CBL SMA TO SMA |
1,637 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 27 GHz | Blue | - | -65°C ~ 125°C | - | - |
|

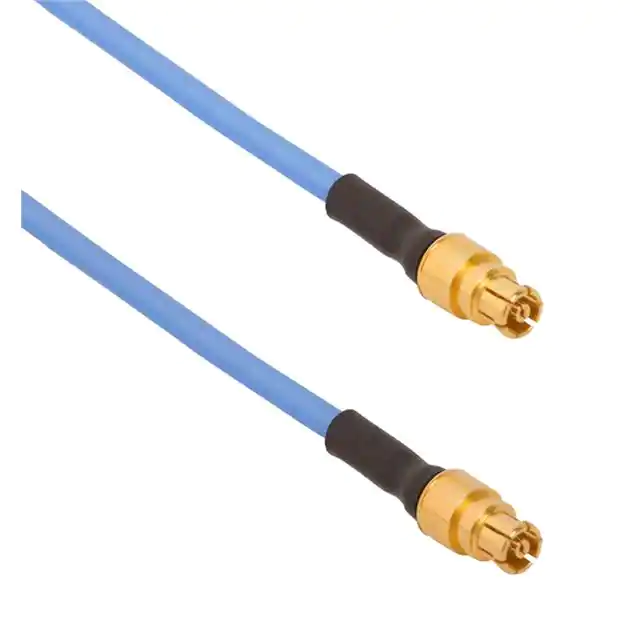

7032-8608COAX CBL SMPM TO SMPM |
3,792 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.047" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 65 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
IB047-SMSM-6.0INCOAX CBL SMA TO SMA |
1,582 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 27 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
|
IB047-SMSM-8.0INCOAX CBL SMA TO SMA |
3,845 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 27 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
|
IB047-SMSM-10.0INCOAX CBL SMA TO SMA |
4,816 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 27 GHz | Blue | - | -65°C ~ 125°C | - | - |
