Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-108-040COAX CBL SMP TO SMP |
2,187 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-725-117-006COAX CBL SMP TO SMP |
2,380 |
|
Datasheet |
- | Bulk | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-226M100COAX CBL TNC TO TNC |
3,190 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
095-850-221-012COAX CBL TNC TO TNC |
1,162 |
|
Datasheet |
ARC | Bag | Active | TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
175101-R2-04.00COAX CBL N-TYPE TO N-TYPE |
1,626 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
CT4445-100COAX CBL SMA TO SMA |
3,481 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-142B | 50 Ohms | - | 50 Ohms | 8 GHz | Brown | - | -45°C ~ 125°C | - | - |
|
095-850-227M100COAX CBL TNC TO TNC |
1,463 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
095-902-459-009COAX CBL SMA TO SMP |
3,198 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
135101-07-M1.00COAX CBL SMA TO SMA |
1,723 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
095-725-107-050COAX CBL SMP TO SMP |
3,254 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 5.000" (127.00mm) | TFlex-405 | - | - | 50 Ohms | 20 GHz | Blue | Shielded | - | - | - |
|
415-0082-024COAX CBL SMA TO SMA |
3,668 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|

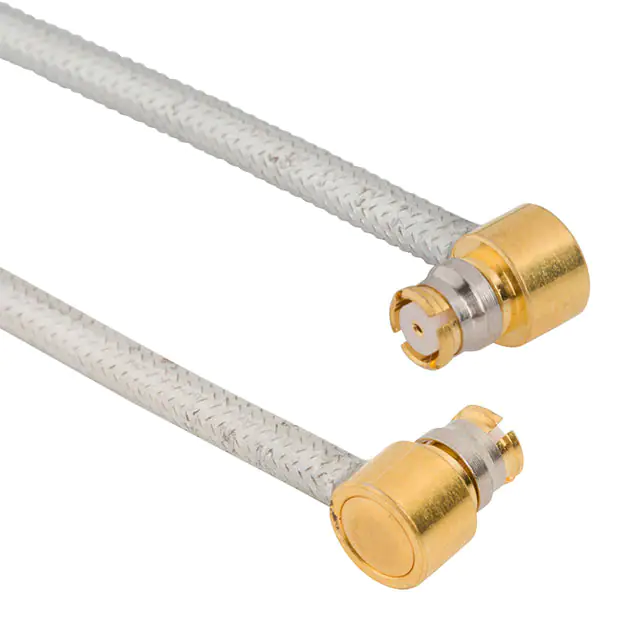

095-725-117-012COAX CBL SMP TO SMP |
2,394 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
095-902-459-011COAX CBL SMA TO SMP |
4,035 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 11.000" (279.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
095-850-220-024COAX CBL TNC TO TNC |
4,197 |
|
Datasheet |
ARC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|

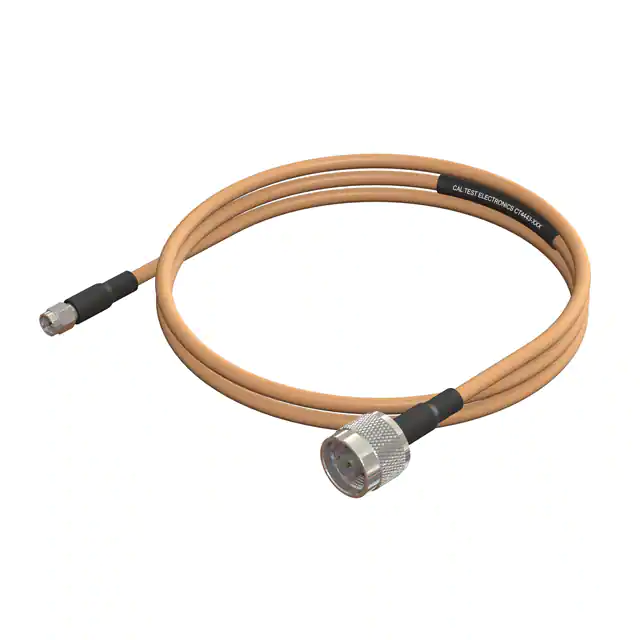

CT4443-60COAX CBL SMA TO N-TYPE |
2,147 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 23.62" (600.00mm) | RG-142B | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -45°C ~ 125°C | - | - |
|
095-902-530M100COAX CBL SMA TO N-TYPE |
1,948 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
TM4SSSTSSTS016C-PCOAX CBL SSMP TO SSMP |
1,346 |
|
Datasheet |
- | Bag | Active | SSMP to SSMP | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | 6.299" (160.00mm) | 0.047" Semi-Rigid Cable | - | - | - | 65 GHz | Teal | - | - | - | - |
|

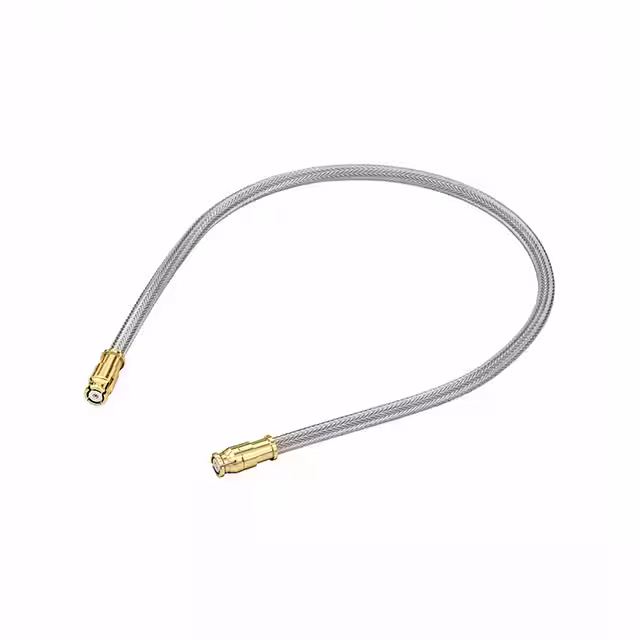

65503320815301COAX CBL SMP TO SMP |
3,709 |
|
Datasheet |
WR-CXASY | Bag | Active | SMP to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Silver | Shielded | -65°C ~ 165°C | - | - |
|
095-725-111-030COAX CBL SMPM TO SMPM |
4,631 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
095-725-107M025COAX CBL SMP TO SMP |
4,025 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | TFlex-405 | - | - | 50 Ohms | 20 GHz | Blue | Shielded | - | - | - |
