TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ8.5ATVS DIODE 8.5VWM 14.4VC DO214AC |
646 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V (Max) | 9.92V (Typ) | 14.4V | 27.8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
PESD2CANFD24LU-QXAUTOMOTIVE IN-VEHICLE NETWORK PR |
630 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 25.5V | 41V | 4A (8/20µs) | - | No | CAN | 9pF @ 1MHz | -55°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
SMAJ20ATVS DIODE 20VWM 32.4VC DO214AC |
600 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 20V (Max) | 23.35V (Typ) | 32.4V | 12.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
SMAJ36ATVS DIODE 36VWM 58.1VC DO214AC |
563 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 42.1V (Typ) | 58.1V | 6.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
SMAJ70CATVS DIODE 70VWM 113VC DO214AC |
554 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 70V (Max) | 81.9V (Typ) | 113V | 3.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
|
SMAJ60ATVS DIODE 60VWM 96.8VC DO214AC |
529 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 60V (Max) | 70.2V (Typ) | 96.8V | 4.1A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
|
SMAJ7.0CATVS DIODE 7VWM 12VC DO214AC |
440 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 8.19V (Typ) | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
|
SMAJ7.0ATVS DIODE 7VWM 12VC DO214AC |
366 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 8.19V (Typ) | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
STS321120U901TVS DIODE 12VWM 24VC SOD323 |
196 |
|
Datasheet |
SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

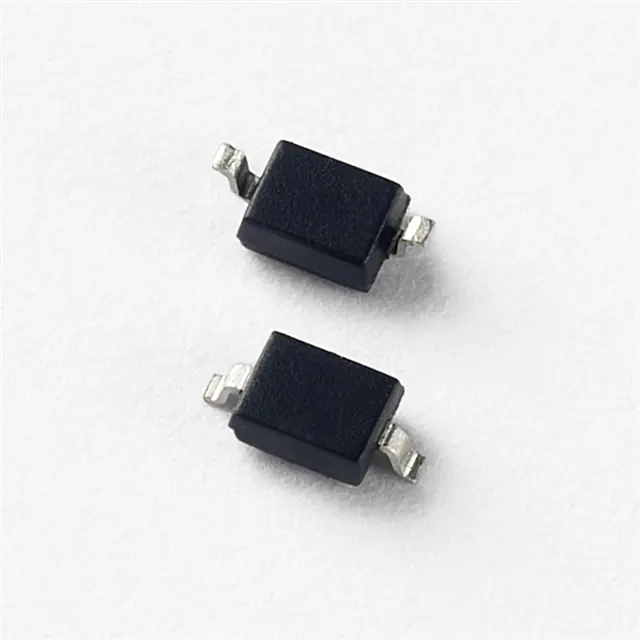

SD22-01FTGTVS DIODE 22VWM 35.5VC SOD323 |
954 |
|
Datasheet |
SC-76, SOD-323 | SD, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 23V | 35.5V (Typ) | 27A (8/20µs) | 950W | No | - | 160pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | - | Surface Mount | SOD-323 |
|
|
PESD1IVN27-UXTVS DIODE 27VWM 45VC SOT323 |
885 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 27V | 28V | 45V | 3A (8/20µs) | - | No | CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMBJ58A/TR13TVS DIODE 58VWM 93.6VC DO214AA |
438 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
ACPDQC5V0-HFTVS DIODE 5VWM 15V 0402C/SOD923F |
294 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.1V | 15V | 5A (8/20µs) | 75W | No | - | 15pF @ 1MHz | - | Automotive | AEC-Q101 | Surface Mount | 0402C/SOD-923F |
|
|
STS321050U182TVS DIODE 5VWM 15VC SOD323 |
422 |
|
Datasheet |
SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 22A (8/20µs) | 350W | No | General Purpose | 180pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ8.0CA-13-FTVS DIODE 8VWM 13.6VC SMA |
359 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 29.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
PTVS9V0S1UR,115TVS DIODE 9VWM 15.4VC SOD123W |
470 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 26A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
824520141TVS DIODE 14VWM 23.2VC DO214AA |
1,720 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 14V (Max) | 16.4V (Typ) | 23.2V | 25.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824521101TVS DIODE 10VWM 17VC DO214AA |
1,495 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 10V (Max) | 11.7V (Typ) | 17V | 35.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824521111TVS DIODE 11VWM 18.2VC DO214AA |
1,386 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 11V (Max) | 12.85V (Typ) | 18.2V | 33A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824521241TVS DIODE 24VWM 38.9VC DO214AA |
1,321 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 28.1V (Typ) | 38.9V | 15.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
