TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMLJ33CA-TPTVS DIODE 33VWM 53.3VC DO214AB |
731 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 56.2A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1N6284A-E3/73TVS DIODE 30.8VWM 49.9VC 1.5KE |
1,991 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Cut Tape (CT) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
TPSMD30CATVS DIODE 30VWM 48.4VC DO214AB |
3,410 |
|
Datasheet |
DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
SMDA05LCCTVS DIODE 5VWM 9.8VC 8-SO |
3,422 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5V (Max) | 6V | 9.8V | 1A | 300W | No | Ethernet | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SM6T68AYTVS DIODE 58.1VWM 92VC SMB |
2,477 |
|
Datasheet |
DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 58.1V | 64.6V | 92V | 6.5A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
BZW50-150TVS DIODE 150VWM 343VC R6 |
149 |
|
Datasheet |
R-6, Axial | BZW50, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 150V | 166V | 343V | 175A (8/20µs) | 5000W (5kW) | No | General Purpose | 1700pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
|
BZW50-22TVS DIODE 22VWM 51VC R6 |
196 |
|
Datasheet |
R-6, Axial | BZW50, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 22V | 24.4V | 51V | 1177A (1.177kA) (8/20µs) | 5000W (5kW) | No | General Purpose | 8500pF @ 1MHz | - | - | - | Through Hole | R-6 |
|
SM8S16AHE3_A/ITVS DIODE 16VWM 26VC DO218AB |
2,558 |
|
Datasheet |
DO-218AB | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 254A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
15KPA17ATVS DIODE 17VWM 29.3VC P600 |
1,803 |
|
Datasheet |
P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.99V | 29.3V | 515.4A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
JANTX1N6466USTVS DIODE 30.5VWM 47.5VC |
4,982 |
|
Datasheet |
E-MELF | - | Bulk | Active | Zener | 1 | - | 30.5V | 33V | 47.5V | 63A (8/20µs) | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/551 | Surface Mount | - |
|
AK3-030CTVS DIODE 30VWM 90VC AXIAL |
3,098 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3 | Bulk | Active | Zener | - | 1 | 30V | 32V | 90V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 11000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
20KPA36CATVS DIODE 36VWM 61.5VC P600 |
2,227 |
|
Datasheet |
P600, Axial | 20KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40.2V | 61.5V | 328.5A | 20000W (20kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
1N5645ATVS DIODE 28.2VWM 45.7VC DO13 |
2,116 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 33A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
|
30KPA60ATVS DIODE 60VWM 102VC P600 |
3,799 |
|
Datasheet |
P600, Axial | 30KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 67V | 102V | 297.1A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|

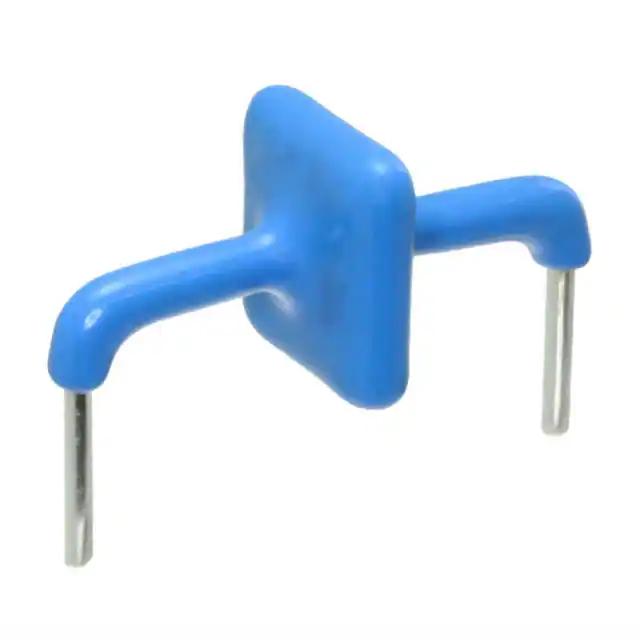

AK1E-380CTVS DIODE 380VWM 520VC AXIAL |
1,994 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK1E | Bulk | Active | Zener | - | 1 | 380V | 401V | 520V | 1000A (1kA) (8/20µs) | - | No | Telecom | - | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
1N5648ATVS DIODE 36.8VWM 59.3VC DO13 |
1,113 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 25.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
PTVS3-058C-SHTVS DIODE 58VWM 110VC SMD |
3,665 |
|
Datasheet |
2-SMD | PTVS | Tray | Active | Zener | - | 1 | 58V (Max) | 64V | 110V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 2300pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SMD |
|
|
MRT100KP48CATVS DIODE 48VWM 94.3VC CASE 5A |
100 |
|
Datasheet |
DO-204AR, Axial | - | Bulk | Active | Zener | - | 1 | 48V | 53.3V | 94.3V | - | 100000W (100kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | Case 5A (DO-204AR) |
|
AK10-033C-YTVS DIODE 33VWM 53VC AXIAL |
4,015 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK10-Y | Tray | Active | Zener | - | 1 | 33V | 36V | 53V | 10000A (10kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|

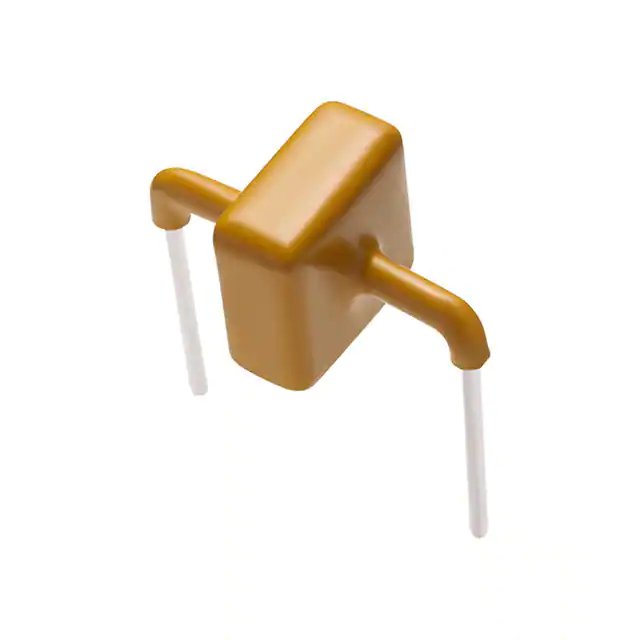

AK1-430C-YTVS DIODE 430VWM 625VC AXIAL |
4,778 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK1-Y | Bulk | Active | Zener | - | 1 | 430V | 440V | 625V | 1000A (1kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
