TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE6.8A-TPTVS DIODE 5.8VWM 10.5VC DO15 |
821 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
SMAJ78A-E3/61TVS DIODE 78VWM 126VC DO214AC |
669 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PHDMI2FR4ZTVS DIODE 3VC DFN2510A-10 |
285 |
|
Datasheet |
10-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | - | 6V | 3V (Typ) | 7A (8/20µs) | - | No | General Purpose | 0.34pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2510A-10 |
|
SMAJ170ATVS DIODE 170VWM 275VC DO214AC |
310 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 1.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SL12T1GTVS DIODE 12VWM 24VC SOT23-3 |
145 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 300W | No | - | 3.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
;;2.jpg)
|
SMBJ188CA-E3/52TVS DIODE 188VWM 328VC DO214AA |
1,126 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 188V | 209V | 328V | 2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
DUP3105SOQ-7TVS DIODE 32VWM 66VC SOT23 T&R |
819 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 32V (Max) | 35.6V | 66V | 8A | 350W | No | - | 30pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SMAJ54CA/TR7SMAJ DO214AC, BIDIRECTIONAL 54V |
688 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 4.6A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SZNUP1105LT1GTVS DIODE 24VWM 44VC SOT23 |
339 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Min) | 25.7V | 44V | 8A (8/20µs) | 350W | No | - | 60pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
P6SMB56A-E3/52TVS DIODE 47.8VWM 77VC DO214AA |
1,367 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 7.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB160A-E3/52TVS DIODE 136VWM 219VC DO214AA |
1,233 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 136V | 152V | 219V | 2.7A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ7.5A-E3/52TVS DIODE 7.5VWM 12.9VC DO214AA |
770 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMB100A-E3/52TVS DIODE 85.5VWM 137VC DO214AA |
539 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
DT1240E-04LP-7TVS DIODE 3.3VWM 9.5VC 10DFN |
477 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 5V | 9.5V | 5A (8/20µs) | 47W | Yes | - | 0.55pF @ 1MHz | -55°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | U-DFN2510-10 |
|
|
P6SMB68A-E3/52TVS DIODE 58.1VWM 92VC DO214AA |
346 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 58.1V | 64.6V | 92V | 6.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
824521481TVS DIODE 48VWM 77.4VC DO214AA |
313 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 48V (Max) | 56.1V | 77.4V | 7.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TA) | - | - | Surface Mount | DO-214AA |
|
|
SMBJ130A-E3/52TVS DIODE 130VWM 209VC DO214AA |
259 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6KE180A-TPTVS DIODE 154VWM 246VC DO15 |
232 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 154V | 171V | 246V | 2.4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|

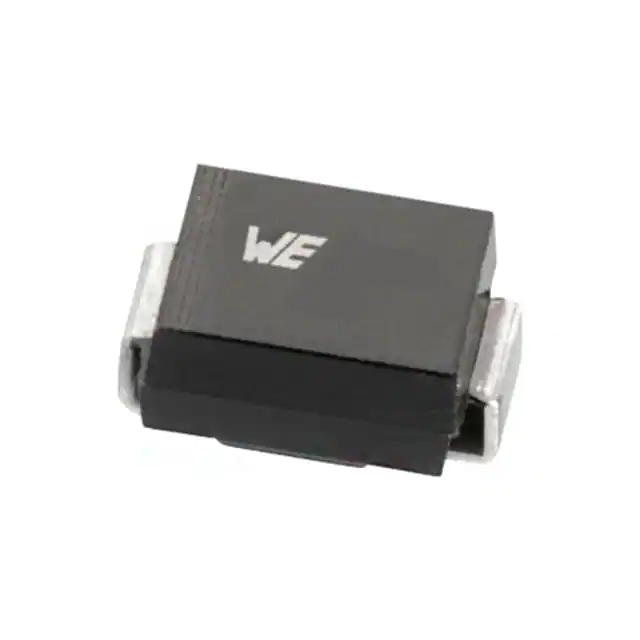

824520181TVS DIODE 18VWM 29.2VC DO214AA |
720 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 21.05V | 29.2V | 20.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TA) | - | - | Surface Mount | DO-214AA |
|
|
SMBJ5.0CA-E3/5BTVS DIODE 5VWM 9.2VC DO214AA |
681 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
