TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCE12ATVS DIODE 12VWM 19.9VC DO201 |
395 |
|
Datasheet |
DO-201AA, DO-27, Axial | LCE | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 75A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SP3003-04XTGTVS DIODE 6VWM 15VC SOT563 |
158 |
|
Datasheet |
SOT-563, SOT-666 | SP3003, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 15V | 2.5A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|

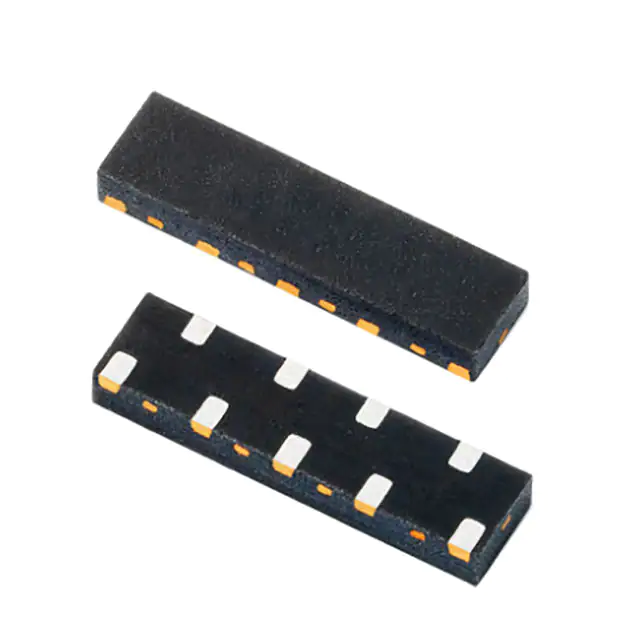

SC7520-08UTG3.3V 6A 12KV DFN3810-9L DIODES A |
526 |
|
Datasheet |
9-UDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 6.5V | 6V | 6A (8/20µs) | - | No | Telecom, USB | 0.32pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 9-µDFN (3.8x1) |
|
1.5KE6V8ATVS DIODE 5.8VWM 13.4VC DO201 |
1,151 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 5.8V | 6.45V | 13.4V | 746A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 9500pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SM15T39CA-E3/57TTVS DIODE 33.3VWM 53.9VC DO214AB |
285 |
|
Datasheet |
DO-214AB, SMC | SM15T, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
5.0SMDJ33CA/TR13TVS DIODE 33VWM 53.3VC DO214AB |
582 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
824541301TVS DIODE 30VWM 48.4VC DO214AB |
501 |
|
Datasheet |
DO-214AB, SMC | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 30V (Max) | 35.05V (Typ) | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
1.5KE350ATVS DIODE 299VWM 618VC DO201 |
1,552 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 299V | 332V | 618V | 16A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 430pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
824094024TVS DIODE BIDIR 24V SOT23-3 |
719 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | WE-TVS | Tape & Reel (TR) | Active | Zener | - | 2 | - | 26.2V | 31V (Typ) | 6A (8/20µs) | - | No | General Purpose | 38pF @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
TPSMC36ATVS DIODE 30.8VWM 49.9VC DO214AB |
650 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
LNBTVS4-222STVS DIODE 20VWM 30VC SMC |
791 |
|
Datasheet |
DO-214AB, SMC | LNBTVS, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22V | 30V | 334A (8/20µs) | 22500W (22.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1.5KE150CATVS D5.4X7.5 128V 1500W BIDIR |
724 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 128V | 143V | 207V | 7.2A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
SMC5K58A-M3/ITVS DIODE 58VWM 93.6VC DO214AB |
710 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 53.4A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SZ1.5SMC15AT3GTVS DIODE 12.8VWM 21.2VC SMC |
666 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 71A | 1500W (1.5kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
1.5KE600ATVS DIODE 512VWM 828VC DO201 |
1,720 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 512V | 570V | 828V | 1.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
|
1.5KE220ATVS D5.4X7.5 185V 1500W UNIDIR |
927 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 185V | 209V | 328V | 4.6A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
1.5SMBJ48CADIO TVS VRWM 48V 1500W BIDIR SMB |
527 |
|
Datasheet |
DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 19.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMC5K30A-M3/HTVS DIODE 30VWM 48.4VC DO214AB |
307 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMDJ14ATVS DIODE 14VWM 23.2VC DO214AB |
228 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 129.31A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5KE130CATVS D5.4X7.5 111V 1500W BIDIR |
808 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 111V | 124V | 179V | 8.4A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
