TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF70CA-TPTVS DIODE 70VWM 113VC SOD123FL |
878 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 1.5A | 200W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
TPD4E002DRLRTVS DIODE 3VWM SOT5 |
619 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3V | 6.1V | - | - | 35W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5 |
|
AQ24C-01FTGTVS DIODE 24VWM 42VC SOD323 |
857 |
|
Datasheet |
SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | - | 42V | 7A (8/20µs) | 450W | No | CAN | 50pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMBJ5.0CA-TRTVS DIODE 5VWM 9.2VC SMB |
488 |
|
Datasheet |
DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 68A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMF10CATVS SOD123FL 10V 200W BIDIR |
442 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 11.8A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
P6KE22ATVS DO15 18.8V 600W UNIDIR |
293 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 20A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
TPSMA6L18ATVS SMAF 18V 600W UNIDIR |
141 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 20.6A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
PESD4USB5U-TBSXTVS DIODE 5VWM 3.5VC DFN2510D-10 |
725 |
|
Datasheet |
10-WFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 3.5V (Typ) | 7A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN2510D-10 |
|
PTVS6V0P1UTP,115TVS DIODE 6VWM 10.3VC SOD128 |
869 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
|
PTVS26VP1UP,115TVS DIODE 26VWM 42.1VC SOD128 |
791 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.3A | 600W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
P6SMB15ATVS DIODE 12.8VWM 21.2VC DO214AA |
668 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 28.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
AQ4021-01FTGTVS DIODE 5VWM 20.5VC SOD323 |
579 |
|
Datasheet |
SC-76, SOD-323 | AQ4021, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.3V | 20.5V (Typ) | 25A (8/20µs) | 500W | No | CAN, Ethernet, USB | 2.5pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
PTVS58VP1UTP,115TVS DIODE 58VWM 93.6VC SOD128 |
367 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
TPSMF4L6.0ATVS DIODE 6VWM 10.3VC SOD123FL |
163 |
|
Datasheet |
SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 35.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
;;2.jpg)
|
TP6KE47ATVS DIODE 40.2VWM 64.8VC DO204AC |
591 |
|
Datasheet |
DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 9.4A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
|
P6KE6V8ATVS DIODE 5.8VWM 13.4VC DO15 |
1,630 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 5.8V | 6.45V | 13.4V | 298A (8/20µs) | 600W | No | General Purpose | 4000pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
SZSMF4L33CAT3GZEN TVS 400W 33V BI SOD-123FL TR |
133 |
|
Datasheet |
SOD-123F | SZSMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
SMCJ36CAHE3_A/HTVS DIODE 36VWM 58.1VC DO214AB |
1,216 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|

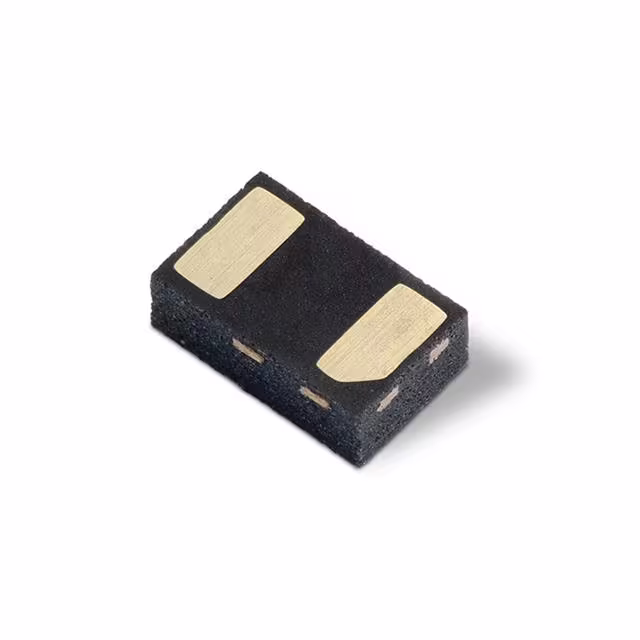

SC1103C-01UTGTVS DIODE 3.3V 80A DFN1610-2L |
3,000 |
|
Datasheet |
0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.4V | 9V (Typ) | 80A (8/20µs) | 720W | No | General Purpose | 130pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
CDSOD323-T18TVS DIODE 18VWM 45VC SOD323 |
4,592 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 45V (Typ) | 8A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
