Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30142998PUSHBUTTON. BLUE |
3,934 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142973PUSHBUTTON. GREEN |
2,004 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30144184PUSHBUTTON. YELLOW |
1,221 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143026PUSHBUTTON. WHITE |
3,093 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
XB4BA921MANUAL OVERLOAD RESET PUSH BUTTO |
2,800 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Black | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

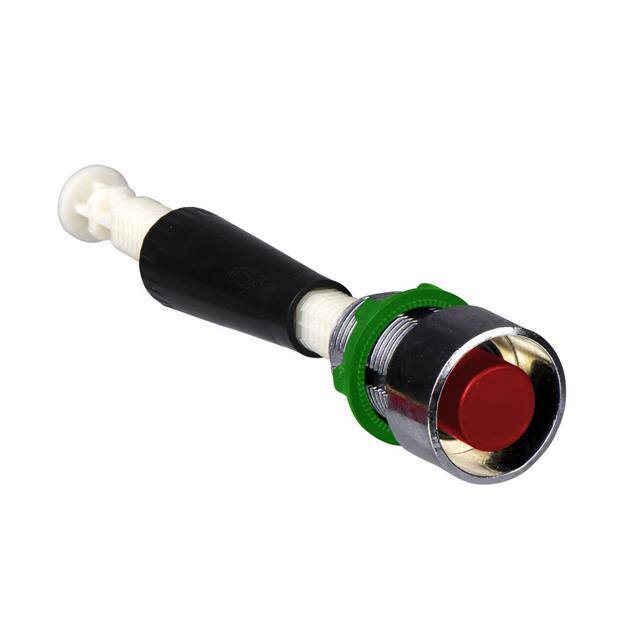

XB4BA941HARMONY XB4, PUSH BUTTON RESET, |
3,724 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
1241.6833.1121000MSM22 SWITCH LA NO DPST 12A PI 0 |
1,219 |
|
Datasheet |
MSM | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC) | 250 V | - | Round, Button | - | Silver | LED, Red | 1.9 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
|
1241.6833.1122000MSM22 SWITCH LA NO DPST 12A PI 0 |
1,923 |
|
Datasheet |
MSM | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC) | 250 V | - | Round, Button | - | Silver | LED, Green | 2.4 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
|
HA1L-A3C18V-W16MM PUSHBUTTON ILLUMINATED |
4,961 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, White | 120 VAC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
AH1LGSG24WA1SWITCH PB SPST NO + SPST NC 20A |
2,036 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSR6WA1SWITCH PB SPST NO + SPST NC 20A |
2,297 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSR12WA1SWITCH PB SPST NO + SPST NC 20A |
4,376 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSG220WA1SWITCH PB SPST NO + SPST NC 20A |
1,991 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 220 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSR110WA1SWITCH PB SPST NO + SPST NC 20A |
3,829 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 110 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSG110WA1SWITCH PB SPST NO + SPST NC 20A |
4,172 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 110 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSG12WA1SWITCH PB SPST NO + SPST NC 20A |
4,375 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSR24WA1SWITCH PB SPST NO + SPST NC 20A |
4,356 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSB24WA1SWITCH PB SPST NO + SPST NC 20A |
3,658 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSG6WA1SWITCH PB SPST NO + SPST NC 20A |
4,223 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LGSB6WA1SWITCH PB SPST NO + SPST NC 20A |
1,142 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
