Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA30798/YW-FT1COAX CBL BNC TO HD-BNC |
2,249 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -20°C ~ 75°C | - | - |
|
|
LCCA30798/VL-FT1COAX CBL BNC TO HD-BNC |
2,874 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -20°C ~ 75°C | - | - |
|
|
LCCA30704-FT6COAX CBL N-TYPE TO TNC |
2,622 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30689-FT3COAX CBL BNC TO N-TYPE |
3,491 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30687-FT3COAX CBL BNC TO N-TYPE |
4,587 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30674-FT6COAX CBL N-TYPE TO N-TYPE |
3,462 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
CCS188A-1.5COAX CBL SMA TO SMA |
2,551 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-188A | 50 Ohms | - | - | - | Black | - | - | - | - |
|
|
CC174-MF-3COAX CBL BNC TO BNC |
1,368 |
|
- |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
IJ5C-02-0150-S-D-NUS-2COAX CBL IJ5C TO IJ5C |
2,186 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|

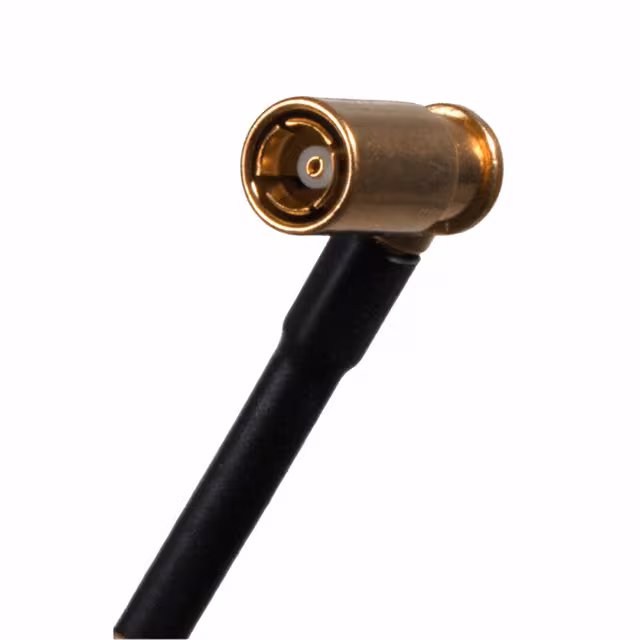

415-0006-036COAX CBL SMB TO SMB |
1,829 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
135104-07-06.00COAX CBL SMA TO SMA |
1,589 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
095-850-165-120COAX CBL BNC TO BNC |
1,455 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 102.0" (2.6m) 8.5' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-902-476-024COAX CBL SMA TO SMA |
1,511 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-900-551M100COAX CBL MCX TO MCX |
2,189 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
5-1393667-0RF CABLES |
1,412 |
|
Datasheet |
- | Bulk | Active | - | - | - | Free Hanging (In-Line) | - | - | - | Free Hanging (In-Line) | - | - | - | - | - | - | - | - | - | - | - | - |
|

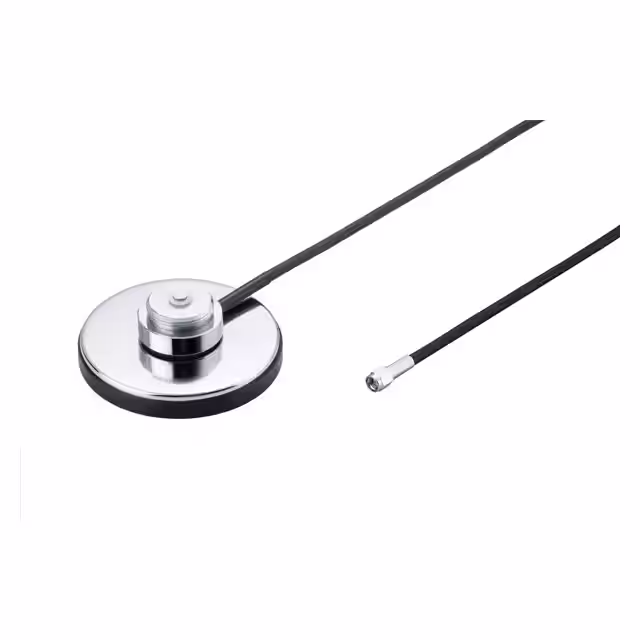

CAB.W10COAX CBL NMO TO SMA |
3,496 |
|
Datasheet |
- | Bag | Active | NMO to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | NMO | Non-Gendered | Panel Mount | Magnet Mount | 204.0" (5.2m) 17.0' | RG-58 | 50 Ohms | - | 53 Ohms | - | Black | Shielded | - | - | - |
|

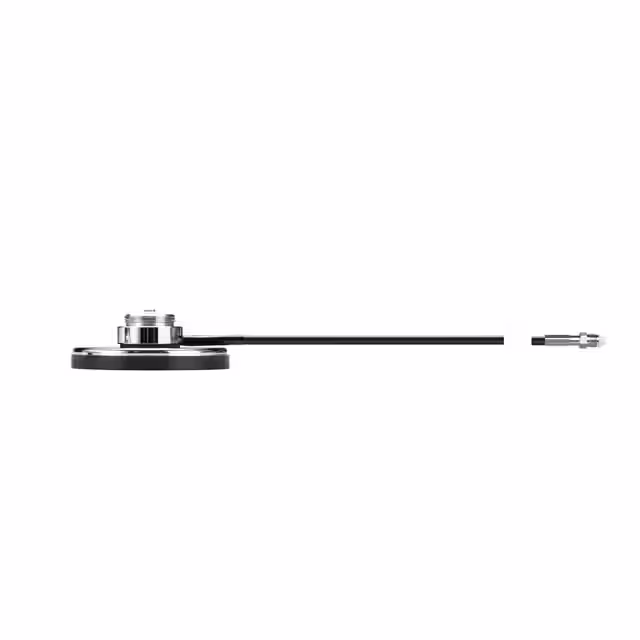

CAB.W13COAX CBL NMO TO FME |
4,242 |
|
Datasheet |
- | Bag | Active | NMO to FME | NMO | Non-Gendered | Panel Mount | Magnet Mount | FME Jack | Female | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | RG-58 | 50 Ohms | - | 53 Ohms | - | Black | Shielded | - | - | - |
|
|
CBL-195-40FT-S2-S2COAX CBL RP-SMA TO RP-SMA |
1,725 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 480.0" (12.2m) 40.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CA-SNPTFBCN19COAX CBL SMA TO TNC |
2,900 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.000" (482.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CC59A-1HRCOAX CBL BNC TO BNC |
4,324 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59A | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
