Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-240-6FT-N9-N9COAX CBL N-TYPE TO N-TYPE |
3,177 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
095-850-300-018COAX CBL HD-BNC TO HD-BNC |
3,112 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Belden 4855R | - | 75 Ohms | 75 Ohms | 12 GHz | Black | - | - | - | - |
|

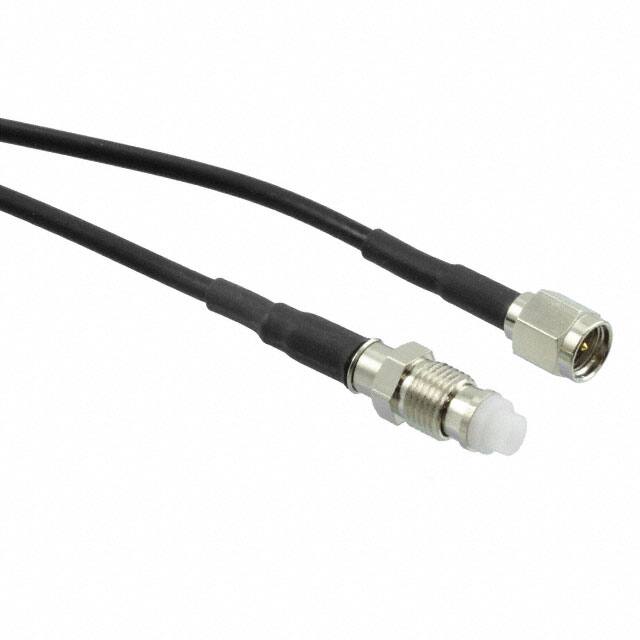

ASMA300F174L13COAX CBL SMA TO FME |
1,027 |
|
Datasheet |
- | Bulk | Obsolete | SMA to FME | SMA Plug | Male | Free Hanging (In-Line) | - | FME Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LLC100A | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

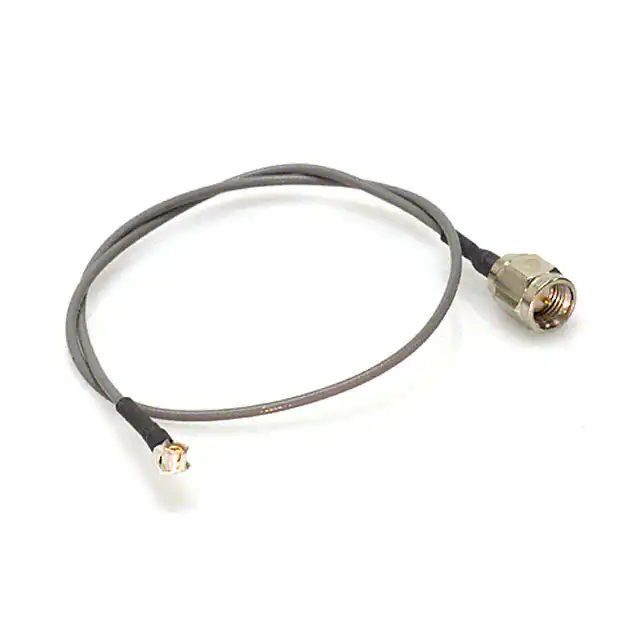

2192-12COAX CBL SMA TO S.FL2 |
4,362 |
|
- |
- | Bulk | Active | SMA to S.FL2 | SMA Plug | Male | Free Hanging (In-Line) | - | S.FL2 Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.27mm OD Coaxial Cable | - | - | - | - | Gray | Shielded | - | - | - |
|
|
CA-NMNMA010COAX CBL N-TYPE TO N-TYPE |
2,803 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
415-0527-MM250COAX CBL SMPM TO SMPM |
1,934 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.086" Flexible Cable | - | - | - | 40 GHz | Blue | - | - | - | - |
|
095-725-119M020COAX CBL SMP TO SMP |
4,262 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-269-180COAX CBL BNC TO BNC |
2,510 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
|
CBL-195-12M-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,762 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 472.4" (12.0m) 39.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CCTN58-5HRBCOAX CBL BNC TO BNC |
1,280 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | Gray | - | - | - | - |
|
|
095-850-162M100COAX CBL BNC TO HD-BNC |
1,114 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-725-119-008COAX CBL SMP TO SMP |
4,730 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
415-0062-036COAX CBL N-TYPE TO N-TYPE |
3,310 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-8 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
095-850-237M200COAX CBL BNC TO SMB |
1,362 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
CA-RSPRTPCN19COAX CBL RP-SMA TO RP-TNC |
3,878 |
|
- |
- | Bag | Active | RP-SMA to RP-TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 19.000" (482.60mm) | LMR 100 | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-241-2FT-N1-Q12 FT 0 IN PFP240 ULTRAFLEX, N MA |
2,305 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-241-2FT-N4-Q12 FT 0 IN PFP240 ULTRAFLEX, N FE |
2,890 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCCA30798/RD-FT1COAX CBL BNC TO HD-BNC |
2,537 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
LCCA30798/GY-FT1COAX CBL BNC TO HD-BNC |
3,013 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
LCCA30798/OR-FT1COAX CBL BNC TO HD-BNC |
2,458 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
