Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-301M200COAX CBL BNC TO MMCX |
1,763 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
175106-07-06.00COAX CBL N-TYPE TO N-TYPE |
3,850 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
73071-X-24COAX CBL SMA TO SMA |
4,960 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
73072-VV-36COAX CBL SMB TO SMB |
4,251 |
|
Datasheet |
- | Bag | Active | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-179B | 75 Ohms | - | 75 Ohms | 2 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
73073-BB-36COAX CBL SMB TO SMB |
1,377 |
|
Datasheet |
- | Bag | Active | SMB to SMB | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
|
2483407-3CABLE ASSEMBLY HIGH-DENSITY BNC |
1,132 |
|
- |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
095-850-235-012COAX CBL TNC TO CABLE |
4,529 |
|
Datasheet |
- | Bag | Active | TNC to Cable | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 12.00" (304.80mm) | Hand Formable .085 | - | - | 50 Ohms | 11 GHz | Silver | - | - | - | - |
|
|
CO-316SMARSMA-004COAX CBL SMA TO SMA |
2,251 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Brown | - | 200°C | - | - |
|
095-850-237-072COAX CBL BNC TO SMB |
4,668 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
095-820-197-048COAX CBL RP-TNC TO FAKRA III |
3,587 |
|
Datasheet |
- | Bag | Active | RP-TNC to Fakra III | RP-TNC Plug | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-238-036COAX CBL BNC TO SMB |
2,931 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
CBL-142-3FT-N1-S13 FT 0 IN RG-142 CABLE, N MALE & |
2,893 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9202518R0743COAX CBL SMA TO SMA |
4,675 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 155°C | - | - | |
|
|
9202485R0710COAX CBL SMB TO SMB |
1,696 |
|
Datasheet |
COAX-CBL-PMN | Active | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - | |
|
|
RF058-06SP2-303030-1219COAX CBL N TYPE TO CABLE |
1,457 |
|
Datasheet |
RF058 | Bulk | Active | N Type to Cable | N Type Plug | Male | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
LCCA30668-FT1.5COAX CBL SMA TO N-TYPE |
1,197 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30682-FT1.5COAX CBL N-TYPE TO TNC |
4,616 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
135108-R1-10.00COAX CBL SMA TO SMA |
2,487 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .085 | - | - | 50 Ohms | - | - | - | - | - | - |
|
095-900-551-036COAX CBL MCX TO MCX |
1,590 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C | - | - |
|

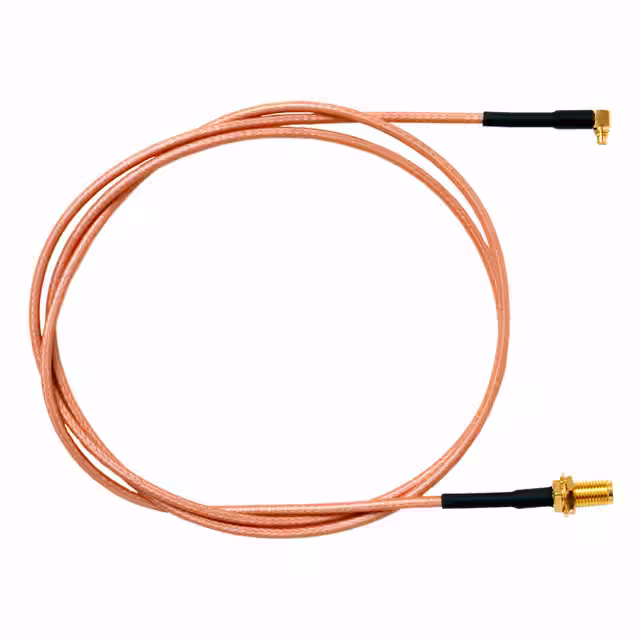

73066-BB-36COAX CBL SMA TO MMCX |
3,487 |
|
Datasheet |
- | Bag | Obsolete | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
