Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA2602/GR-12COAX CBL BNC TO HD-BNC |
1,809 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
FMCA2602/RD-12COAX CBL BNC TO HD-BNC |
2,296 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
FMC2626174-24COAX CBL SMB TO SMB |
1,051 |
|
- |
- | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
FMCA2602/YW-12COAX CBL BNC TO HD-BNC |
1,368 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|

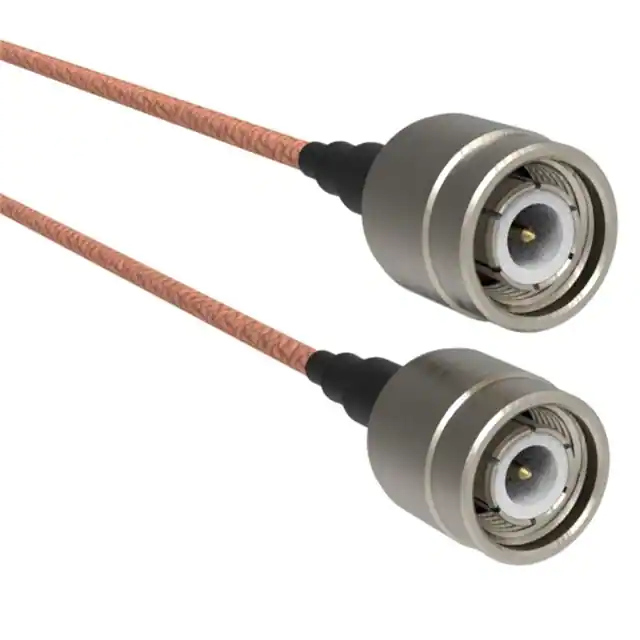

095-850-273M300COAX CBL TNC TO TNC |
2,689 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
095-902-475-018COAX CBL SMA TO SMA |
4,339 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

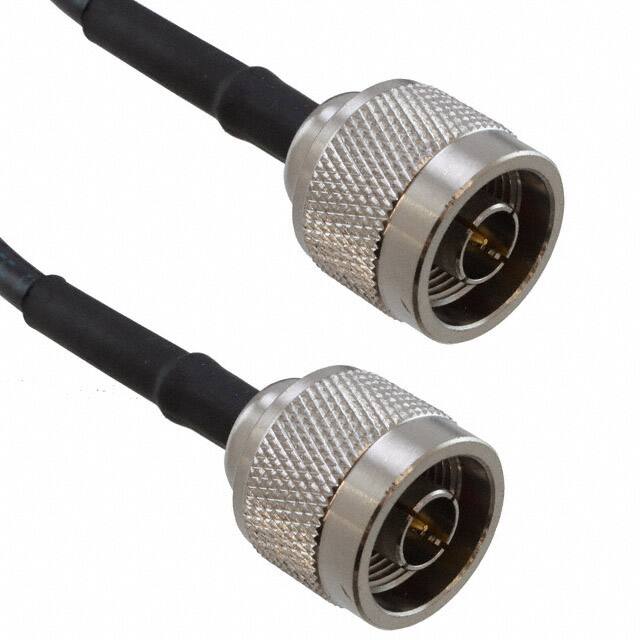

175101-19-36.00COAX CBL N-TYPE TO N-TYPE |
4,631 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
095-902-476-006COAX CBL SMA TO SMA |
1,138 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
175101-22-06.00COAX CBL N-TYPE TO N-TYPE |
2,795 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
095-850-131M025COAX CBL BNC TO HD-BNC |
1,564 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | 0°C ~ 50°C | - | - |
|
095-850-155M025COAX CBL 1.0/2.3 TO HD-BNC |
2,435 |
|
Datasheet |
- | Bulk | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-902-462-011COAX CBL SMA TO CABLE |
2,485 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 11.000" (279.40mm) | Micro Coaxial | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
095-850-252-012COAX CBL BNC TO BNC |
4,118 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
415-0044-024COAX CBL SMA TO SMA |
4,135 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
|
LCCA30699-FT1COAX CBL BNC TO N-TYPE |
3,323 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30668-FT4COAX CBL SMA TO N-TYPE |
3,210 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30682-FT3COAX CBL N-TYPE TO TNC |
1,083 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30682-FT4COAX CBL N-TYPE TO TNC |
2,785 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
FMCA1017-12COAX CBL RP-SMA TO UMCX |
1,677 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
095-725-120M010COAX CBL SMP TO SMP |
3,029 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
