Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-314-150COAX CBL MHF1 LK TO RP-TNC |
1,296 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-311-200COAX CBL MHF1 LK TO TNC |
4,161 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
2483417-1CABLE ASSEMBLY BNC JACK STRAIGHT |
3,918 |
|
- |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | - | - | - | 75 Ohms | 4 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
CBL-400-1FT-S2-T5COAX CBL RP-SMA TO RP-TNC |
2,107 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-1FT-N1-N3COAX CBL N-TYPE TO N-TYPE |
1,783 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-54-3M-S1-S4COAX CBL SMA TO SMA |
1,592 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-400-1FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
1,614 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
9202495R0720COAX CBL MMCX TO MMCX |
2,294 |
|
Datasheet |
COAX-CBL-PMN | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - | |
|

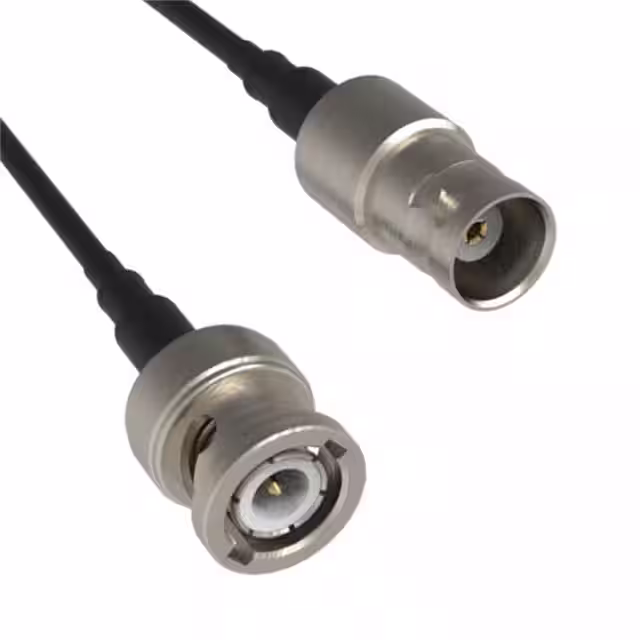

095-850-260M100COAX CBL BNC TO BNC |
1,628 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
095Z820-163-024COAX CBL SMA TO FAKRA III |
4,259 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CBL-195-79-S2-T59200 CM PFP 195, RP SMA MALE & RP |
3,410 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-195-79-T2-T59200 CM PFP 195, RP TNC MALE & RP |
3,276 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-195-79-S1-T59200 CM PFP 195, SMA MALE & RP TN |
1,151 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4189-06COAX CBL FL TO FL |
2,925 |
|
- |
- | Bulk | Active | FL to FL | FL Jack | Female | Free Hanging (In-Line) | - | FL Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | - | - | - | - | White | Shielded | - | - | - |
|
|
IJ5C-01-0300-S-D-NUS-2COAX CBL IJ5C TO IJ5C |
2,174 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
4524-C-24COAX CBL BNC TO BNC |
1,095 |
|
- |
- | - | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 50°C | - | - |
|
65530206515304COAX CBL RP-SMA TO MCX |
1,955 |
|
Datasheet |
WR-CXASY | Bag | Active | RP-SMA to MCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
415-0024-030COAX CBL MCX TO MCX |
1,489 |
|
Datasheet |
- | Bulk | Obsolete | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | Belden 735A | - | 75 Ohms | 75 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
CBL-400-13IN-N1-S4COAX CBL SMA TO N-TYPE |
4,580 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 13.00" (330.20mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
RPSMA10MF10FT WIRELESS ANTENNA ADAPTER |
1,433 |
|
- |
- | Active | RP-SMA to RP-SMA | RP-SMA Jack | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-174 | 50 Ohms | - | - | - | Black | - | - | - | - |
