Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0022-006COAX CBL MCX TO MCX |
3,274 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
PE3CA1023-12COAX CBL SMA TO UMCX |
2,483 |
|
Datasheet |
- | Retail Package | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
0732307112CASMA J STR BH TO SMA P RARG316D |
3,566 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
255101-08-M1.00COAX CBL MCX TO MCX |
3,009 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-850-310-150COAX CBL MHF1 LK TO TNC |
3,348 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-315-150COAX CBL MHF1 LK TO RP-TNC |
2,714 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
CBL-02-5FT-S2-S5COAX CBL RP-SMA TO RP-SMA |
2,523 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0016-018COAX CBL MCX TO MCX |
3,477 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
415-0024-024COAX CBL MCX TO MCX |
4,817 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 735A | - | 75 Ohms | 75 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
CCF6-1COAX CBL F-TYPE TO F-TYPE |
4,651 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-6 | 75 Ohms | - | - | - | Black | - | - | - | - |
|

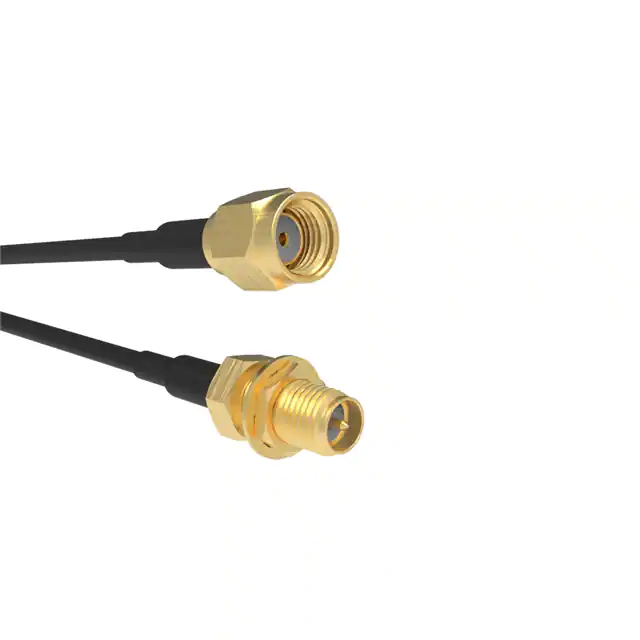

095-902-536-018COAX CBL RP-SMA TO RP-SMA |
3,808 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
095Z820-166-036COAX CBL SMA TO FAKRA II |
4,086 |
|
Datasheet |
- | Bag | Active | SMA to Fakra II | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CBL-195-5M-T1-T1COAX CBL TNC TO TNC |
4,007 |
|
Datasheet |
CBL | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-5M-S2-S4COAX CBL RP-SMA TO SMA |
2,779 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-5FT-N1-S1COAX CBL SMA TO N-TYPE |
4,874 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-5FT-N1-S4COAX CBL SMA TO N-TYPE |
3,033 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-5FT-N9-S1COAX CBL SMA TO N-TYPE |
3,544 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-5FT-S1-S1COAX CBL SMA TO SMA |
3,620 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-5FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,467 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-5FT-N3-N3COAX CBL N-TYPE TO N-TYPE |
4,479 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
