Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RF174-01SP1-01SP1-0500COAX CBL SMA TO SMA |
3,575 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
CBL-62-19.5IN-S1-S31FT 7.5IN RG316, SMA MALE & SMA |
4,982 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0732307052CA TYPE N J STR TO SMA P STRRG58 |
1,188 |
|
- |
73230 | Bulk | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
415-0016-024COAX CBL MCX TO MCX |
1,991 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
095-850-313-150COAX CBL MHF1 LK TO RP-TNC |
1,392 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
RF058-05SR3-SING-0500COAX CBL RP-TNC TO CABLE |
3,987 |
|
Datasheet |
RF058 | Bulk | Active | RP-TNC to Cable | RP-TNC Plug | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
CO-174RASMAX2-005COAX CBL SMA TO SMA |
2,759 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
CT2417-100-2COAX CBL BNC TO BNC |
4,835 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 2 GHz | Red | - | 0°C ~ 50°C | - | - |
|
CT2417-100-4COAX CBL BNC TO BNC |
2,899 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 2 GHz | Yellow | - | 0°C ~ 50°C | - | - |
|
CT2417-100-5COAX CBL BNC TO BNC |
2,992 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 2 GHz | Green | - | 0°C ~ 50°C | - | - |
|

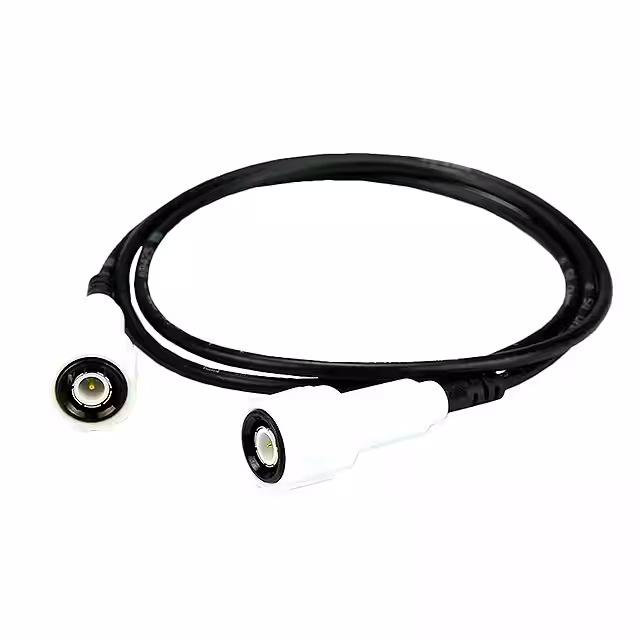

CT2417-100-9COAX CBL BNC TO BNC |
1,264 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 2 GHz | White | - | 0°C ~ 50°C | - | - |
|
|
CBL-400-16IN-S4-T1COAX CBL SMA TO TNC |
4,344 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
336503-08-0150COAX CBL U.FL AMC TO MCX |
4,928 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
CO-174SMAZBNC-007.5COAX CBL BNC TO SMA |
2,609 |
|
- |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CO-058BNCRBNC-010COAX CBL BNC TO BNC |
1,263 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-14-10FT-N1-N110FT 0 IN PRO FLEX PLUS 195 WHIT |
1,488 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
336503-08-0200COAX CBL U.FL AMC TO MCX |
2,649 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
CA-FJFJ-ZZ00120COAX CBL FAKRA TO FAKRA |
3,784 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-178 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 105°C | - | - |
|
|
CBL-195-18FT-N1-S1COAX CBL SMA TO N-TYPE |
1,973 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 216.0" (5.5m) 18.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-850-265-018COAX CBL BNC TO BNC |
1,513 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
