Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-311-150COAX CBL MHF1 LK TO TNC |
3,500 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|

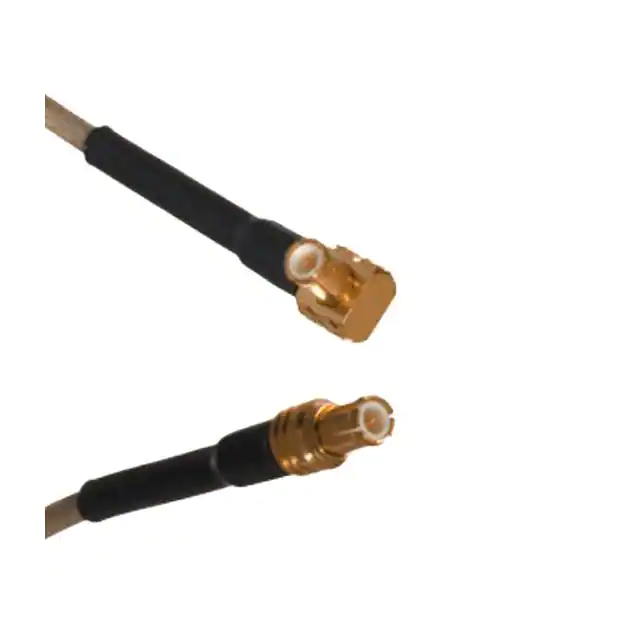

415-0017-036COAX CBL MCX TO MCX |
2,752 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
145101-01-18.00COAX CBL SMB TO SMB |
2,264 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-700-37-M050COAX CBL SMB TO SMB |
2,064 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PT81-67NNCOAX CBL N-TYPE TO N-TYPE |
2,529 |
|
- |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | - | RG-58A | - | - | - | - | - | - | - | - | - |
|
095-850-289-250COAX CBL RP-TNC TO AMC4 |
1,451 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
245110-08-06.00COAX CBL SMA TO MMCX |
2,670 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | - | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
CBL-195-16FT-S2-T1COAX CBL RP-SMA TO TNC |
3,997 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 192.0" (4.9m) 16.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-16FT-S3-T1COAX CBL SMA TO TNC |
2,974 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 192.0" (4.9m) 16.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-62-14IN-S1-S314IN RG316, SMA MALE & SMA R/A M |
1,881 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-195-16FT-S1-S5COAX CBL RP-SMA TO SMA |
3,484 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 192.0" (4.9m) 16.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-16FT-S1-T1COAX CBL SMA TO TNC |
2,777 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 192.0" (4.9m) 16.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-16FT-N1-S5COAX CBL RP-SMA TO N-TYPE |
2,436 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 192.0" (4.9m) 16.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
135103-02-48.00COAX CBL SMA TO SMA |
2,846 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Shielded | - | - | - |
|
|
CO-058RABNCX2-001COAX CBL BNC TO BNC |
1,924 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CC58C-2HRCOAX CBL BNC TO BNC |
4,083 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
CCF6-6COAX CBL F-TYPE TO F-TYPE |
1,641 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-6 | 75 Ohms | - | - | - | Black | - | - | - | - |
|
|
CA-MCRTPCN19COAX CBL RP-TNC TO MC |
2,958 |
|
- |
- | Bag | Active | RP-TNC to MC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | MC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.000" (482.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CC59A-BF-6COAX CBL BNC TO F-TYPE |
4,866 |
|
Datasheet |
- | Bag | Active | BNC to F-Type | BNC Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
415-0011-024COAX CBL SMB MINI-SMB MINI |
2,459 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
