Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAB.V12COAX CBL NMO TO FME |
1,707 |
|
Datasheet |
- | Bag | Active | NMO to FME | NMO | Non-Gendered | Panel Mount | Direct Mount | FME Jack | Female | Free Hanging (In-Line) | - | 168.0" (4.3m) 14.0' | RG-58 | 50 Ohms | - | 53 Ohms | - | Black | Shielded | - | - | - |
|
115101-09-06.00COAX CBL BNC TO BNC |
3,670 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 1855A | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
|
CBL-12-18-N1-S1COAX CBL SMA TO N-TYPE |
4,230 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
0732307064CATYPE N P STR TO SMA P STR RG58 |
1,140 |
|
- |
73230 | Bulk | Active | SMA to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|

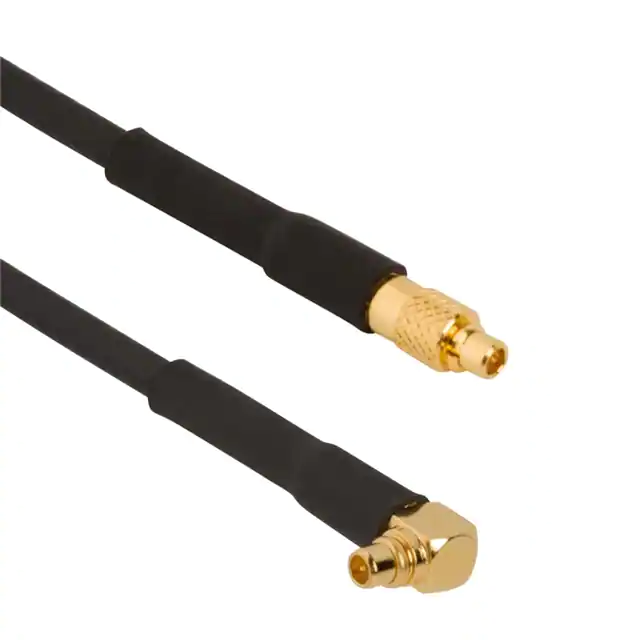

095-900-549M300COAX CBL MMCX TO MMCX |
4,010 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-850-309-250COAX CBL MHF1 LK TO TNC |
3,631 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
415-0074-048COAX CBL SMA TO SMA |
1,126 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
|
CBL-62-6IN-Z3-Z36 IN IN RG316, MALE RIGHT ANGLE |
1,736 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-266-018COAX CBL BNC TO BNC |
4,304 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
095-700-37-018COAX CBL SMB TO SMB |
3,311 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
2483396-3CABLE ASSEMBLY BNC PLUG STRAIGHT |
2,646 |
|
- |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 35.98" (914.00mm) | - | - | - | 75 Ohms | 4 GHz | Black | - | -30°C ~ 75°C | - | - |
|
135111-04-M0.25COAX CBL SMA TO SMA |
2,296 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095Z820-164-024COAX CBL SMA TO FAKRA II |
2,541 |
|
Datasheet |
- | Bag | Active | SMA to Fakra II | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CCTN58-7.5BCOAX CBL BNC TO BNC |
4,821 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | Gray | - | - | - | - |
|
|
FMCA1055-9COAX CBL UMCX TO UMCX |
3,479 |
|
- |
- | Bag | Active | UMCX to UMCX | UMCX Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
115103-04-M0.25COAX CBL BNC TO BNC |
1,934 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
|
R284F0807001R107301200C291170007R110083120 |
2,234 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CO-058SMABNC0-005COAX CBL BNC TO SMA |
4,368 |
|
- |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
255104-03-12.00COAX CBL MCX TO MCX |
2,137 |
|
Datasheet |
- | Box | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-850-314-100COAX CBL MHF1 LK TO RP-TNC |
4,582 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
