Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCF6-3COAX CBL F-TYPE TO F-TYPE |
1,997 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-6 | 75 Ohms | - | - | - | Black | - | - | - | - |
|
|
FMCA1026-9COAX CBL SMA TO UMCX |
3,966 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
FMCA1003-9COAX CBL SMA TO UMCX |
4,839 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
415-0016-MM250COAX CBL MCX TO MCX |
3,299 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
73066-BB-24COAX CBL SMA TO MMCX |
4,976 |
|
Datasheet |
- | Bag | Obsolete | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
73077-UU-24COAX CBL MMCX TO MMCX |
1,983 |
|
Datasheet |
- | Bag | Obsolete | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178B | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
|
CO-059BNCX200-007.5COAX CBL BNC TO BNC |
1,988 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
095-850-266-016COAX CBL BNC TO BNC |
2,990 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
095-850-314-050COAX CBL MHF1 LK TO RP-TNC |
3,989 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-311-100COAX CBL MHF1 LK TO TNC |
1,976 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
415-0007-006COAX CBL SMB TO SMB |
4,914 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - | - | - |
|
F6-50WCOAX CBL F-TYPE TO F-TYPE |
1,642 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | White | Shielded | - | - | - |
|
|
CO-058SMAX200-004COAX CBL SMA TO SMA |
4,468 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-700-37-M025COAX CBL SMB TO SMB |
4,414 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
415-0010-006COAX CBL SMB MINI-SMB MINI |
3,667 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
|
095-850-265-012COAX CBL BNC TO BNC |
4,095 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
CBL-60-12FT-N1-T1COAX CBL N-TYPE TO TNC |
4,475 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|

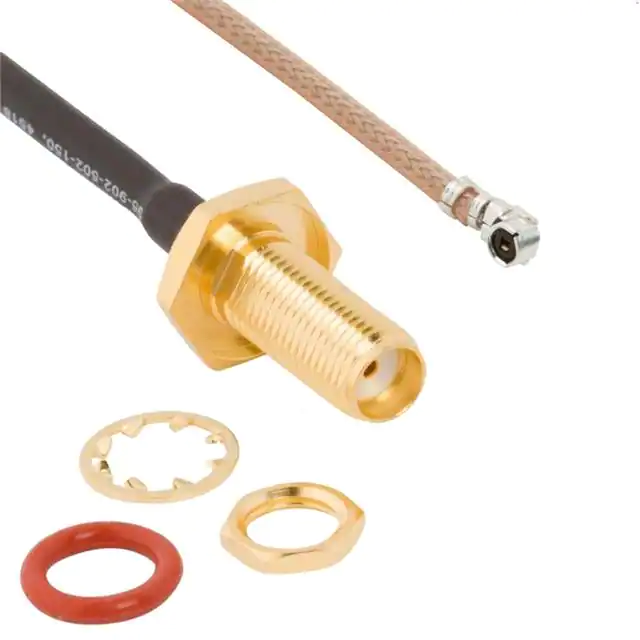

095-902-568-250COAX CBL U.FL AMC TO SMA |
1,089 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
115103-04-M0.10COAX CBL BNC TO BNC |
3,022 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-58 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
|
CBL-195-15FT-N1-S2COAX CBL RP-SMA TO N-TYPE |
2,843 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
