Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-275M025COAX CBL TNC TO TNC |
4,616 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
415-0016-MM150COAX CBL MCX TO MCX |
3,813 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
CBL-240-3FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
4,219 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-3FT-N1-T1COAX CBL N-TYPE TO TNC |
4,655 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-3FT-N1-S2COAX CBL RP-SMA TO N-TYPE |
1,618 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-3FT-S1-S1COAX CBL SMA TO SMA |
1,125 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-3FT-S1-S3COAX CBL SMA TO SMA |
3,771 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-3FT-N1-N3COAX CBL N-TYPE TO N-TYPE |
2,480 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-3FT-N1-S1COAX CBL SMA TO N-TYPE |
4,089 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
0897619020COAX CBL SMA TO SMA |
4,004 |
|
- |
89761 | Bulk | Active | SMA to SMA | SMA Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 31.00" (787.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
0732307113CASMA J STR BH TO SMA P RARG316D |
2,755 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-850-165M075COAX CBL BNC TO BNC |
4,762 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-902-492-300COAX CBL U.FL AMC TO SMA |
2,544 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack, Right Angle | Female | Panel Mount | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|

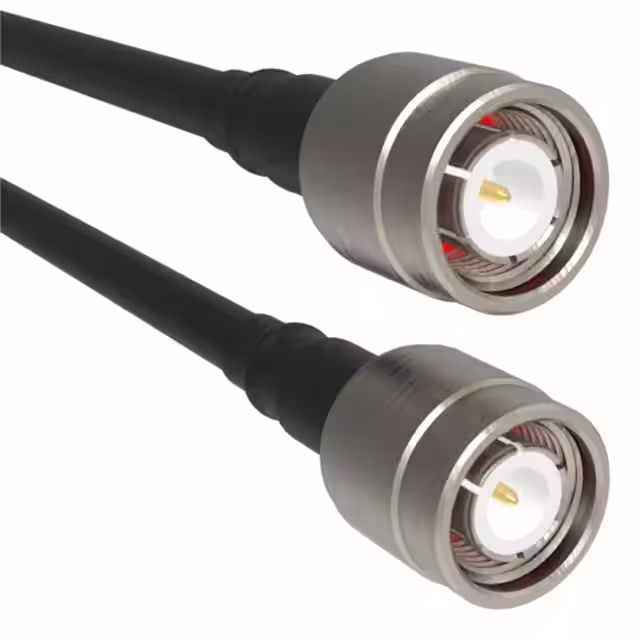

095-850-276-048COAX CBL TNC TO TNC |
1,437 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
415-0042-012COAX CBL BNC TO SMA |
2,553 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
|
CBL-INIT-241-1.5M-M1-N1INIT 240UF 1.5 M ASSY. MINI UHF |
3,452 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
415-0049-060COAX CBL BNC TO BNC |
4,604 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-850-315-050COAX CBL MHF1 LK TO RP-TNC |
3,666 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-310-050COAX CBL MHF1 LK TO TNC |
3,517 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
CBL-240-38IN-N1-S2COAX CBL RP-SMA TO N-TYPE |
1,589 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 38.00" (965.20mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
