Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095Z820-165-024COAX CBL SMA TO FAKRA III |
1,928 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
0732307051CA TYPE N J STR TO SMA P STRRG58 |
2,895 |
|
- |
73230 | Bulk | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
415-0049-036COAX CBL BNC TO BNC |
3,690 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PT85TBCOAX CBL BNC TO TNC |
4,765 |
|
- |
- | Bulk | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug | Male | - | - | 60.0" (1.5m) 5.0' | - | - | - | - | - | - | - | - | - | - |
|
|
PT8X1MNCOAX CBL N-TYPE TO UHF |
3,757 |
|
- |
- | Bulk | Active | N-Type to UHF | N-Type Plug | Male | - | - | UHF Plug | Male | - | - | 12.00" (304.80mm) | - | - | - | - | - | - | - | - | - | - |
|
|
FMCA2384-500CMCOAX CBL F-TYPE TO F-TYPE |
3,491 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | - | - | - | - | - | - | - | - | - | - |
|
|
CC59B-75COAX CBL BNC TO BNC |
1,182 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 900.0" (22.9m) 75.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
415-0024-006COAX CBL MCX TO MCX |
2,437 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 735A | - | 75 Ohms | 75 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
PTD0-67SMPCOAX CBL UHF TO CABLE |
3,639 |
|
Datasheet |
- | Bulk | Active | UHF to Cable | UHF Plug | Male | - | - | Cable (Round) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-288-250COAX CBL RP-TNC TO AMC4 |
1,884 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

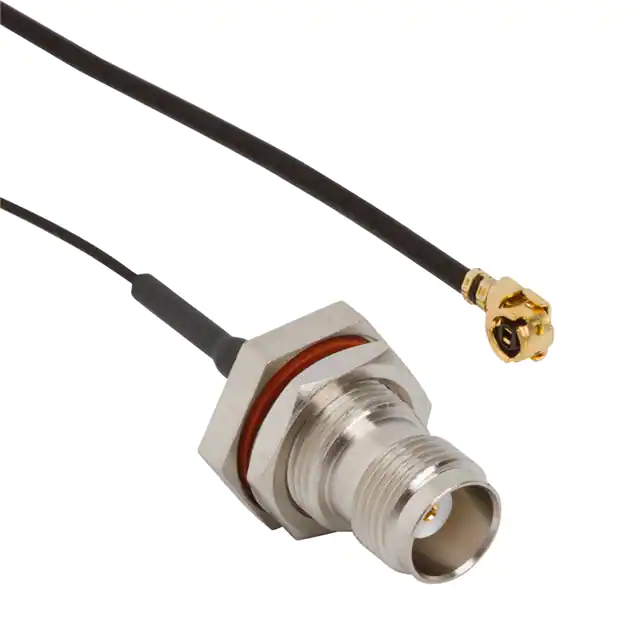

095-850-286-250COAX CBL AMC4 TO TNC |
1,506 |
|
- |
- | Bag | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CBL-60-3M-S2-T1COAX CBL RP-SMA TO TNC |
4,878 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-60-3M-N1-S1COAX CBL SMA TO N-TYPE |
2,873 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095Z820-163-018COAX CBL SMA TO FAKRA III |
2,733 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
095-850-260-018COAX CBL BNC TO BNC |
4,044 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
CBL-60-330CM-N1-S1COAX CBL SMA TO N-TYPE |
3,024 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 129.9" (3.3m) 10.8' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-12-7FT-S1-S9COAX CBL SMA TO SMA |
1,985 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-7FT-S4-S9COAX CBL SMA TO SMA |
3,856 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-7FT-T2-T5COAX CBL RP-TNC TO RP-TNC |
4,326 |
|
Datasheet |
CBL | Bulk | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-60-10FT-S1-T1COAX CBL SMA TO TNC |
1,060 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
