Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

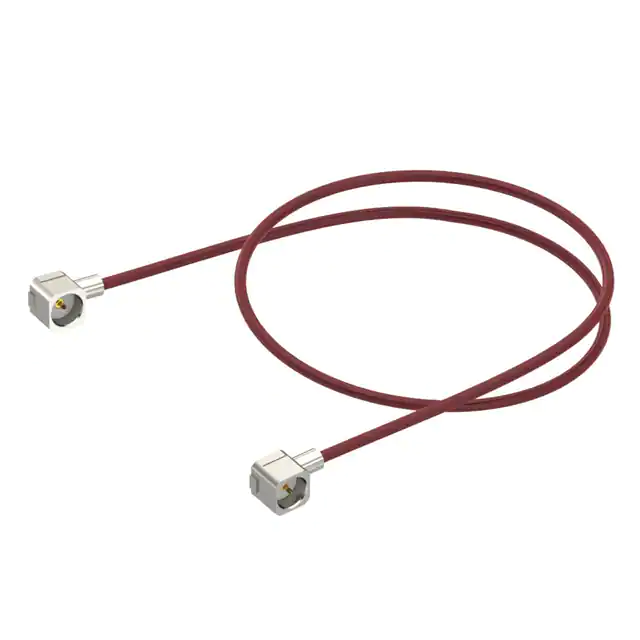

R285004221COAX CBL MMS TO MMS |
4,437 |
|
Datasheet |
- | Bulk | Active | MMS to MMS | MMS Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMS Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 80°C | - | - |
|
095-850-166M050COAX CBL BNC TO BNC |
3,239 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-850-260-012COAX CBL BNC TO BNC |
1,882 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
095-900-547-036COAX CBL MCX TO MCX |
2,697 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CC59B-2COAX CBL BNC TO BNC |
2,837 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CO-059BNCRBNC-001COAX CBL BNC TO BNC |
1,097 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
RFCBA241530AF6B601COAX CBL MMCX TO N-TYPE |
3,974 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | N-Type Jack | Female | Panel Mount | Flange | - | - | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
CA-FJFM-ZZ00220WPCOAX CBL FAKRA TO FAKRA |
3,578 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
115101-22-24.00COAX CBL BNC TO BNC |
4,968 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
255101-08-M0.75COAX CBL MCX TO MCX |
1,107 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-900-547M100COAX CBL MCX TO MCX |
1,631 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-902-573-200COAX CBL U.FL AMC TO RP-SMA |
3,836 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | - | - | - | - | - |
|
|
FMCA1000-3COAX CBL SMA TO UMCX |
1,289 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CBL-240-2FT-N1-S2COAX CBL RP-SMA TO N-TYPE |
1,934 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-2FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
4,806 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-2FT-N1-S1COAX CBL SMA TO N-TYPE |
1,229 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-2FT-N1-T2COAX CBL RP-TNC TO N-TYPE |
2,726 |
|
Datasheet |
CBL | Bulk | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
095-850-261M100COAX CBL BNC TO BNC |
4,946 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
095-850-266-012COAX CBL BNC TO BNC |
3,551 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
KSM-1193-12-SMAJCOAX CBL SMA TO H.FL |
1,916 |
|
Datasheet |
- | Bulk | Obsolete | SMA to H.FL | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.27mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | Shielded | - | - | - |
