Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135104-02-18.00COAX CBL SMA TO SMA |
3,800 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
CBL-12-6FT-S1-S9COAX CBL SMA TO SMA |
1,833 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-820-109-20BCOAX CBL U.FL AMC-FAKRA SMB |
4,767 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|

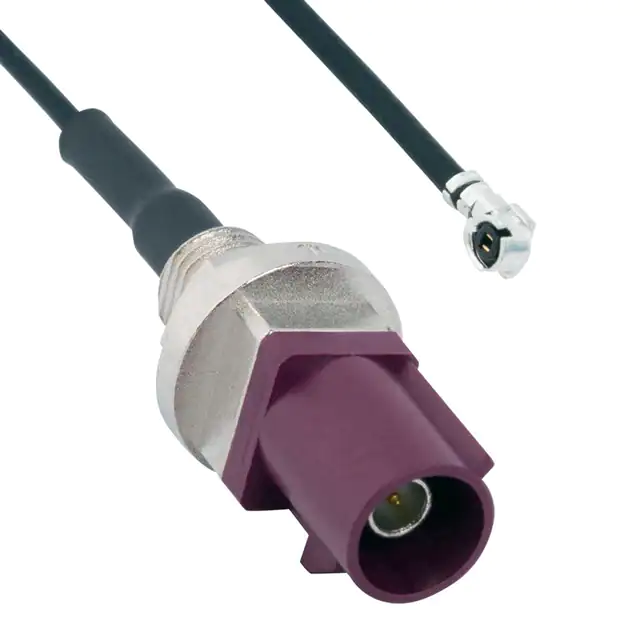

095-820-109-20DCOAX CBL U.FL AMC-FAKRA SMB |
1,335 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|
095-820-109-20HCOAX CBL U.FL AMC-FAKRA SMB |
3,375 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|
|
095-820-109-25HCOAX CBL U.FL AMC-FAKRA SMB |
3,869 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|
|
2483406-1CABLE ASSEMBLY BNC PLUG STRAIGHT |
4,222 |
|
- |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | - | - | - | 75 Ohms | 3 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
CO-059BNCX200-006COAX CBL BNC TO BNC |
4,505 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|

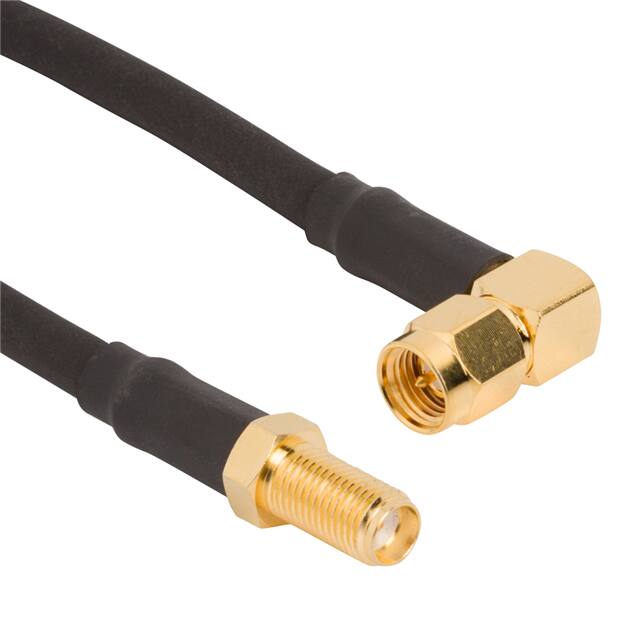

135107-04-06.00COAX CBL SMA TO SMA |
4,859 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CBL-195-12FT-S1-S4COAX CBL SMA TO SMA |
1,782 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-12FT-N1-S2COAX CBL RP-SMA TO N-TYPE |
1,332 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-12FT-S3-S4COAX CBL SMA TO SMA |
4,314 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-12FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
4,576 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-12FT-B1-N4COAX CBL BNC TO N-TYPE |
4,938 |
|
Datasheet |
CBL | Bulk | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-144-N1-T2COAX CBL RP-TNC TO N-TYPE |
1,963 |
|
Datasheet |
CBL | Bulk | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-144-T1-T2COAX CBL RP-TNC TO TNC |
2,002 |
|
Datasheet |
CBL | Bulk | Active | RP-TNC to TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
255104-08-06.00COAX CBL MCX TO MCX |
3,122 |
|
Datasheet |
- | Box | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-850-309-100COAX CBL MHF1 LK TO TNC |
4,603 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
0734192191COAX CBL SMA TO MMCX |
4,649 |
|
- |
73419 | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

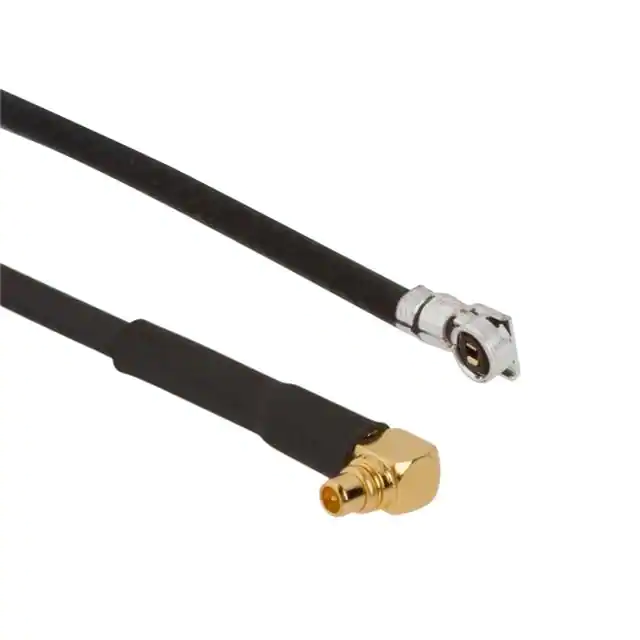

095-900-555-200COAX CBL AMC4 TO MMCX |
2,151 |
|
Datasheet |
- | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
