Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAB532RF-0300-A-1-SCABLE ASSEMBLY I-PEX MHF 4L PLUG |
3,275 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0732306214CASMA JACK TO MHF I LK1.32MML=4I |
3,645 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Panel Mount | - | 4.000" (101.60mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
ASMG35MMG081S11COAX CBL MHF1 TO MHF1 |
3,404 |
|
- |
- | Bulk | Active | I-PEX MHF1 to I-PEX MHF1 | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.378" (35.00mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Gray | - | - | - | - |
|
|
CAB425RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
1,082 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0732306135CASMA JACK TO MHF I LK1.37MM 2I |
2,200 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.000" (50.80mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
0732306244CASMA JACK TO MHFI LK1.13MM 4IN |
2,756 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCL-1010B-1ECOAX CBL BNC TO BNC |
2,180 |
|
- |
- | Box | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 39.4" (1.0m) 3.3' | - | - | - | - | - | Black | - | - | - | - |
|
|
CAB529RF-0200-A-1COAX CBL MHF1 LK TO SMA |
1,630 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|

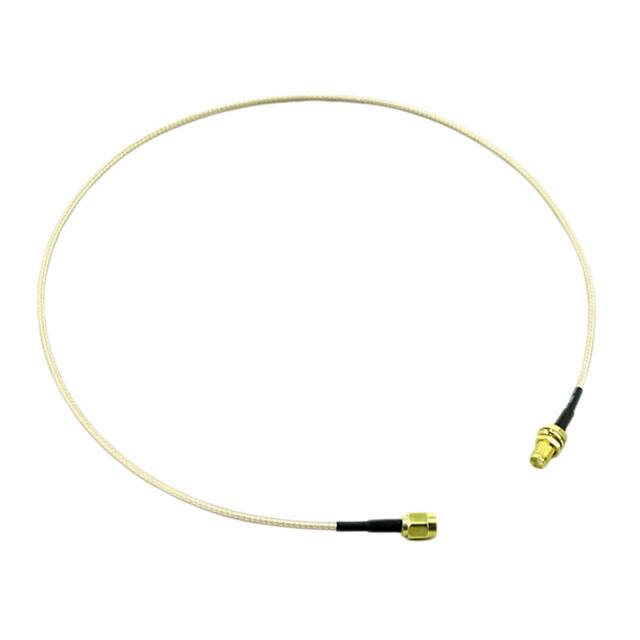

321080047COAX CBL SMA TO SMA |
4,613 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
IJ5C-01-0150-S-S-1COAX CBL IJ5C TO CABLE |
1,176 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
0732306144CASMA JACK TO MHF I LK1.37MM 4I |
3,042 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|

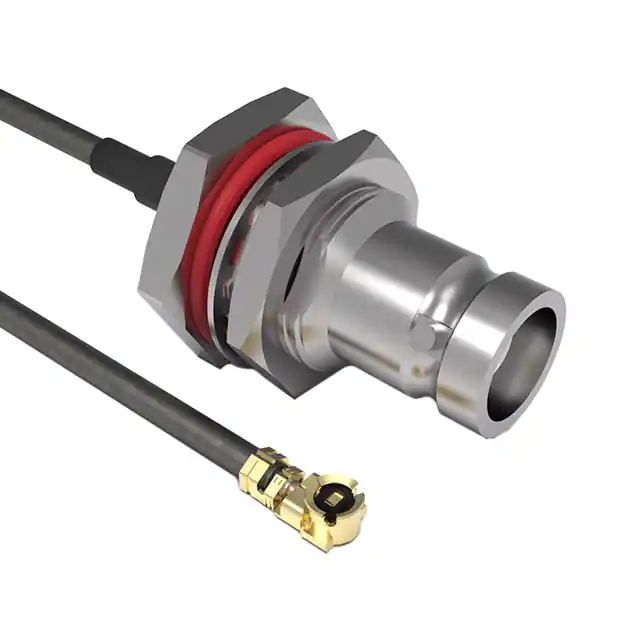

CABLE 272 RF-0100-A-1COAX CBL MHF1 TO BNC |
2,683 |
|
Datasheet |
Nautilus | Bag | Obsolete | I-PEX MHF1 to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | IP Rated Unmated | -20°C ~ 80°C | - | - |
|
|
0732306204CASMA JACK TO MHF I LK1.32MML= |
3,289 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0732306252ASMA JACK TO MHFI LK1.13MM 8IN |
3,394 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
|
CAB575RF-0150-A-1-ECABLE ASSEMBLY I-PEX MHF 4 TO SM |
2,105 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB577RF-0150-A-1-ECABLE ASSEMBLY I-PEX MHF 4L TO R |
3,346 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0734195390COAX CBL MMCX TO MMCX |
1,412 |
|
- |
73419 | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 3.250" (82.55mm) | Belden 1671J | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
0732306213CASMA JACK TO MHF I LK1.32MML=6I |
4,023 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Panel Mount | - | 6.000" (152.40mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

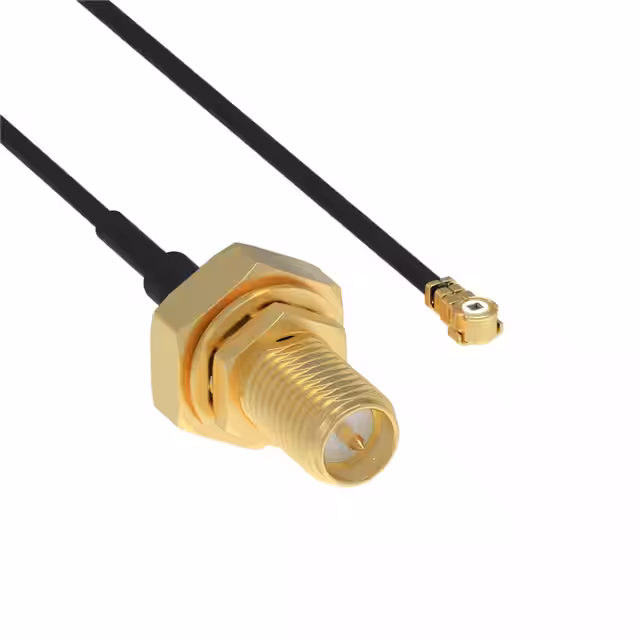

R302255015100COAX CBL MML TO SMA |
2,880 |
|
Datasheet |
MML | Bulk | Active | MML to SMA | SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CAB526RF-0100-A-1-ECABLE ASSEMBLY I-PEX MHF I LK PL |
1,332 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
