Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CABLE 235 RF-050-2CABLE ASSEMBLY I-PEX MHF I TO T |
1,005 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C | - | - |
|
|
0732306131CASMA JACK TO MHF I LK1.37MM 10 |
1,320 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
135102-02-04.00COAX CBL SMA TO CABLE |
2,586 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 4.000" (101.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

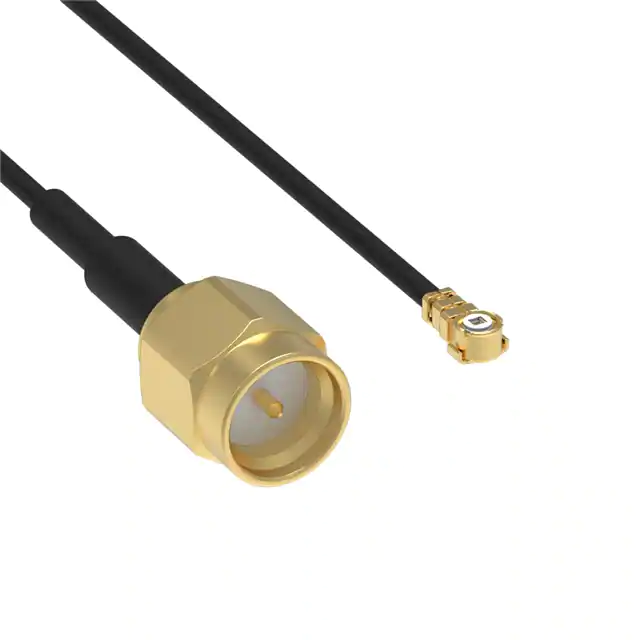

R302255002100COAX CBL MML TO SMA |
3,970 |
|
Datasheet |
MML | Bulk | Active | MML to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CAB434RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 5L RIGH |
3,094 |
|
- |
Nautilus | Bag | Active | I-PEX MHF5L to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB433RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 5L RIGH |
2,559 |
|
- |
Nautilus | Bag | Active | I-PEX MHF5L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB442RF-0150-A-1CABLE ASSEMBLY I-PEX MHF TO ISOL |
2,512 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CC59B-7.5HR2COAX CBL BNC TO BNC |
3,886 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-59B | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
CABLE 394 RF-150-A-1COAX CBL MHF1 TO SMA |
2,893 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0732306274CASMA JACK TO MHF4L LK1.37MM 4IN |
1,807 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CCF6-25COAX CBL F-TYPE TO F-TYPE |
3,359 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-6 | - | - | 75 Ohms | - | Black | - | - | - | - |
|
|
0897629380COAX CBL SMA TO FAKRA SMB |
2,371 |
|
- |
89762 | Bulk | Active | SMA to Fakra SMB | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | LMR 240 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0732305953CASMA JACK TO MCRF211.13MML=7.87 |
4,781 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897616640COAX CBL RP-SMA TO SMA |
3,793 |
|
- |
89761 | Bulk | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.618" (117.30mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
ASMZN015K174S11SMA FEMALE RP BLKHD TO MMCX RA P |
3,623 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897629980COAX CBL FAKRA TO FAKRA |
1,737 |
|
- |
89762 | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | - | - | - | 50 Ohms | - | - | - | - | - | - |
|
CABLE 391 RF-150-A-1COAX CBL SMA TO MMCX |
4,813 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
CAB576RF-0300-A-1-ECABLE ASSEMBLY I-PEX MHF I TO RP |
1,858 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
0732306273CASMA JACK TO MHF4L LK1.37MM 6IN |
1,850 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1408483-1COAX CBL MMCX TO SSMT |
2,675 |
|
Datasheet |
- | Bag | Active | MMCX to SSMT | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.30mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
