Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAB417RF-0050-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
3,945 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CABLE 378 RF-050-A-1CABLE ASSEMBLY I-PEX MHF4L TO RP |
4,634 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CABLE 385 RF-050-A-2CABLE ASSEMBLY I-PEX MHF4L TO SM |
2,332 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC59B-5HRCOAX CBL BNC TO BNC |
4,758 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59B | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|

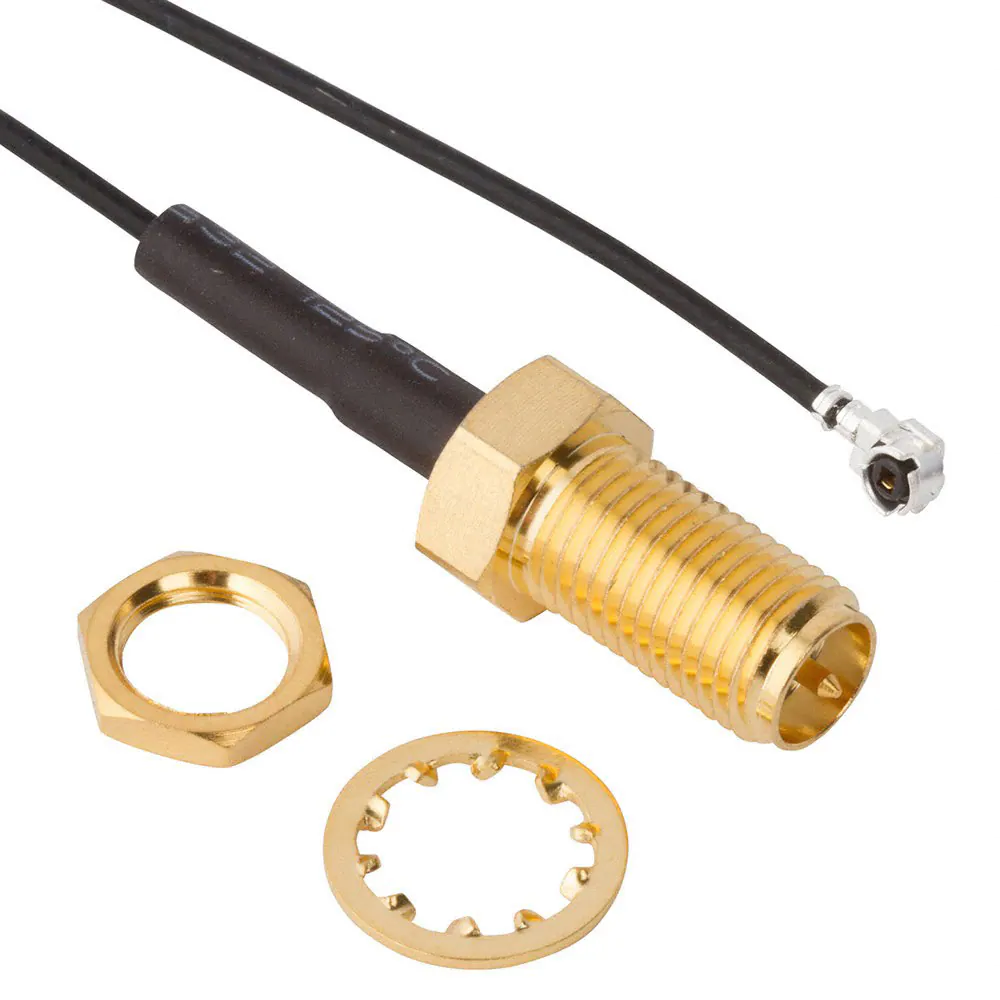

336314-13-0150COAX CBL U.FL AMC TO RP-SMA |
3,797 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0734196920COAX CBL RP-SMA TO MMCX |
3,712 |
|
- |
73419 | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
MCXIPEX2109003COAX CBL MHF1 TO MCX |
1,255 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.268" (210.00mm) | RG-178 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
1274999-1COAX CBL U.FL TO QSL |
2,168 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to QSL | QSL Receptacle, 3 Port | Female | Panel Mount | - | U.FL (UMCC) Plug, Right Angle (3) | Female | Free Hanging (In-Line) | - | 2.500" (63.50mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
0731357210CA,SMA JACK RP TO MCRF17 PLUG,0. |
2,707 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CABLE 184 RF-050-A-2COAX CBL U.FL TO SMA |
2,028 |
|
Datasheet |
Nautilus | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
CAB421RF-0300-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
1,022 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CSI-RGFE-300-UFFRCOAX CBL U.FL TO RP-SMA |
2,025 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
F6-15WCOAX CBL F-TYPE TO F-TYPE |
2,060 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | White | Shielded | - | - | - |
|
|
0734193582COAX CBL SMB TO SMB |
3,226 |
|
- |
73419 | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | - | - | - | - | - |
|
|
0732306265CAMCX PLUG R/A TO MHF 4L LK1.37M |
4,950 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1064473-1COAX CBL OSMT TO CABLE |
2,074 |
|
Datasheet |
- | Bag | Active | OSMT to Cable | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | - | Shielded | -55°C ~ 150°C | - | - |
|
|
0732306155CAMCX PLUG R/A TO MHF I LK1.37MM |
2,519 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.000" (50.80mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
0734191714COAX CBL 1.0/2.3 TO MCX |
1,374 |
|
- |
73419 | Bulk | Active | 1.0/2.3 to MCX | 1.0/2.3 Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.500" (114.30mm) | RG-316 | 50 Ohms | - | 50 Ohms | 2 GHz | - | - | - | - | - |
|
|
0732306221CAMCX PLUG R/A TO MHF I LK1.32MM |
2,314 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
|
2480661-3COAX CBL SMA TO SMA |
2,450 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Silver | - | -55°C ~ 125°C | - | - |
