Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0734192151COAX CBL RP-SMA TO MMCX |
2,336 |
|
- |
73419 | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.165" (182.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
336314-12-0200COAX CBL U.FL AMC TO RP-SMA |
2,906 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CA-#DKCA1-152L5-EPR-HSBL-12COAX CBL MMCX TO CABLE |
2,522 |
|
- |
- | Bag | Active | MMCX to Cable | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
0732306224CAMCX PLUG R/A TO MHF I LK1.32MM |
2,893 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|

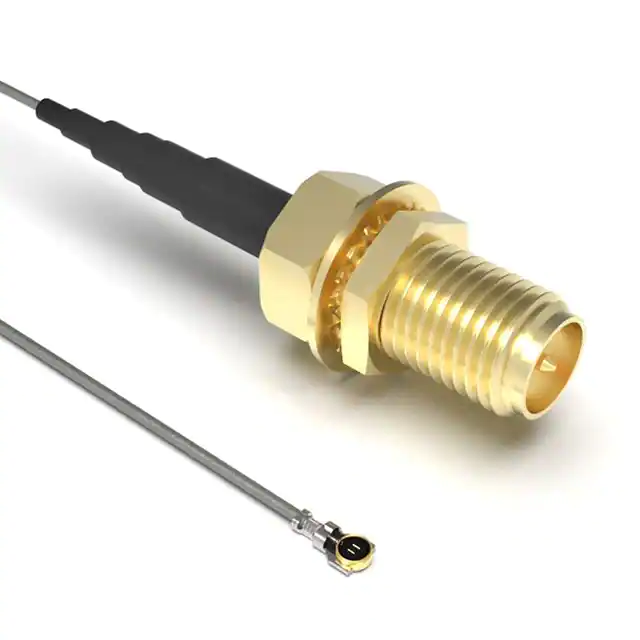

CAB432RF-0200-A-1COAX CBL RP-SMA TO MHF5L |
1,897 |
|
Datasheet |
- | Bag | Active | RP-SMA to I-PEX MHF5L | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CC59B-1.5HRCOAX CBL BNC TO BNC |
3,809 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-59B | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
0897619480CA,SMA J BH IP68/MMCX P RA,BLDEN |
4,355 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASMG010G113S11COAX CBL MHF1 TO MHF1 |
1,347 |
|
- |
- | Bulk | Active | I-PEX MHF1 to I-PEX MHF1 | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Gray | - | - | - | - |
|
|
CC59A-BF-9COAX CBL BNC TO F-TYPE |
4,669 |
|
Datasheet |
- | Bag | Active | BNC to F-Type | BNC Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-59A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CAB470RF-0200-F1-A-1CABLE ASSEMBLY I-PEX MHF I TO SM |
2,307 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC59B-3HR2COAX CBL BNC TO BNC |
4,528 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59B | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
0897622151COAX CBL SMA TO MMCX |
2,718 |
|
- |
89762 | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
0731356770CA FAKRA II P TO FAKRA II J RG31 |
3,009 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0732306223CAMCX PLUG R/A TO MHF I LK1.32MM |
1,890 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
CABLE 379 RF-050-A-1COAX CBL MHF1 TO SMA |
3,422 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0734194050CABLE ASSY, SMA PLUG/U.FL,1.13MM |
2,442 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0732306021CASMA JACK TO MCRF211.32MML=3.94 |
4,946 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMC1212315-36COAX CBL SMA TO SMA |
4,404 |
|
- |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
0732305950CASMA JACK TO MCRF211.13MML=1.97 |
2,182 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAB422RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
4,698 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
