Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F6-12WCOAX CBL F-TYPE TO F-TYPE |
1,722 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | White | Shielded | - | - | - |
|
0732306123CASMA JACK TO MHF I LK1.37MM6IN |
1,832 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
0732306162CASMA JACK TO MHF 4L LK1.37MM 8I |
2,996 |
|
- |
73230 | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 12 GHz | - | - | - | - | - |
|

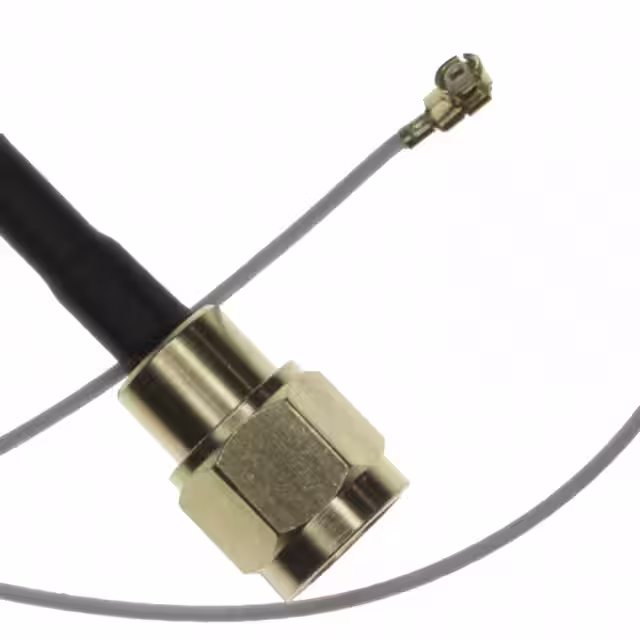

415-0092-250COAX CBL U.FL TO RP-SMA |
4,485 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|
415-0095-250COAX CBL U.FL TO SMA |
4,437 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
415-0098-250COAX CBL U.FL TO RP-SMA |
3,728 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|

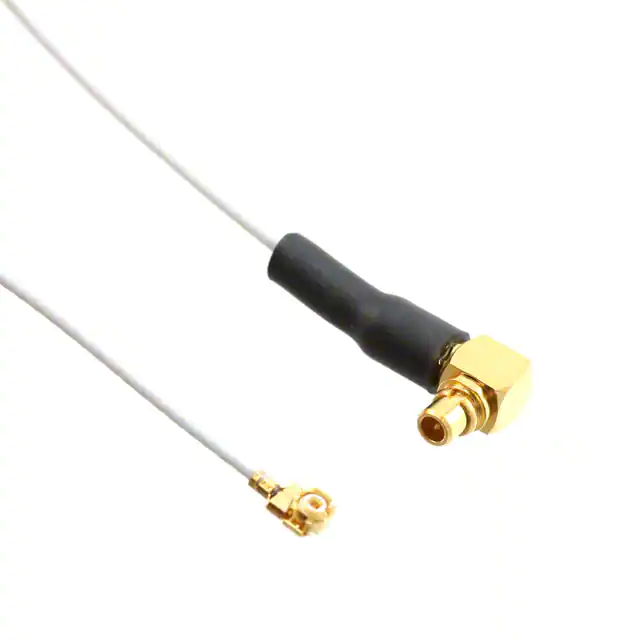

415-0101-250COAX CBL U.FL TO MMCX |
4,331 |
|
Datasheet |
UMC | Bulk | Obsolete | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|
|
FMC0303058-11COAX CBL TNC TO TNC |
1,473 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 11.000" (279.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|

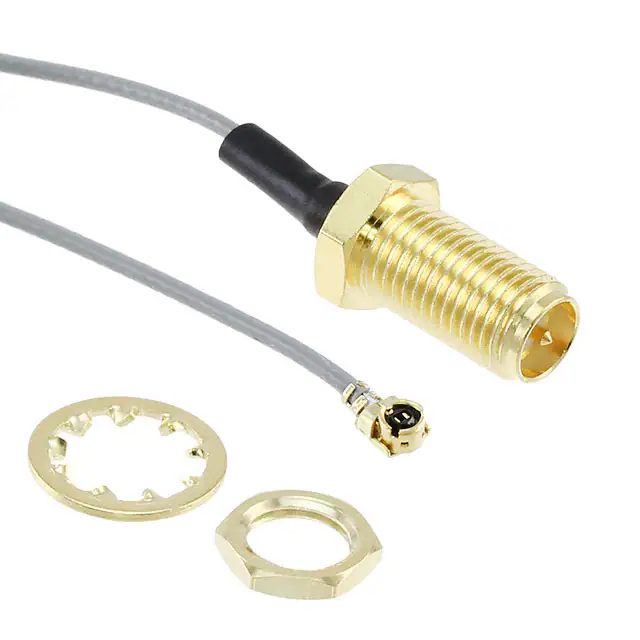

MAF94118COAX CBL U.FL MHF1 TO RP-SMA |
1,371 |
|
Datasheet |
- | Bag | Obsolete | U.FL (UMCC), I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.165" (182.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | Shielded | - | - | - |
|

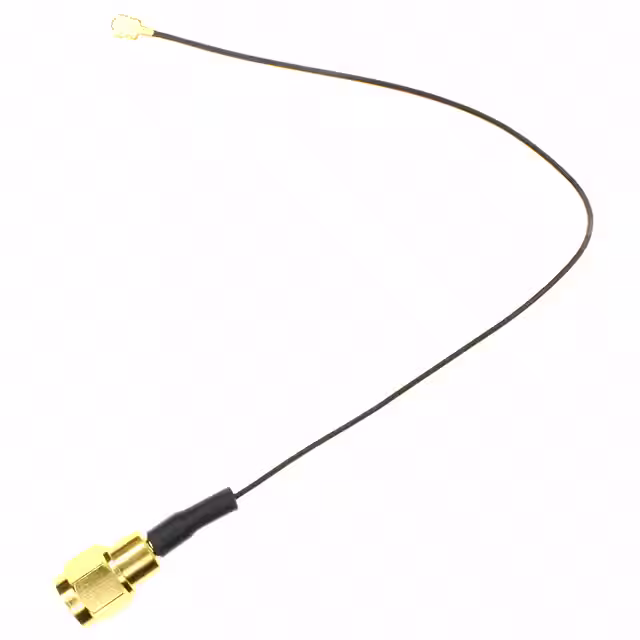

415-0093-150COAX CBL U.FL TO RP-SMA |
1,435 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
415-0094-150COAX CBL U.FL TO RP-SMA |
2,065 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

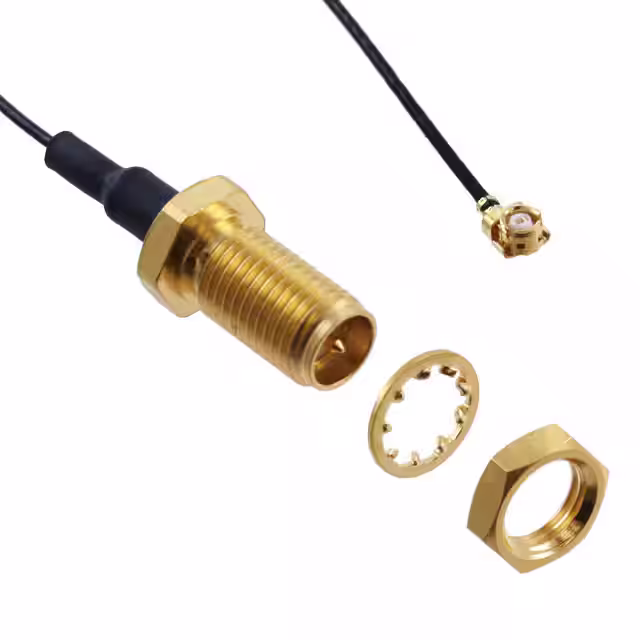

415-0099-150COAX CBL U.FL TO RP-SMA |
1,018 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0734195851CA,SMA JACK BH TO MCRF PLUG,RG17 |
1,896 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CABLE 288 RF-050-A-1COAX CBL RP-SMA TO U.FL |
1,429 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to U.FL (UMCC) | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0732306232CASMA JACK TO MHFI LK1.13MM 8IN |
4,456 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
|
CAB476RF-0100-F1-A-1CABLE ASSEMBLY I-PEX MHF 4L TO S |
4,992 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0734193260COAX CBL MCX TO UHF MINI |
2,592 |
|
- |
73419 | Bulk | Active | MCX to UHF Mini | MMCX Plug | Male | Free Hanging (In-Line) | - | UHF, Mini Jack | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0732306112CASMA JACK TO MHF I LK1.32MML=8I |
4,986 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

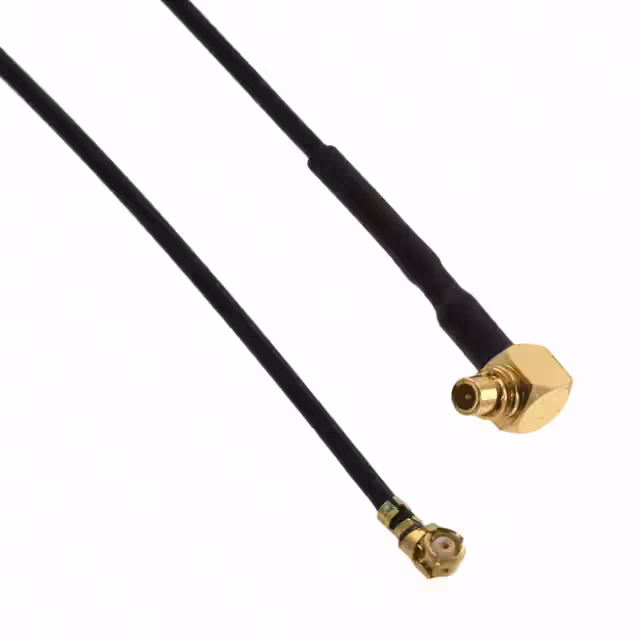

2032444-1COAX CBL U.FL TO MMCX |
4,155 |
|
Datasheet |
- | Bag | Obsolete | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
|
CABLE 184 RF-050-2CABLE ASSEMBLY HIROSE U.FL TO SM |
4,819 |
|
- |
Nautilus | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 85°C | - | - |
