Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

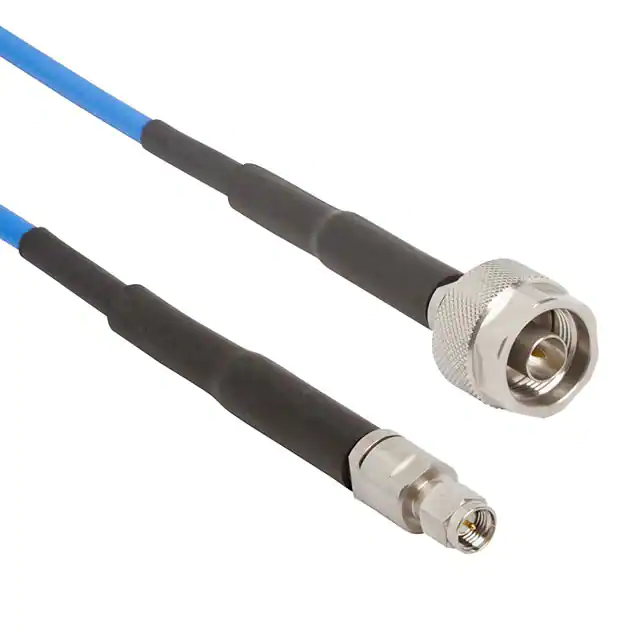

095-909-168-024COAX CBL SMA TO N-TYPE |
3,446 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
7093-0280COAX CBL BMZ TO MCX |
3,832 |
|
Datasheet |
- | Bag | Active | BMZ to MCX | BMZ Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | 3 GHz | Copper | - | -65°C ~ 125°C | - | - |
|

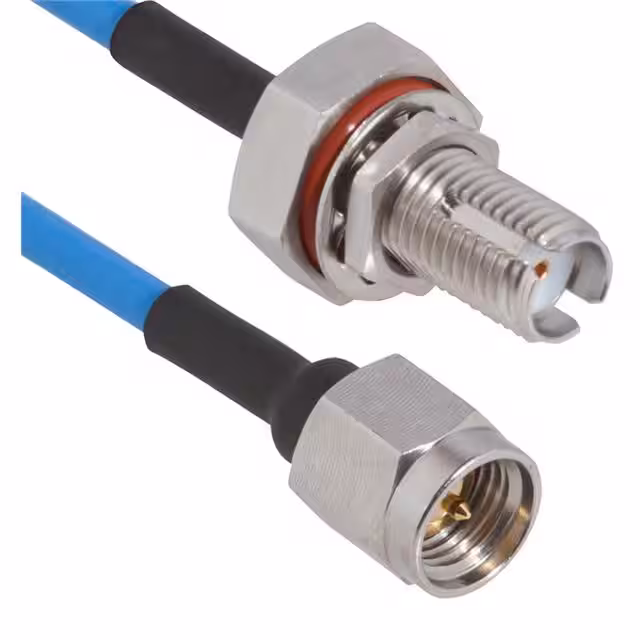

7029-3408COAX CBL SMA TO SMA |
3,822 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

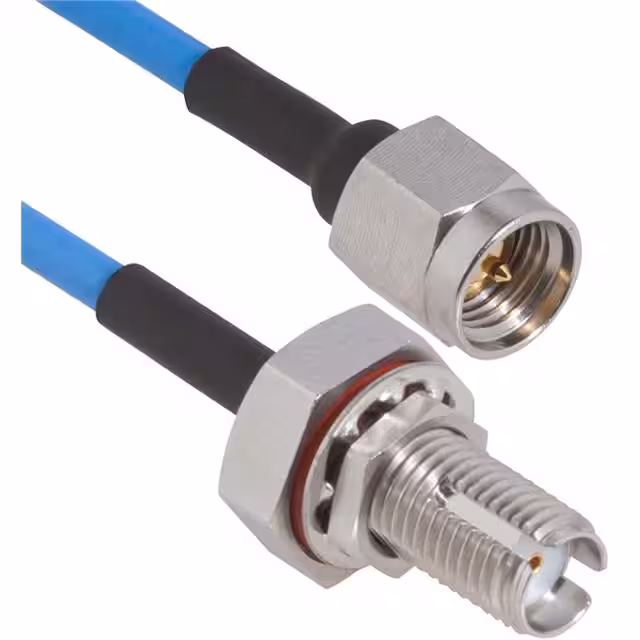

7029-3409COAX CBL SMA TO SMA |
2,616 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

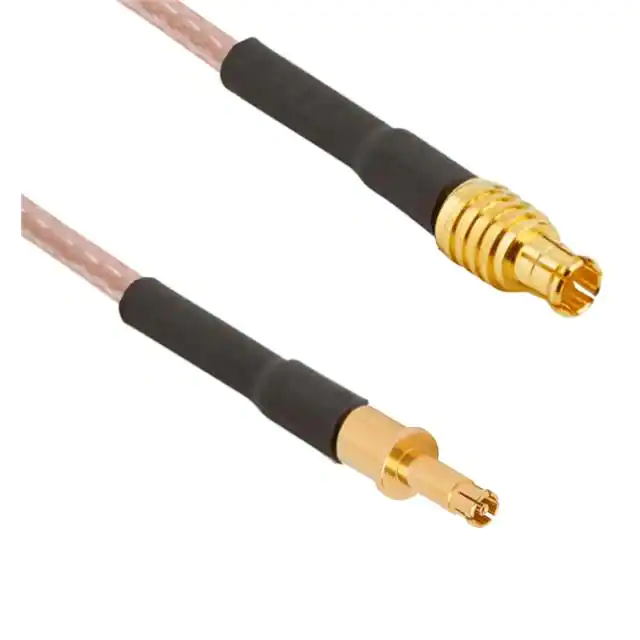

7093-0278COAX CBL SMPM TO MCX |
4,612 |
|
Datasheet |
- | Bag | Active | SMPM to MCX | SMPM Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | 3 GHz | Copper | - | -65°C ~ 165°C | - | - |
|
21-21-M4.5COAX CBL TRB TO TRB |
2,214 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 177.2" (4.5m) 14.8' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|

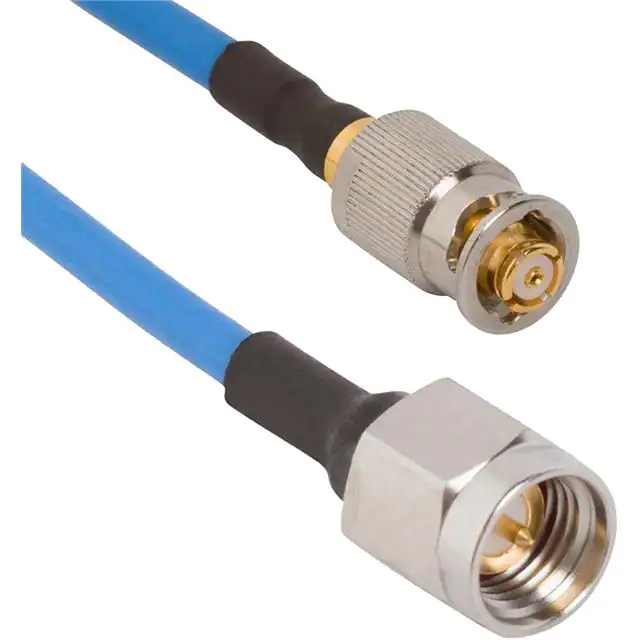

7012-1084COAX CBL SMA TO SMP |
4,232 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7093-0276COAX CBL SMPS TO MCX |
1,522 |
|
Datasheet |
- | Bag | Active | SMPS to MCX | SMPS Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | 3 GHz | Copper | - | -65°C ~ 165°C | - | - |
|
21-21-M2.0COAX CBL TRB TO TRB |
1,751 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
21-20-M2.0COAX CBL TRB TO TRB |
1,913 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
NANOBEND R-10CBL ASSY |
3,998 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-902-466-005COAX CBL SMA TO SMA |
1,251 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 20 GHz | Gray | - | -20°C ~ 75°C | - | - |
|

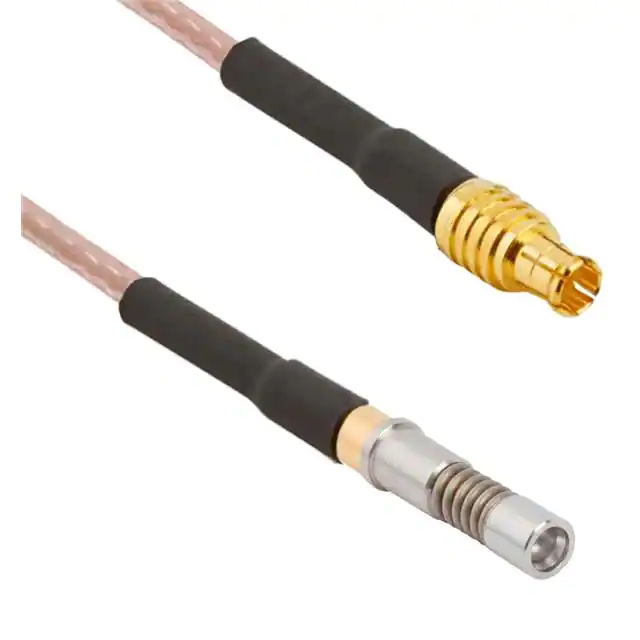

7093-0275COAX CBL SMPS TO MCX |
1,265 |
|
Datasheet |
- | Bag | Active | SMPS to MCX | SMPS Jack | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | 3 GHz | Copper | - | -65°C ~ 165°C | - | - |
|

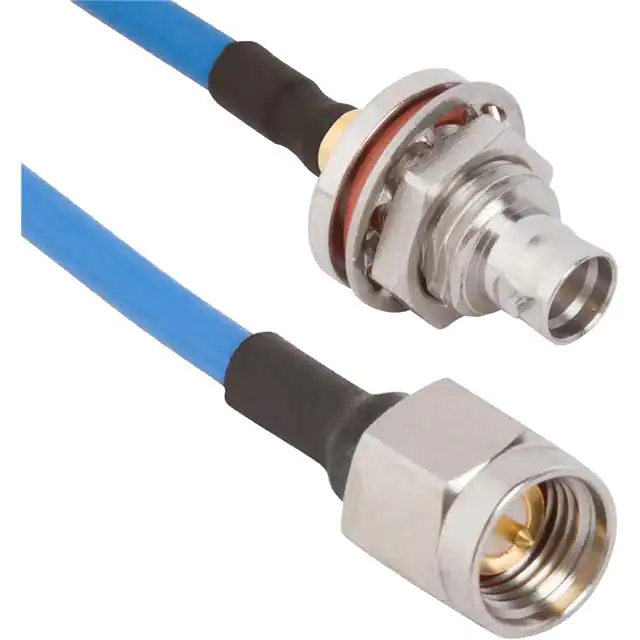

7012-1086COAX CBL SMA TO SMP |
1,569 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

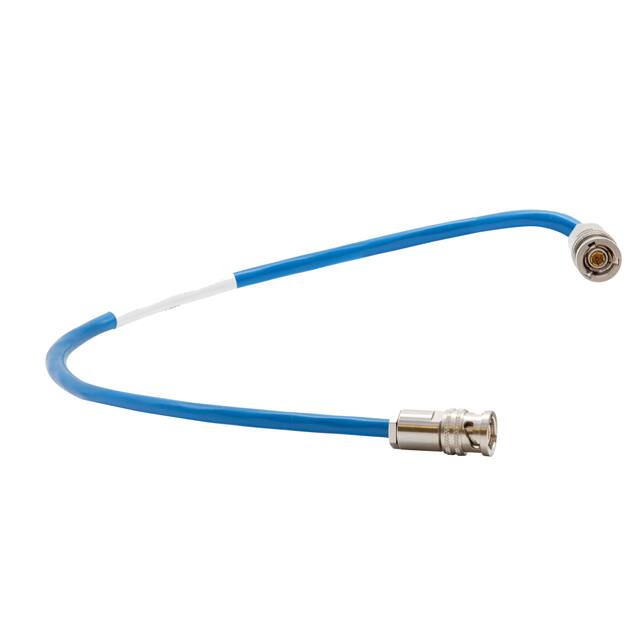

21-21-M4.0COAX CBL TRB TO TRB |
3,054 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
095-909-164-036COAX CBL N-TYPE TO N-TYPE |
1,560 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C | - | - |
|

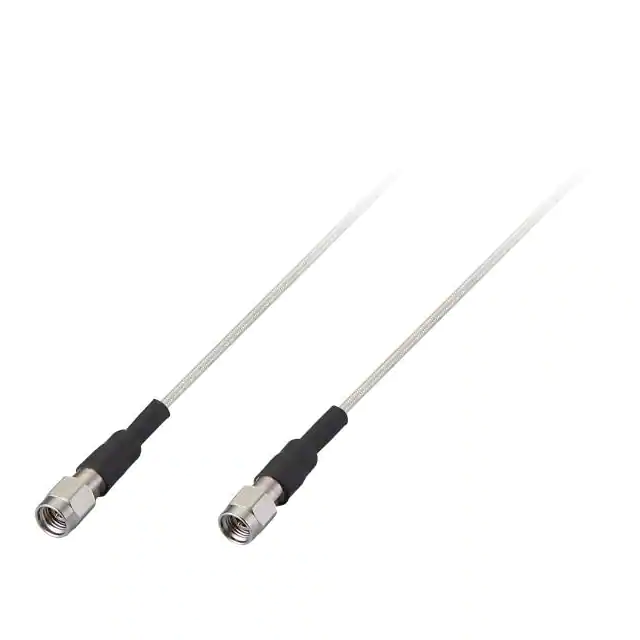

MCA4.L0152LCOAX CBL 2.92MM TO 2.92MM |
1,641 |
|
Datasheet |
- | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-405 | 50 Ohms | - | - | 26.5 GHz | Black | - | -55°C ~ 125°C | - | - |
|

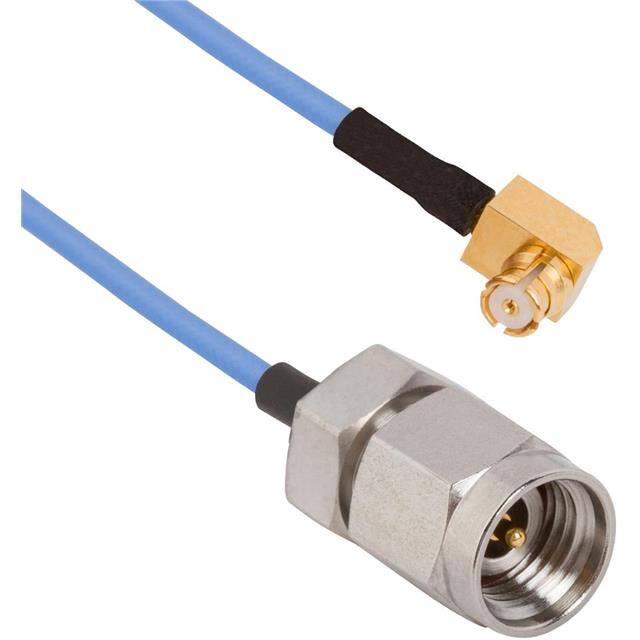

7012-1066COAX CBL SMP TO 2.92MM |
2,526 |
|
Datasheet |
- | Bulk | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

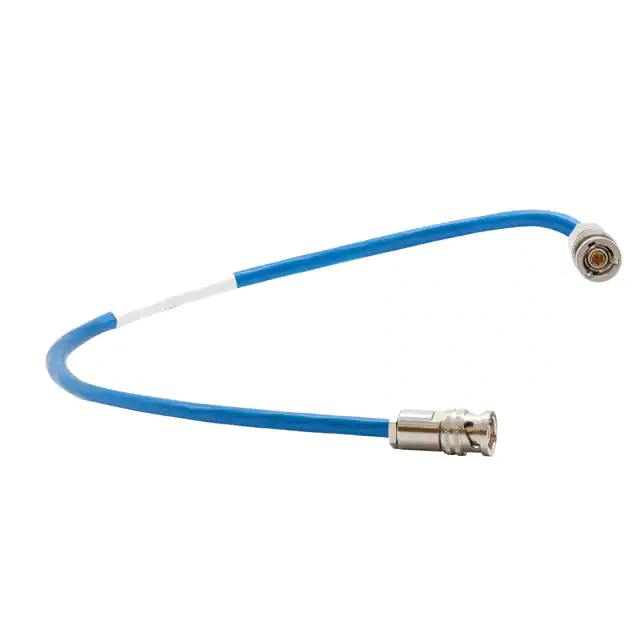

21-14-M4.5COAX CBL TRB TO TRB |
2,708 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 177.2" (4.5m) 14.8' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
|
095-909-164M100COAX CBL N-TYPE TO N-TYPE |
4,960 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C | - | - |
