Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135101-07-M0.50COAX CBL SMA TO SMA |
1,104 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
PX0414/1M50COAX CBL SMB TO CABLE |
4,999 |
|
Datasheet |
Buccaneer® | Box | Active | SMB to Cable | SMB Jack | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 59.1" (1.5m) 4.9' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
095-850-275M100COAX CBL TNC TO TNC |
3,052 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
095-725-108-060COAX CBL SMP TO SMP |
4,681 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-243-036COAX CBL BNC TO MCX |
2,940 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-725-118-003COAX CBL SMP TO SMP |
3,407 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .086 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|

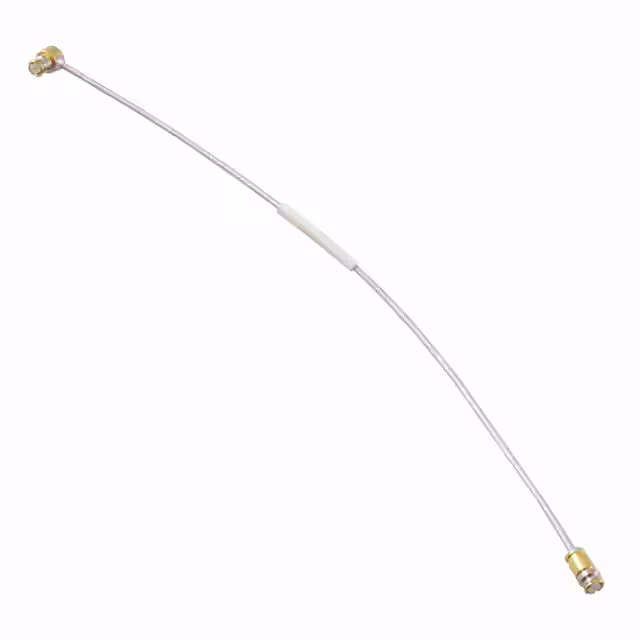

095-725-120-006COAX CBL SMP TO SMP |
1,995 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
095-725-108-080COAX CBL SMP TO SMP |
2,756 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-725-119-012COAX CBL SMP TO SMP |
2,794 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
415-0043-M1.5COAX CBL SMA TO SMA |
4,703 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|

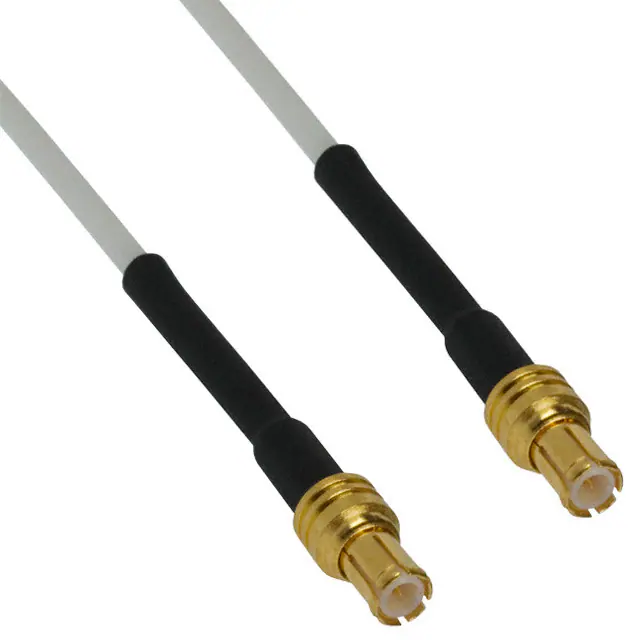

415-0014-036COAX CBL MCX TO MCX |
2,131 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
095-725-108-100COAX CBL SMP TO SMP |
3,549 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-229-012COAX CBL RP-TNC TO RP-TNC |
1,291 |
|
Datasheet |
- | Bag | Active | RP-TNC to RP-TNC | RP-TNC Jack | Male | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
095-850-188-024COAX CBL HD-BNC TO HD-BNC |
2,353 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
175101-10-M0.75COAX CBL N-TYPE TO N-TYPE |
4,120 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | Shielded | - | - | - |
|
|
095-725-108-120COAX CBL SMP TO SMP |
4,538 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|

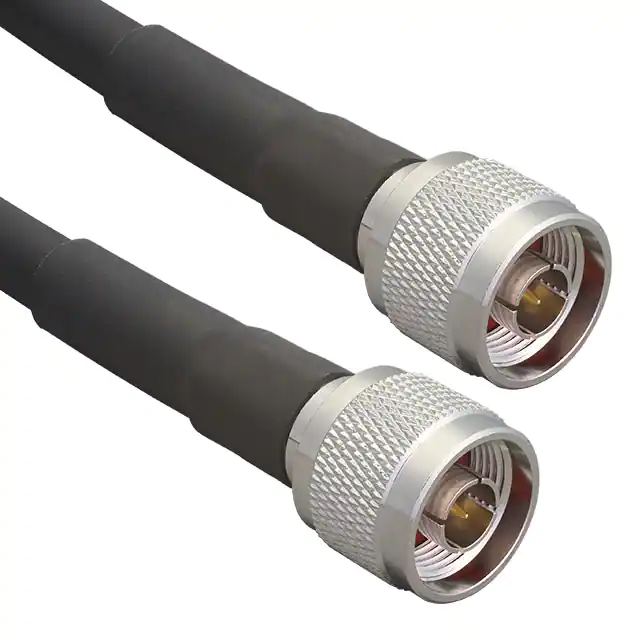

CSO-NM-1200-NMCOAX CBL N-TYPE TO N-TYPE |
1,333 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-850-188M075COAX CBL HD-BNC TO HD-BNC |
4,050 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-850-185-024COAX CBL HD-BNC TO HD-BNC |
1,467 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
175101-21-24.00COAX CBL N-TYPE TO N-TYPE |
3,254 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
