Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-166M300COAX CBL BNC TO BNC |
3,789 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-725-120-012COAX CBL SMP TO SMP |
3,117 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-725-108M050COAX CBL SMP TO SMP |
4,825 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-230-012COAX CBL RP-TNC TO RP-TNC |
1,773 |
|
Datasheet |
- | Bag | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
095-725-111-060COAX CBL SMPM TO SMPM |
1,393 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
PX0414/0M50COAX CBL SMB TO CABLE |
4,647 |
|
Datasheet |
Buccaneer® | Box | Active | SMB to Cable | SMB Jack | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
095-725-119M050COAX CBL SMP TO SMP |
2,055 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
175101-R2-12.00COAX CBL N-TYPE TO N-TYPE |
3,334 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
095-909-187M100COAX CBL N-TYPE TO N-TYPE |
1,505 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|

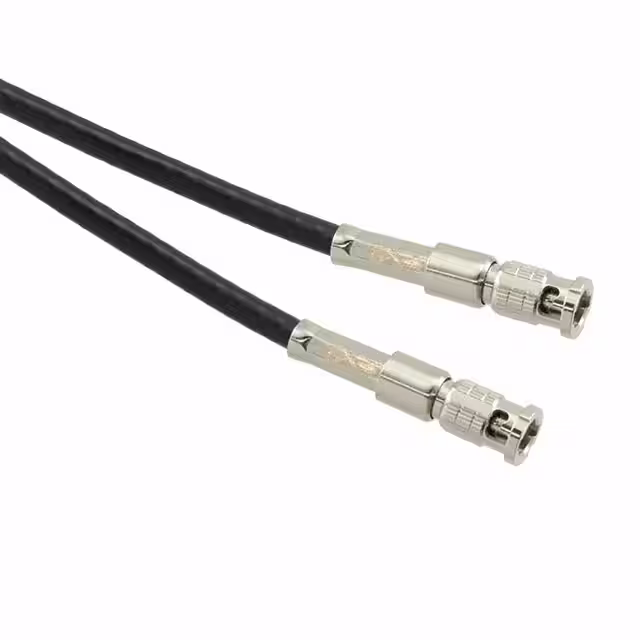

095-850-158-036COAX CBL HD-BNC TO HD-BNC |
1,547 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
TM4SMSTSSTS031CCOAX CBL SSMP TO SSMP |
4,523 |
|
Datasheet |
- | Bag | Active | SSMP to SSMP | SSMP Socket | Female | Free Hanging (In-Line) | - | SSMP Socket | Female | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 0.047" Semi-Rigid Cable | - | - | - | 65 GHz | Teal | - | - | - | - |
|
095-725-117M010COAX CBL SMP TO SMP |
1,102 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
095-725-112M010COAX CBL SMPM TO SMPM |
2,942 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
095-850-239-006COAX CBL BNC TO HD-BNC |
2,403 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
CCSMA-MM-RG316DS-24PCOAX CBL SMA TO SMA |
2,192 |
|
Datasheet |
CCSMA | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|

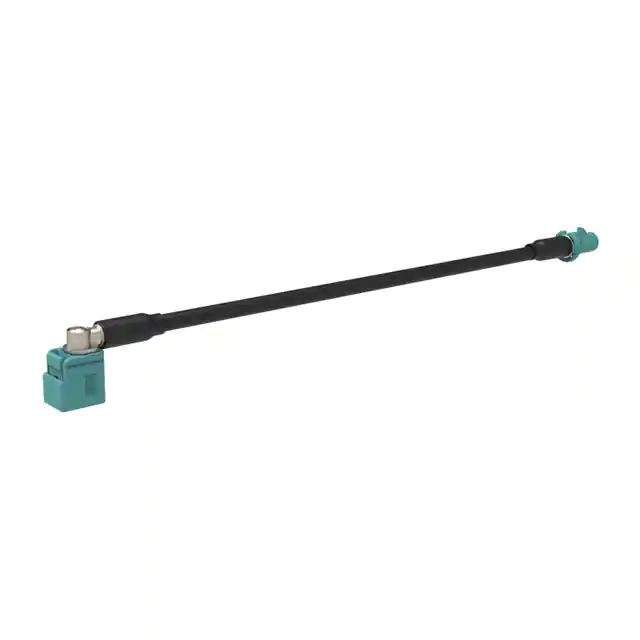

095FJZFPZAGM500COAX CBL FAKRA TO FAKRA |
2,750 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Gen 3.5 Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Z Code | -40°C ~ 85°C | - | - |
|
CAB.942COAX CBL SMA TO N-TYPE |
2,175 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | CFD 200 | - | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
095-850-186M100COAX CBL BNC TO BNC |
1,624 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-725-112-060COAX CBL SMPM TO SMPM |
4,597 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
095-850-239M030COAX CBL BNC TO HD-BNC |
1,112 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
