Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-107-240COAX CBL SMP TO SMP |
2,772 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 20 GHz | Blue | Shielded | - | - | - |
|
095-850-221M050COAX CBL TNC TO TNC |
1,522 |
|
Datasheet |
ARC | Bag | Active | TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-725-120-024COAX CBL SMP TO SMP |
2,295 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|

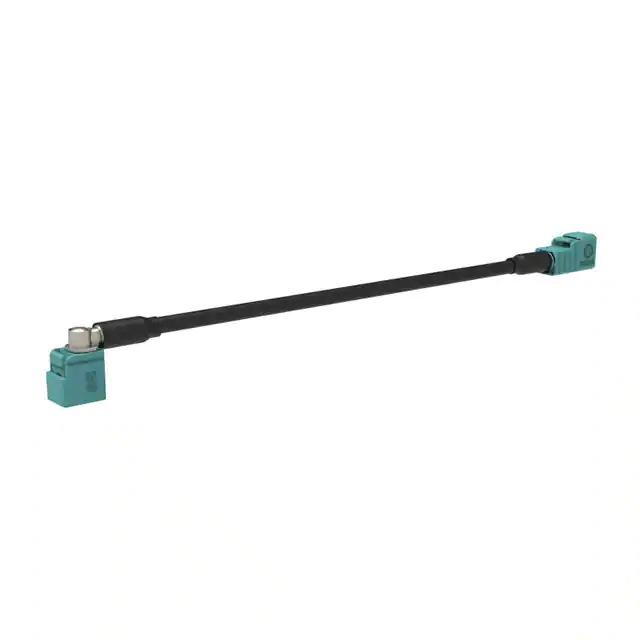

095FJZFJZAGM500COAX CBL FAKRA TO FAKRA |
1,908 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | Fakra Gen 3.5 Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Z Code | -40°C ~ 85°C | - | - |
|

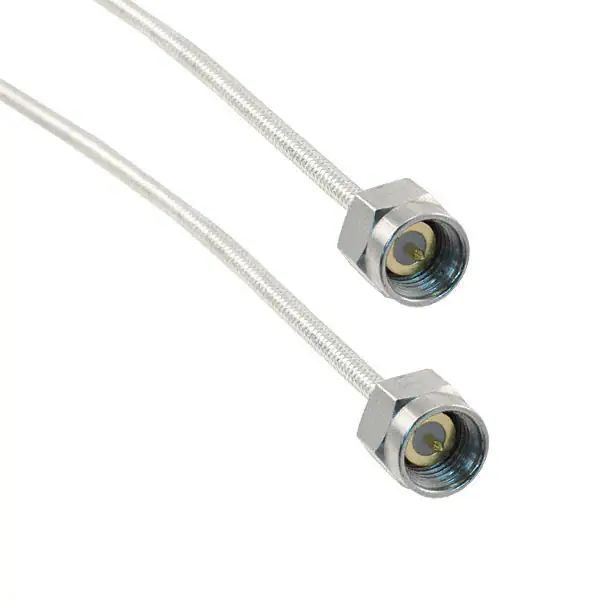

CCSMA26.5-MM-086-5COAX CBL SMA TO SMA |
1,657 |
|
Datasheet |
CCSMA26.5 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .086 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -40°C ~ 85°C | - | - |
|
095-850-217-036COAX CBL BNC TO HD-BNC |
1,561 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
ASMN1500A058L13COAX CBL SMA TO N-TYPE |
1,837 |
|
Datasheet |
- | Bulk | Active | SMA to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 590.6" (15.0m) 49.2' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-725-121-024COAX CBL SMP TO SMP |
3,500 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
TM7SMSTS9FS031CCOAX CBL SSMP TO 2.92MM |
2,988 |
|
Datasheet |
- | Bag | Active | SSMP to 2.92mm | SSMP Socket | Female | Free Hanging (In-Line) | - | 2.92mm Jack | Female | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 0.078" OD Coaxial Cable | - | - | - | 40 GHz | Teal | - | - | - | - |
|
095-909-186M100COAX CBL N-TYPE TO N-TYPE |
3,367 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
095-850-189-024COAX CBL BNC TO HD-BNC |
3,444 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|

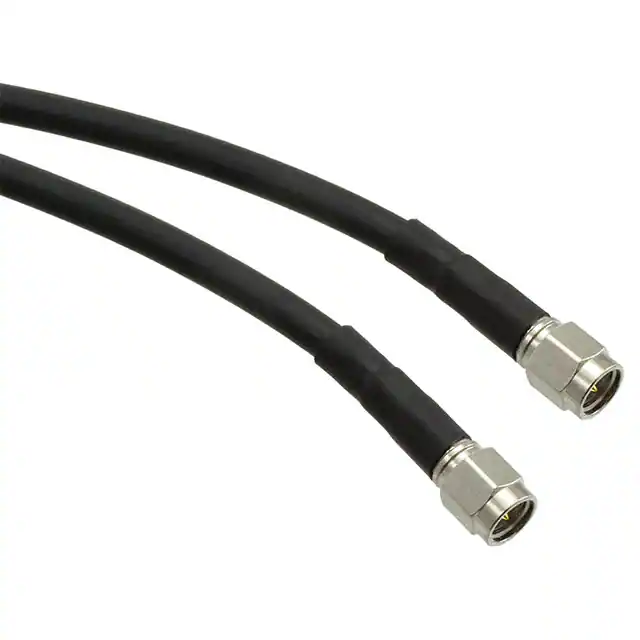

ASMA1500C058L13COAX CBL RP-SMA TO SMA |
3,253 |
|
- |
- | Bulk | Active | RP-SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 590.6" (15.0m) 49.2' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
095-725-114-050COAX CBL SMPM TO SMPM |
4,937 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.000" (127.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
095-725-111M025COAX CBL SMPM TO SMPM |
3,193 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
095-725-111-100COAX CBL SMPM TO SMPM |
4,866 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
095-725-117-024COAX CBL SMP TO SMP |
1,924 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
ASMZG2000A058L13COAX CBL SMA TO TNC |
1,809 |
|
Datasheet |
- | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

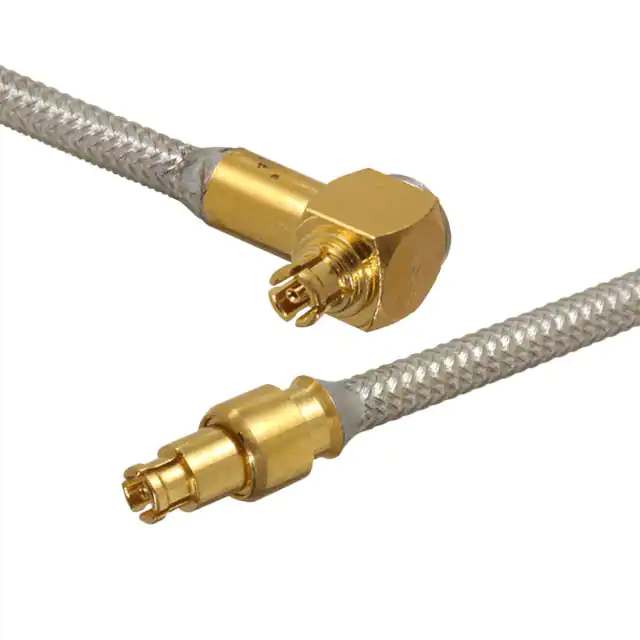

095-725-114M025COAX CBL SMPM TO SMPM |
1,751 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
095-850-217M300COAX CBL BNC TO HD-BNC |
2,276 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
4846-BB-48COAX CBL SMA TO SMA |
1,157 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Brown | Shielded | 200°C | - | - |
