Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
265101-01-24.00COAX CBL MMCX TO MMCX |
2,170 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-850-201-012COAX CBL 1.0/2.3 TO BNC |
3,089 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-902-462-005COAX CBL SMA TO CABLE |
1,487 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 5.000" (127.00mm) | Micro Coaxial | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
115101-35-M1.00COAX CBL BNC TO BNC |
1,167 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 179DT | 75 Ohms | 75 Ohms | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

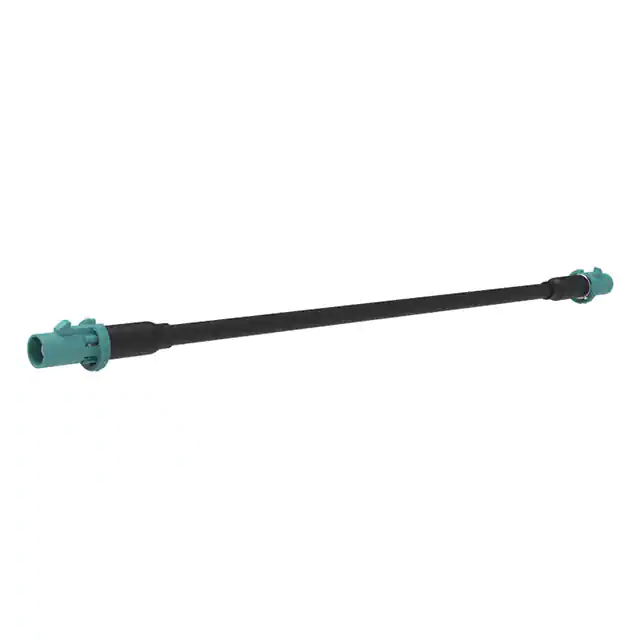

095FPZFPZSG-024COAX CBL FAKRA TO FAKRA |
1,230 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Z Code | -40°C ~ 85°C | - | - |
|
255101-08-M0.25COAX CBL MCX TO MCX |
1,806 |
|
Datasheet |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|

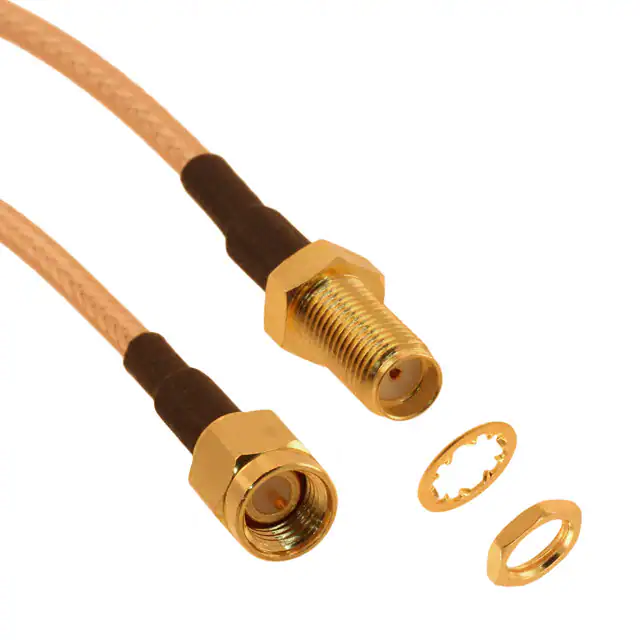

135110-03-24.00COAX CBL SMA TO SMA |
4,374 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
095-820-124-15ZCOAX CBL AMC4 TO FAKRA SMB |
1,370 |
|
Datasheet |
- | Bag | Active | AMC4 to Fakra SMB | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | - | - | - |
|
135111-03-M0.25COAX CBL SMA TO SMA |
4,728 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
255104-01-48.00COAX CBL MCX TO MCX |
2,529 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-820-124-20ZCOAX CBL AMC4 TO FAKRA SMB |
2,642 |
|
Datasheet |
- | Bag | Active | AMC4 to Fakra SMB | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | - | - | - |
|
095-850-186-006COAX CBL BNC TO BNC |
1,464 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
336503-13-0200COAX CBL U.FL AMC TO MCX |
2,731 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
095-820-124-25ZCOAX CBL AMC4 TO FAKRA SMB |
4,265 |
|
Datasheet |
- | Bag | Active | AMC4 to Fakra SMB | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | - | - | - |
|
415-0205-M1.0COAX CBL SMA TO SMA |
4,134 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
65503603230506COAX CBL SMA TO SMA |
4,518 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
095-900-547-024COAX CBL MCX TO MCX |
2,873 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
135101-R1-11.00COAX CBL SMA TO SMA |
4,966 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 11.000" (279.40mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
095FJZFJZAH-012COAX CBL FAKRA TO FAKRA |
3,212 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Gen 3.5 Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C | - | - |
|
145104-08-12.00COAX CBL SMB TO SMB |
4,161 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
