Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
636207050200COAX CBL U.FL TO SMA |
4,056 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
A-2PA-081-01KB2COAX CBL AMMC TO AMMC |
1,013 |
|
Datasheet |
- | Bag | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
0732305342COAX CBL MCX TO MCX |
4,047 |
|
Datasheet |
73230 | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|
415-0025-MM250COAX CBL SMA TO SMA |
4,295 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
415-0073-MM150COAX CBL SMA TO MMCX |
1,436 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
415-0071-M1.0COAX CBL SMA TO MMCX |
1,294 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
415-0204-MM500COAX CBL SMA TO SMA |
1,163 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
CAB429RF-0200-A-1COAX CBL SMA TO MHF5L |
2,632 |
|
Datasheet |
Nautilus | Bag | Active | SMA to I-PEX MHF5L | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
415-0004-012COAX CBL SMB TO SMB |
4,933 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

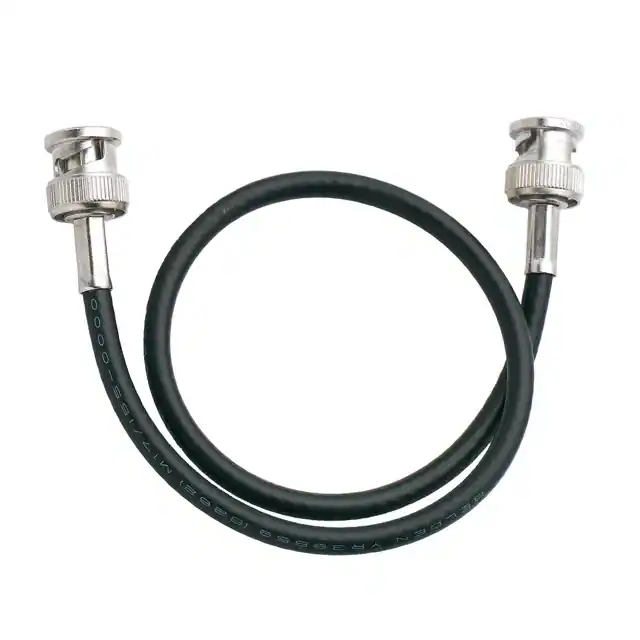

BU-5050-B-24-0COAX CBL BNC TO BNC |
4,012 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
415-0205-MM500COAX CBL SMA TO SMA |
4,175 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
0732305345COAX CBL MCX TO MCX |
4,619 |
|
Datasheet |
73230 | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|

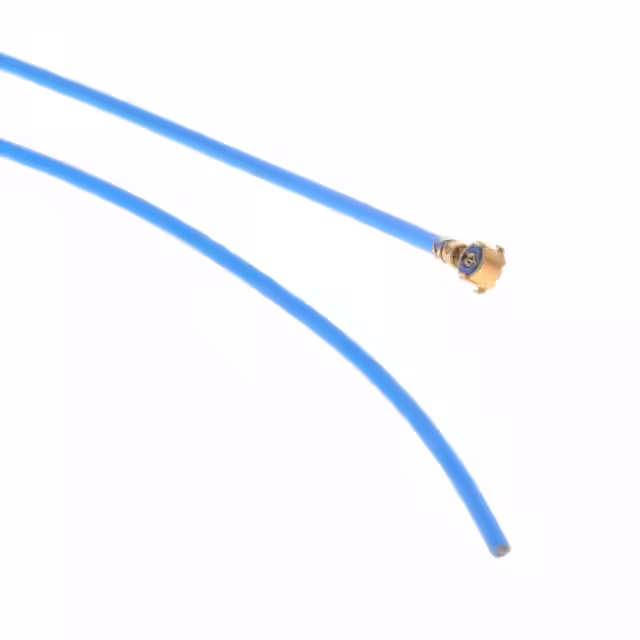

1064542-1COAX CBL SSMT TO CABLE |
3,229 |
|
Datasheet |
- | Bag | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 20.08" (510.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|

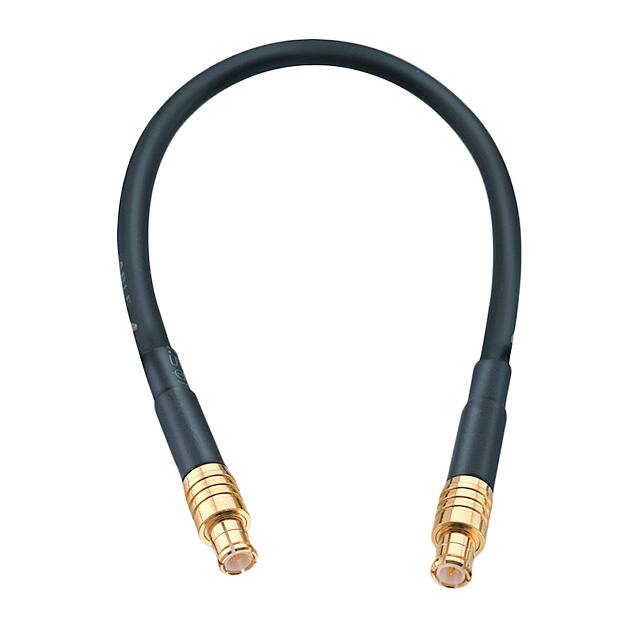

65506506515303COAX CBL MCX TO MCX |
1,080 |
|
Datasheet |
WR-CXASY | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
095-902-501-050COAX CBL RP-SMA TO AMC4 |
3,875 |
|
Datasheet |
- | Bag | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
415-0203-MM75COAX CBL SMA TO MMCX |
3,134 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 2.953" (75.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
415-0203-MM200COAX CBL SMA TO MMCX |
3,046 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
CCSMX-FBM-RG178-18COAX CBL SMA TO MMCX |
2,097 |
|
Datasheet |
CCSMX | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX-MM-RG316-24COAX CBL MMCX TO MMCX |
4,827 |
|
Datasheet |
CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
415-0201-MM75COAX CBL RP-SMA TO RP-SMA |
2,001 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 2.953" (75.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
