Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSI-RSFB-100-UFFRCOAX CBL U.FL TO RP-SMA |
4,666 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
A-2PA-113-100B2COAX CBL AMMC TO AMMC |
2,444 |
|
Datasheet |
- | Bag | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-113-205B2COAX CBL U.FL AMC-U.FL AMC |
4,760 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.071" (205.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

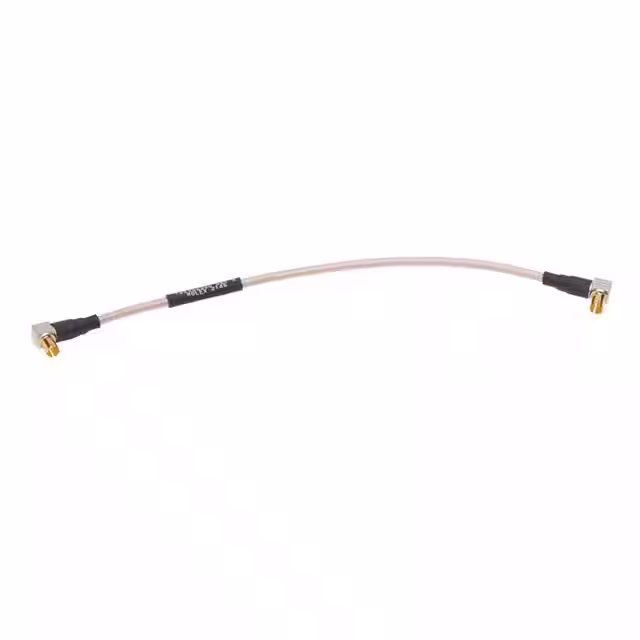

0732305330COAX CBL MCX TO MCX |
1,049 |
|
Datasheet |
73230 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-179 | 75 Ohms | - | - | - | - | - | - | - | - |
|
336314-12-0150COAX CBL U.FL AMC TO RP-SMA |
2,931 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
A-2PA-113-300B2COAX CBL AMMC TO AMMC |
2,977 |
|
Datasheet |
- | Bag | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
336314-14-0250COAX CBL U.FL AMC TO RP-SMA |
2,510 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
A-1PA-132-100B2COAX CBL U.FL AMC-U.FL AMC |
2,757 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-2PA-081-500B2COAX CBL AMMC TO AMMC |
2,353 |
|
Datasheet |
- | Bag | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

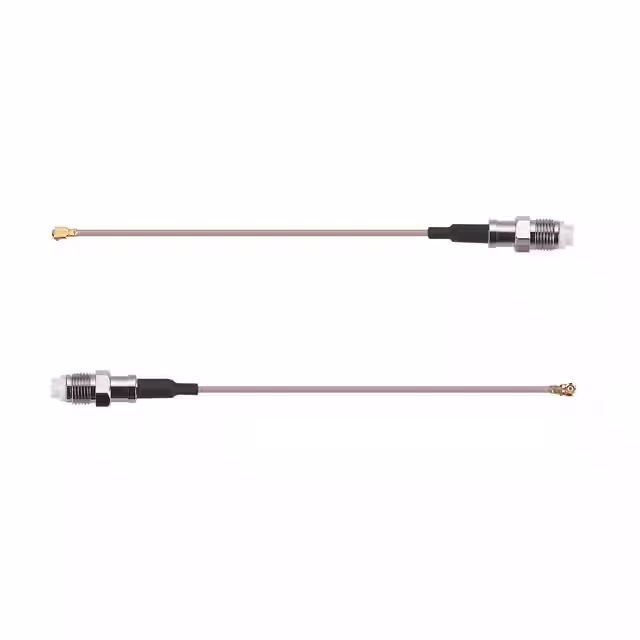

CAB.695COAX CBL U.FL MHF1 TO FME |
1,257 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), I-PEX MHF1 to FME | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | FME Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 1.3 GHz | Copper | Shielded | 105°C | - | - |
|
|
A-1PA-113-999B2COAX CBL U.FL AMC-U.FL AMC |
4,657 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.33" (999.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
636209050100COAX CBL U.FL TO RP-SMA |
3,743 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636209110150COAX CBL U.FL TO RP-SMA |
3,696 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636209100150COAX CBL U.FL TO RP-SMA |
2,427 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636209040200COAX CBL U.FL TO RP-SMA |
3,679 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636209080150COAX CBL U.FL TO RP-SMA |
2,453 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636209110200COAX CBL U.FL TO RP-SMA |
3,867 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636207050100COAX CBL U.FL TO SMA |
4,487 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636207040100COAX CBL U.FL TO SMA |
4,369 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636207100150COAX CBL U.FL TO SMA |
1,175 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
