Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
188859-01COAX CBL SMB TO SMB |
1,934 |
|
- |
- | Box | Active | SMB to SMB | SMB Jack | Female | Free Hanging (In-Line) | - | SMB Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
763389-01COAX CBL BNC TO SMB |
3,616 |
|
- |
- | Box | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Jack | Female | Free Hanging (In-Line) | - | 24.02" (610.00mm) | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|

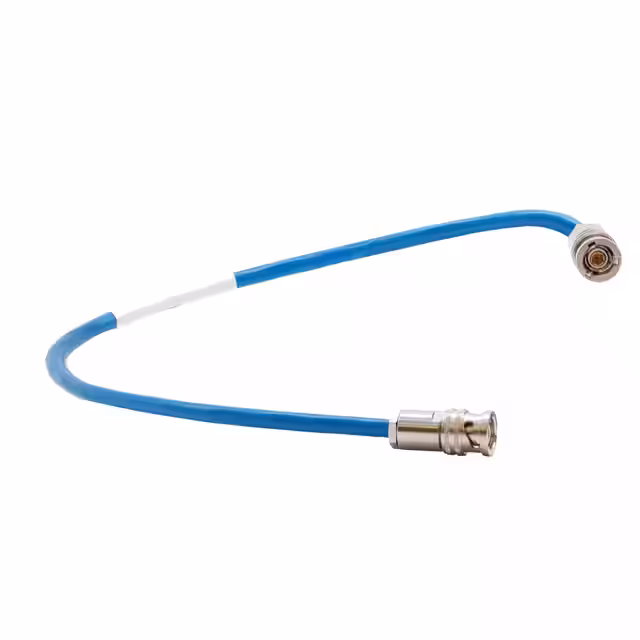

21-14-M4.0COAX CBL TRB TO TRB |
3,280 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
RF085-92SP-92SP-0914COAX CBL 2.92MM TO 2.92MM |
4,553 |
|
Datasheet |
RF085 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 35.98" (914.00mm) | 0.085" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | Shielded | -65°C ~ 125°C | - | - |
|
|
763444-01COAX CBL SMA TO SMA |
3,923 |
|
- |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 15.00" (381.00mm) | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
7012-1289COAX CBL SMP TO 2.92MM |
2,699 |
|
Datasheet |
- | Bag | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

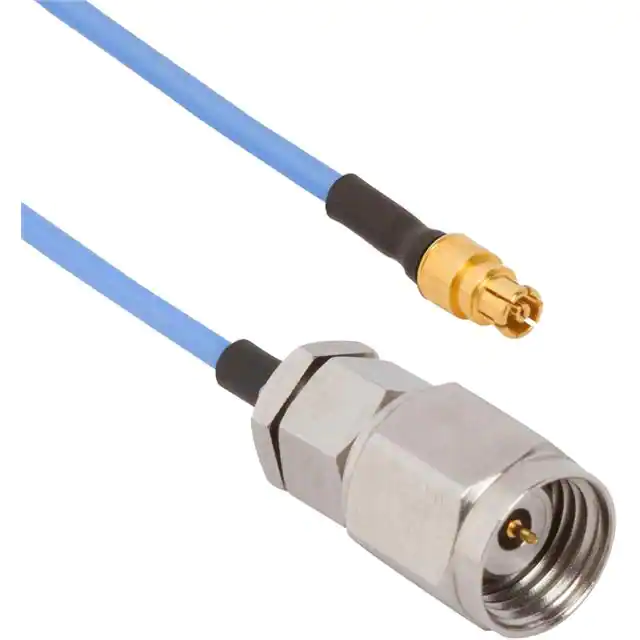

7016-0069COAX CBL SMPM TO 2.4MM |
2,822 |
|
Datasheet |
- | Bulk | Active | SMPM to 2.4mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7016-0068COAX CBL SMPM TO 2.4MM |
1,014 |
|
Datasheet |
- | Bulk | Active | SMPM to 2.4mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
5151-DKF-0012COAX CBL N-TYPE TO N-TYPE |
3,603 |
|
Datasheet |
DKT | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | HP 190S | - | - | 50 Ohms | 26 GHz | Gray | Shielded | -65°C ~ 200°C | - | - |
|
|
PMA SF126E/11PC35/11PC35/914MMCOAX CBL 3.5MM TO 3.5MM |
4,955 |
|
Datasheet |
Sucoflex® 100 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 5.50mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
SF126E/11PC35/11PC35/914MMCOAX CBL 3.5MM TO 3.5MM |
4,010 |
|
- |
- | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 26.5 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
5151-DKF-0048COAX CBL N-TYPE TO N-TYPE |
1,976 |
|
Datasheet |
DKT | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | HP 190S | - | - | 50 Ohms | 26 GHz | Gray | Shielded | -65°C ~ 200°C | - | - |
|
|
SF526S/11PC35/11PC35/24INCOAX CBL 3.5MM TO 3.5MM |
4,183 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 7.70mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
SF550S/11SK/11SK/36INCOAX CBL 2.92MM TO 2.92MM |
3,885 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
PMASF526S/11PC35/11PC35/24INCOAX CBL 3.5MM TO 3.5MM |
1,876 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 7.70mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -50°C ~ 125°C | - | - |
|
|
SF550S/11PC24/11PC24/24INCOAX CBL 2.4MM TO 2.4MM |
4,725 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
PMA SF550S/11PC24/11PC24/24INCOAX CBL 2.4MM TO 2.4MM |
4,998 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
415-0107-250COAX CBL U.FL TO CABLE |
2,070 |
|
Datasheet |
UMC | Bag | Active | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PL-081-050B2COAX CBL U.FL AMC-U.FL AMC |
3,423 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
A-1PL-081-100B2COAX CBL U.FL AMC-U.FL AMC |
1,904 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
