Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-303-024COAX CBL BNC TO MCX |
3,755 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
2249-E-144COAX CBL BNC TO BNC |
3,949 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
2249-K-60COAX CBL BNC TO BNC |
4,526 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
415-0035-018COAX CBL SMA TO SMA |
1,346 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
CO-316RASMAX2-005COAX CBL SMA TO SMA |
1,784 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | - | - | Brown | Shielded | 200°C | - | - |
|
145104-05-24.00COAX CBL SMB MINI-SMB MINI |
2,279 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Copper | Shielded | - | - | - |
|

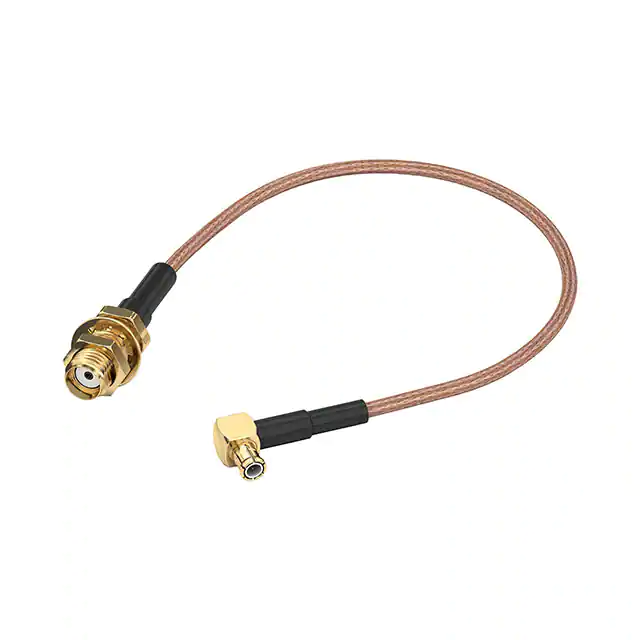

65501710515301COAX CBL SMA TO MCX |
4,404 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|

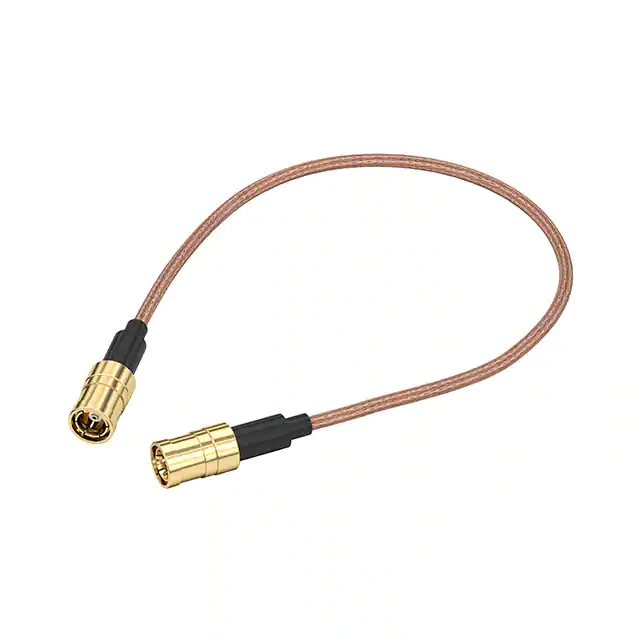

65502810415301COAX CBL SMB TO SMB |
2,341 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
CO-316RASMAX2-007.5COAX CBL SMA TO SMA |
3,686 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-316 | 50 Ohms | - | - | - | Brown | Shielded | 200°C | - | - |
|
|
65502810515301COAX CBL SMB TO SMB |
4,814 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
BU-P2249-C-180COAX CBL BNC TO BNC |
4,693 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
095-725-119-006COAX CBL SMP TO SMP |
4,985 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|

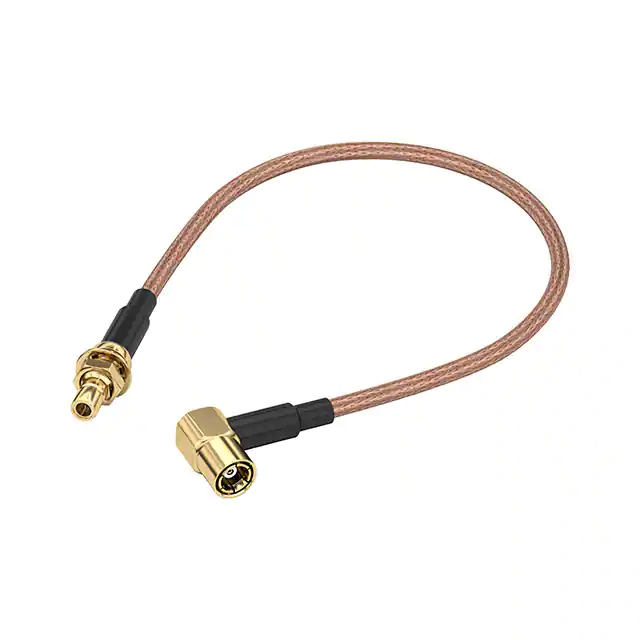

65503110515301COAX CBL SMB TO SMB |
4,828 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
FL141-6NM+COAX CBL N-TYPE TO N-TYPE |
1,353 |
|
Datasheet |
FL141 | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
095-902-450-003COAX CBL SMA TO SMA |
3,875 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
BU-P2249-C-240COAX CBL BNC TO BNC |
2,713 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|

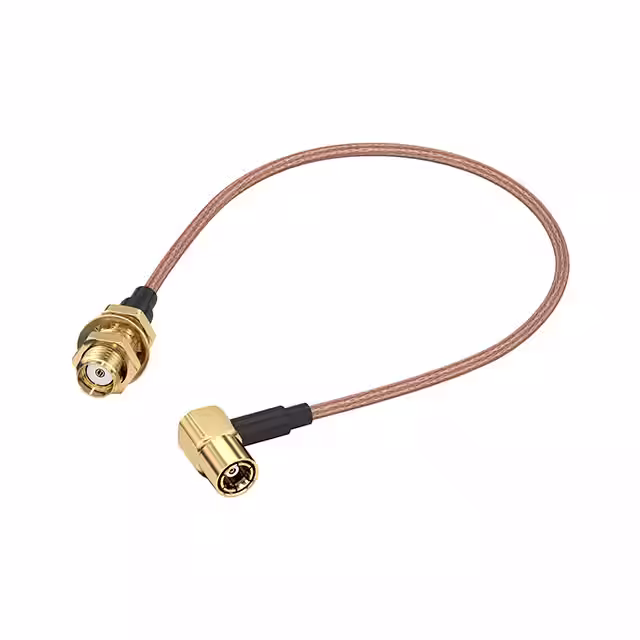

65503210415301COAX CBL SMA TO SMB |
3,258 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
095-902-450-005COAX CBL SMA TO SMA |
1,611 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
095-902-450-009COAX CBL SMA TO SMA |
2,917 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
CCSMA-MM-RG316DS-12PCOAX CBL SMA TO SMA |
1,479 |
|
Datasheet |
CCSMA | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
