Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8499-48COAX CBL 7/16 DIN TO N-TYPE |
1,935 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C8498-48COAX CBL 7/16 DIN TO N-TYPE |
1,384 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C8496-48COAX CBL 7/16 DIN TO N-TYPE |
4,114 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

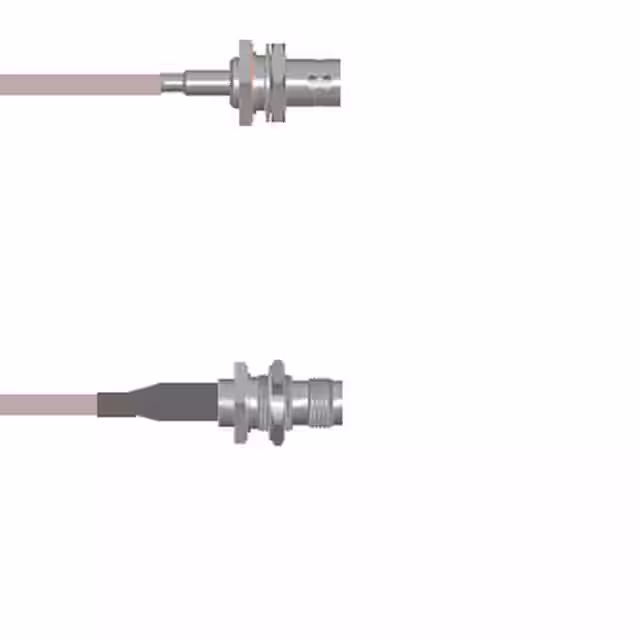

Q-0404F0005006iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

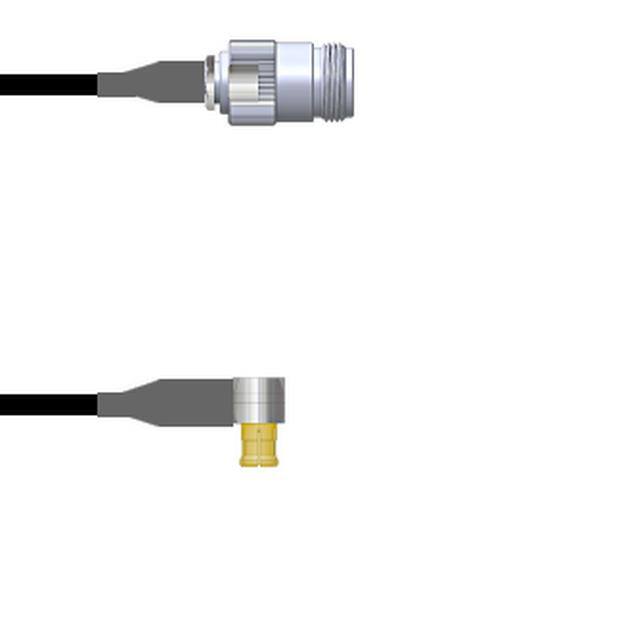

Q-2001A0003012iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

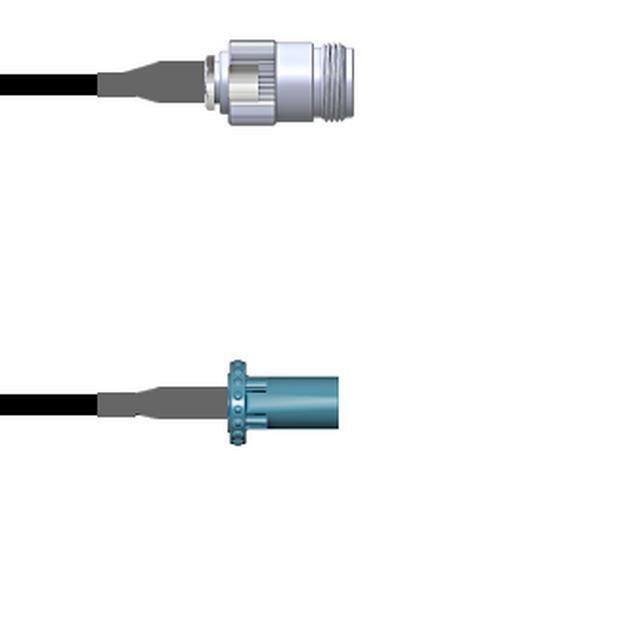

Q-2005A0003072iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

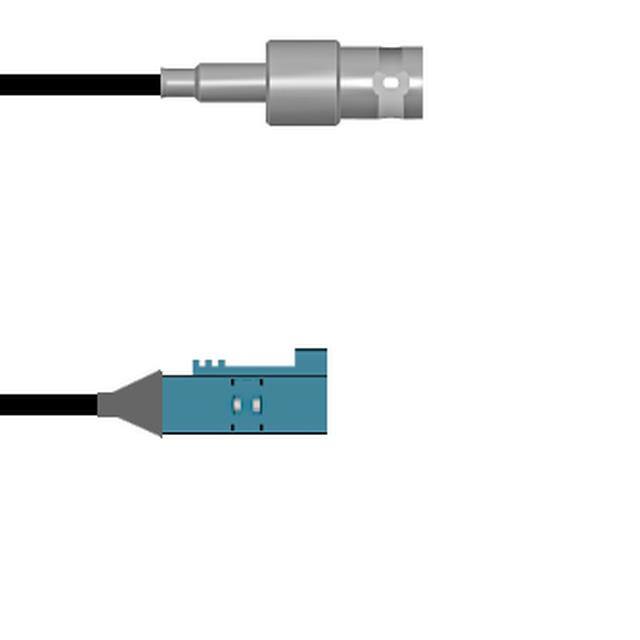

Q-0305E0003001MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
Q-1W04J0008.25MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
PE3C9821-12COAX CBL TNC TO TNC |
4,911 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
Q-0304G0003001MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-0304G0003002MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

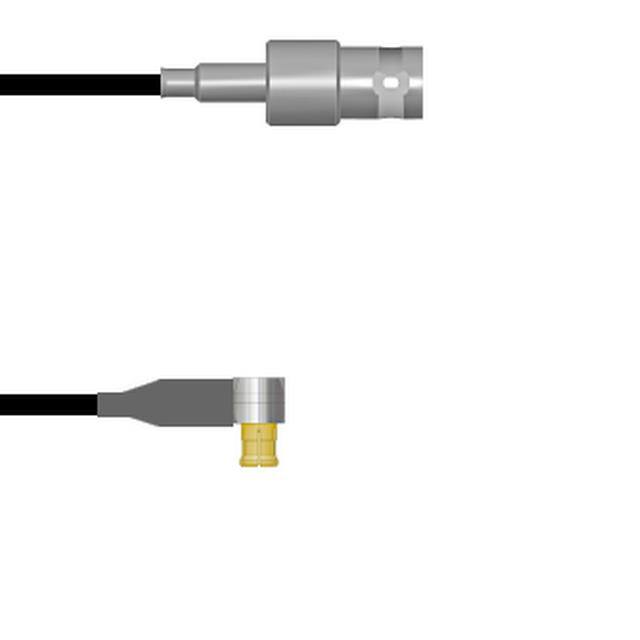

Q-0301A0003003iCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3C10285-24Plenum SMA Male to SMA Male Low |
2,010 |
|
- |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Red | - | -40°C ~ 125°C | - | - |
|
|
PE3C7228-36UHF Male to Straight Cut Lead Lo |
3,762 |
|
Datasheet |
- | Retail Package | Active | UHF to Cable | UHF Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|

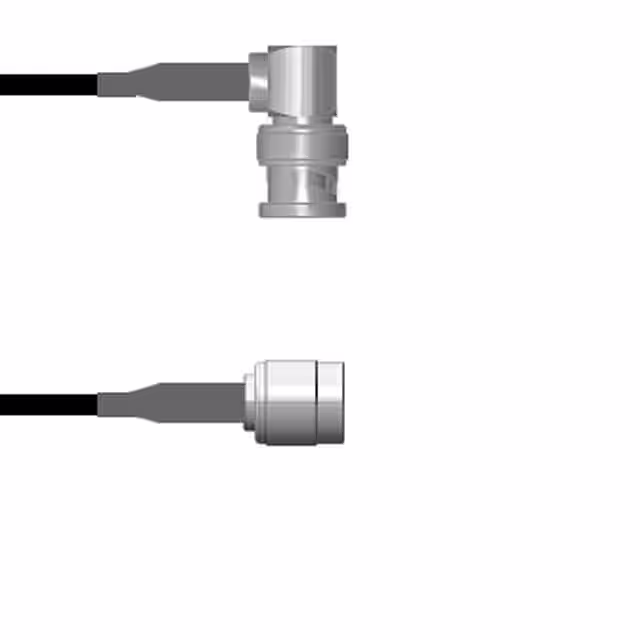

Q-0D0520003003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-0304F0003002MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE39450-12COAX CBL N-TYPE TO MMCX |
3,635 |
|
Datasheet |
- | Retail Package | Active | N-Type to MMCX | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -65°C ~ 125°C | - | - |
|
|
PE3C3854-24Snap-On MMBX Plug to SMA Male Ca |
2,096 |
|
- |
- | Retail Package | Active | SMA to MMBX | SMA Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C6207-12Plenum SMA Male to SMA Male Low |
3,297 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C0120-36COAX CBL N-TYPE TO N-TYPE |
1,962 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
