Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

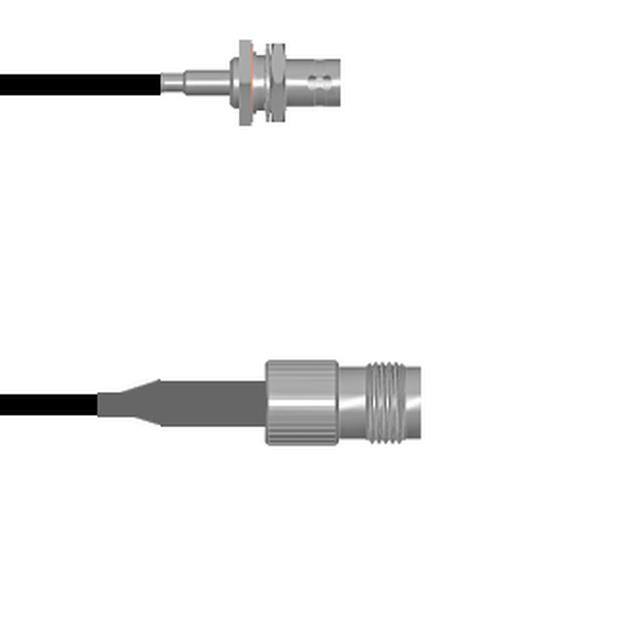

Q-0404G0003009iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

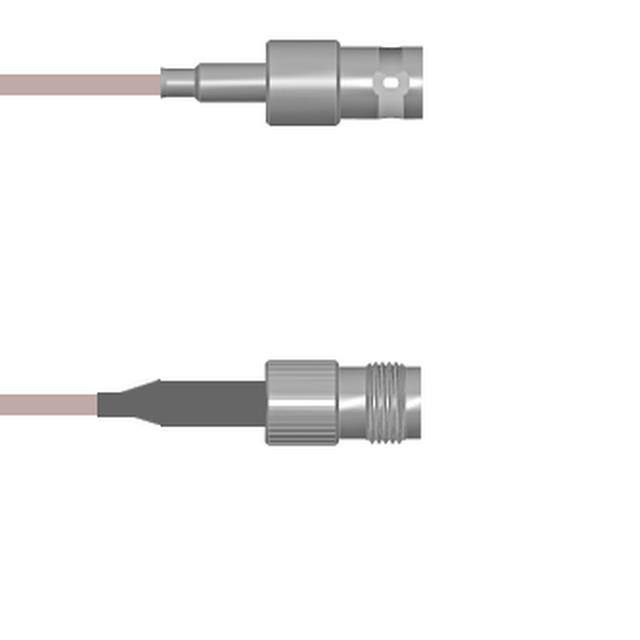

Q-0304G0005.25MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

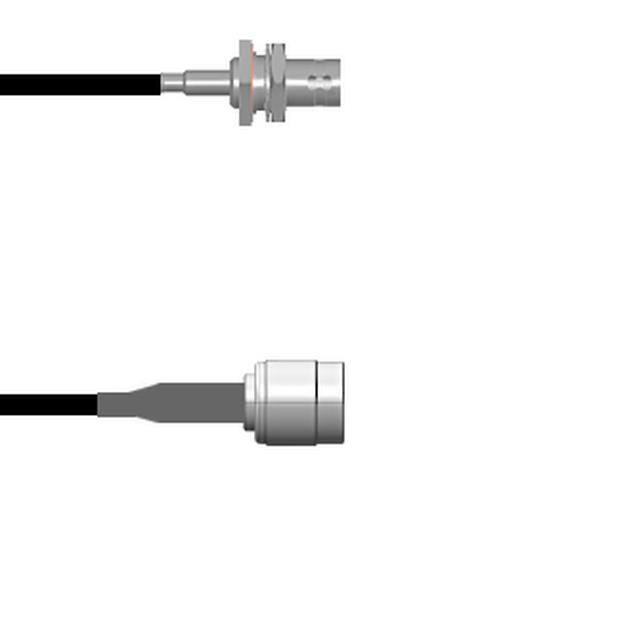

Q-040520003001MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

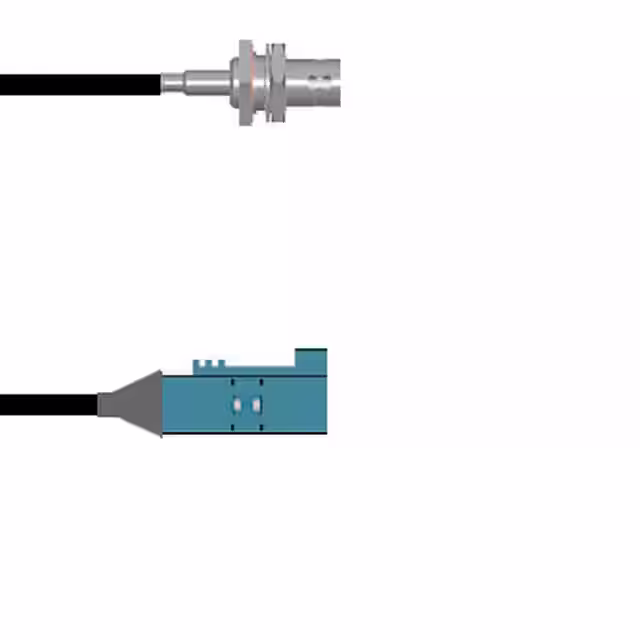

Q-0405E0003.25MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-1W05F0008009iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-0404G0003.25MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-2N04J0008009iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

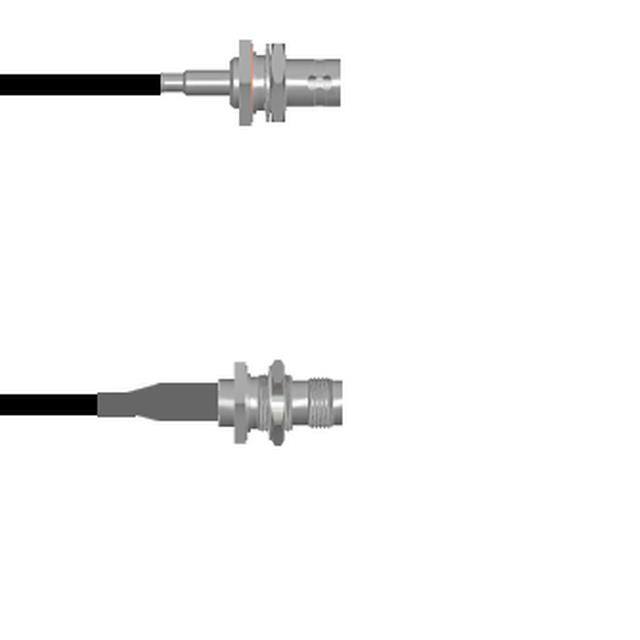

Q-0404F0003018iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3CA1102-9COAX CBL SMA TO CABLE |
3,109 |
|
Datasheet |
- | Retail Package | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 9.000" (228.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | 125°C | - | - |
|
|
PE38755H-36COAX CBL FAKRA TO FAKRA |
3,653 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
PE3C8010-36COAX CBL SMA TO SMA |
3,384 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 150°C | - | - |
|

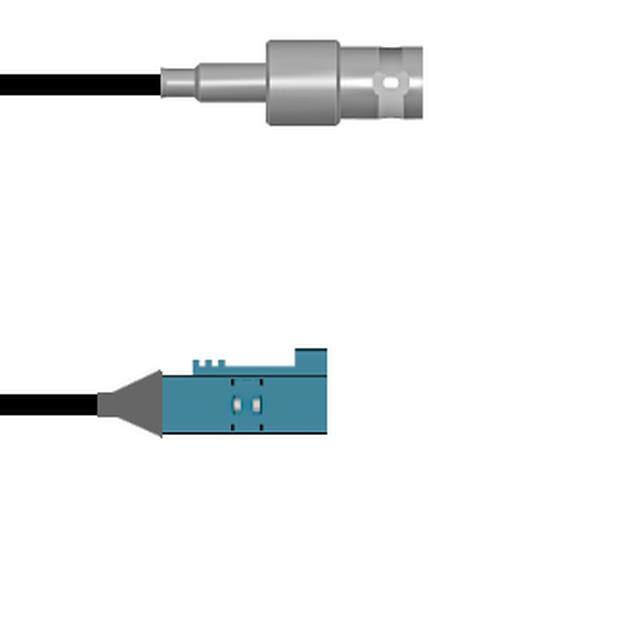

Q-0305E0003036iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

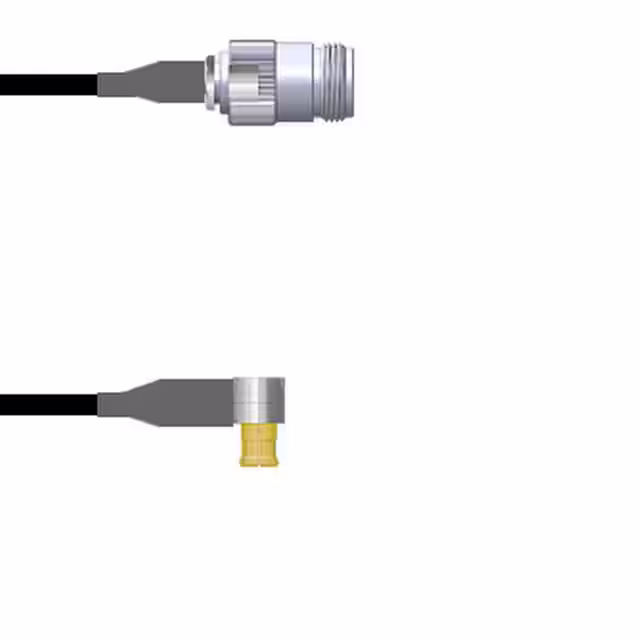

Q-2001A0003009iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

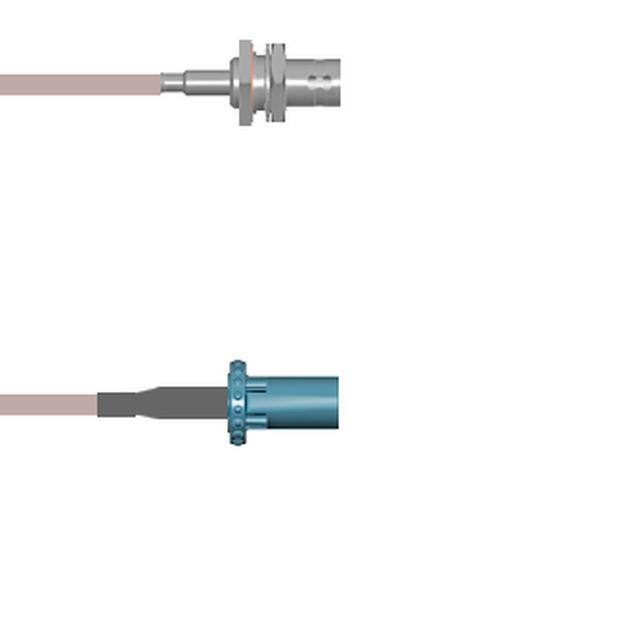

Q-0405A0005.25MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-0304G0003036iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

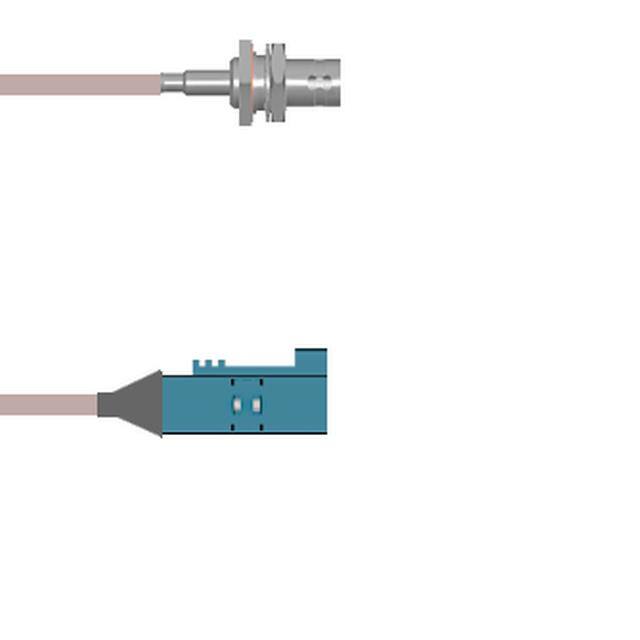

Q-0405E0005003iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

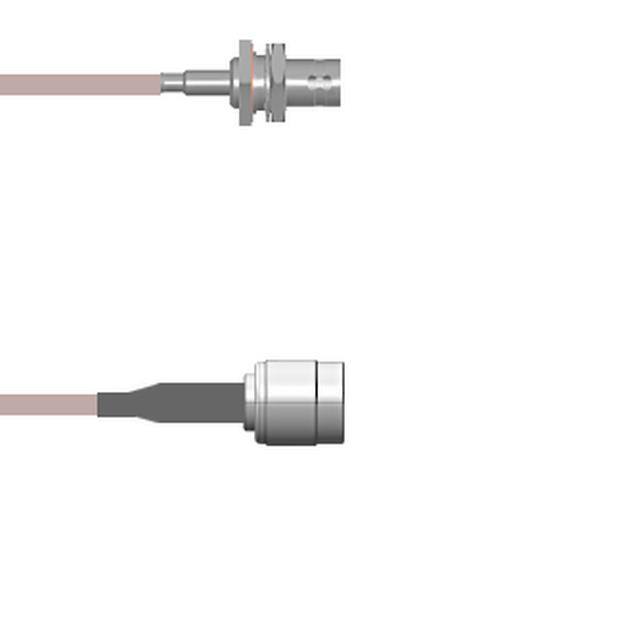

Q-040520005012iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-1W05F0008.25MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
Q-0404G0005003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0305200050.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
