Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE38137-7275 Ohm F Male to 75 Ohm F Male R |
1,018 |
|
- |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3W05336/HS-12MMCX Jack to SMB Jack Bulkhead C |
4,783 |
|
Datasheet |
- | Retail Package | Active | MMCX to SMB | MMCX Jack | Female | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3C4132-200CMCOAX CBL 7/16 DIN TO N-TYPE |
4,669 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE34486LF-12SMC Plug Right Angle to SMC Jack |
4,676 |
|
Datasheet |
- | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE38753D-36Bordeaux FAKRA Plug to FAKRA Jac |
1,015 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174A | 50 Ohms | 50 Ohms | - | - | Black | - | - | - | - |
|
|
PE39344D-36COAX CBL SMA TO FAKRA |
3,601 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE38138-12075 Ohm F Male to 75 Ohm F Female |
3,885 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | F-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PE-P195 | 75 Ohms | 75 Ohms | 75 Ohms | - | Blue | - | - | - | - |
|
|
PE3C4063-8COAX CBL SMA TO MMBX |
3,386 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Free Hanging (In-Line) | - | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C4053-6Snap-On MMBX Plug Right Angle to |
4,091 |
|
- |
- | Retail Package | Active | SMA to MMBX | SMA Plug | Male | Free Hanging (In-Line) | - | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3TC1200-36COAX CBL N-TYPE TO N-TYPE |
4,772 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | - | - | - | - | - |
|
|
PE39344H-24COAX CBL SMA TO FAKRA |
1,854 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE38132-60COAX CBL BNC TO BNC |
2,935 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Blue | - | - | - | - |
|
|
PE38132/RD-48COAX CBL BNC TO BNC |
2,644 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Red | - | - | - | - |
|
|
PE38132/RD-36COAX CBL BNC TO BNC |
3,413 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Red | - | - | - | - |
|
|
PE38132/YW-60COAX CBL BNC TO BNC |
4,938 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Yellow | - | - | - | - |
|
|
PE3C4050-12COAX CBL MMBX TO MMBX |
1,170 |
|
Datasheet |
- | Retail Package | Active | MMBX to MMBX | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMBX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE39474-24COAX CBL TNC TO TNC |
3,720 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
|

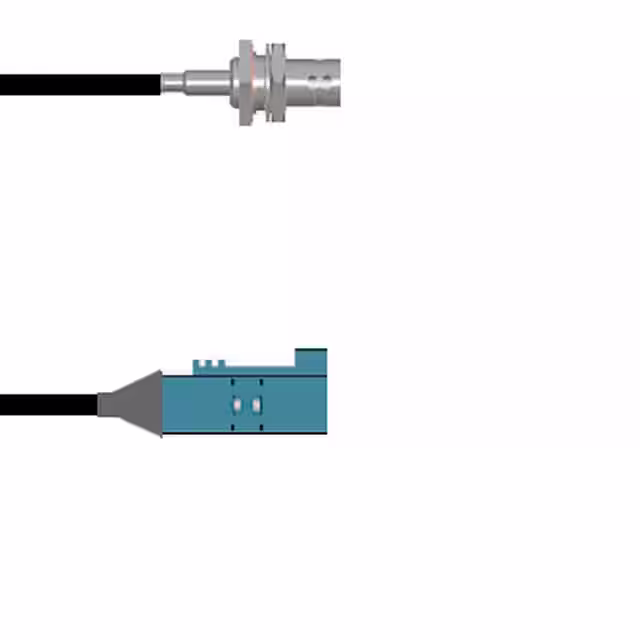

Q-0405E0003009iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

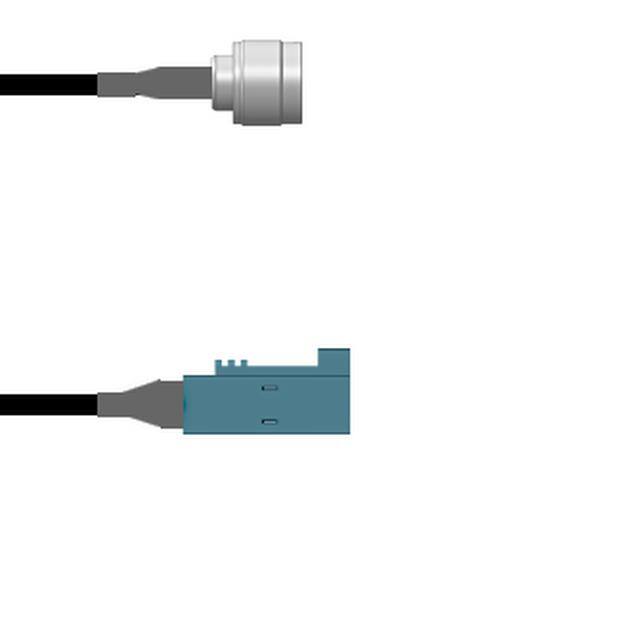

Q-2N05F0008.25MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-0305E0005.25MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
