Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8873/BR-120COAX CBL HD-BNC TO HD-BNC |
1,646 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/GY-120COAX CBL HD-BNC TO HD-BNC |
3,681 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/BK-120COAX CBL HD-BNC TO HD-BNC |
4,470 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/OR-120COAX CBL HD-BNC TO HD-BNC |
2,309 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/RD-120COAX CBL HD-BNC TO HD-BNC |
1,132 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/VL-120COAX CBL HD-BNC TO HD-BNC |
1,736 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/GR-120COAX CBL HD-BNC TO HD-BNC |
4,286 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/WH-120COAX CBL HD-BNC TO HD-BNC |
3,220 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
PE3C8873/YW-120COAX CBL HD-BNC TO HD-BNC |
2,244 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
PE3W04417-24COAX CBL SMA TO SMA |
3,413 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
Q-200520003003MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0304F0003048iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

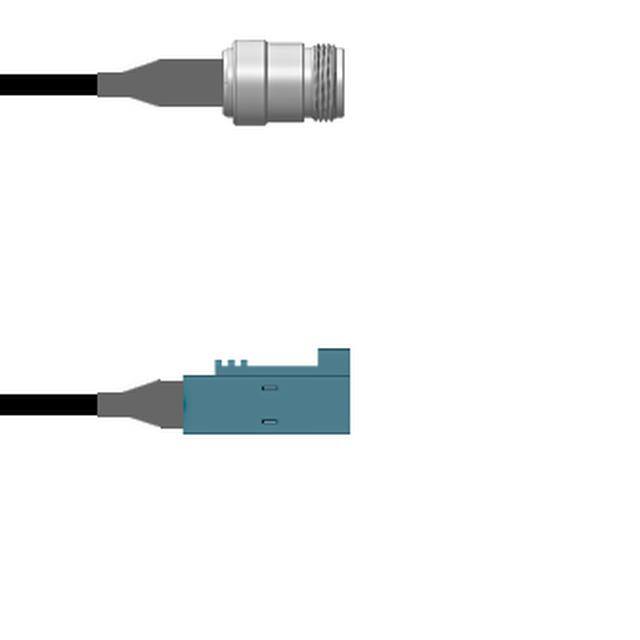

Q-1W05F0008012iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
Q-0N058001A0.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-59 | - | - | 75 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
PE3C9831-12COAX CBL SMA TO N-TYPE |
4,741 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

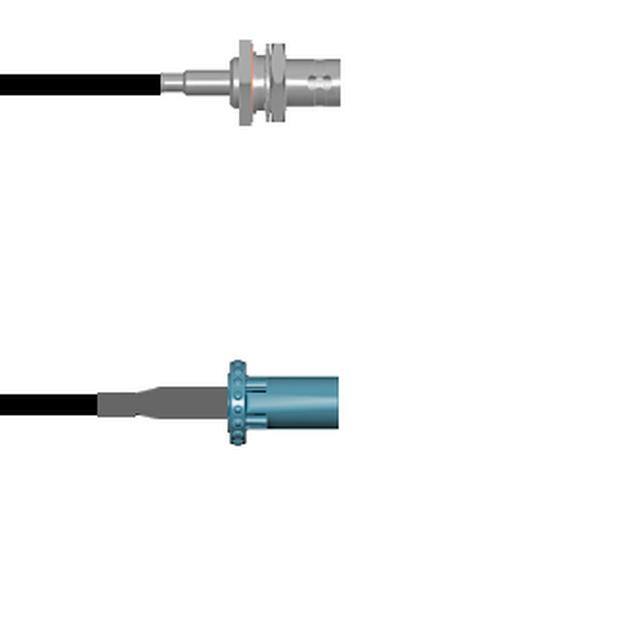

Q-0405A0003001MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
Q-2N04J0008012iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0404F0003024iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

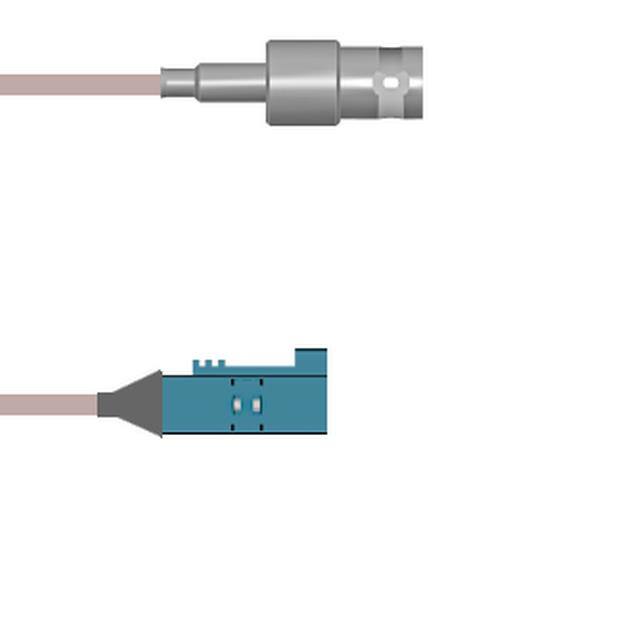

Q-0305E0005012iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
Q-200520005024iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
