Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095FJZFJZAGM100COAX CBL FAKRA TO FAKRA |
1,137 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | Fakra Gen 3.5 Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Z Code | -40°C ~ 85°C | - | - |
|
RF316-01SP1-06BJ2-0915COAX CBL N-TYPE TO SMA |
2,030 |
|
Datasheet |
RF316 | Bag | Active | N-Type to SMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.024" (915.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
336306-12-0200COAX CBL U.FL AMC TO RP-SMA |
3,676 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-275-024COAX CBL TNC TO TNC |
1,220 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
CAB.V08COAX CBL NMO TO SMA |
2,097 |
|
Datasheet |
- | Bag | Active | NMO to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | NMO | Non-Gendered | Panel Mount | Direct Mount | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 53 Ohms | - | Black | Shielded | - | - | - |
|

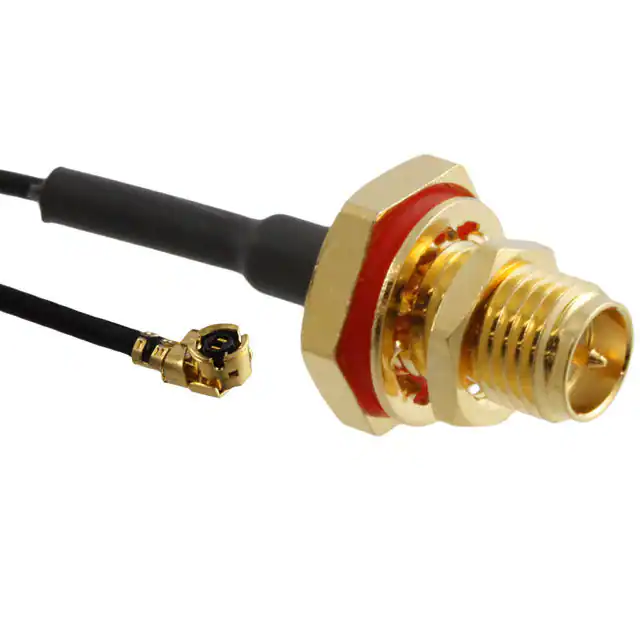

336306-12-0250COAX CBL U.FL AMC TO RP-SMA |
3,813 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-282-100COAX CBL RP-TNC TO AMC4 |
4,521 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
265103-01-36.00COAX CBL MMCX TO MMCX |
1,619 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
CA-FMFM-ZZ00150WPCOAX CBL FAKRA TO FAKRA |
3,914 |
|
Datasheet |
CA | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
|
RF174-02RP1-05BJ2-0305COAX CBL MCX TO TNC |
2,658 |
|
Datasheet |
RF174 | Bag | Active | MCX to TNC | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
336303-12-0300COAX CBL U.FL AMC TO SMA |
3,867 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
RF174-03RP1-06BJ2-0152COAX CBL MMCX TO N-TYPE |
3,040 |
|
Datasheet |
RF174 | Bag | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
095-850-281-100COAX CBL AMC4 TO TNC |
3,702 |
|
Datasheet |
- | Bag | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
415-0081-007COAX CBL SMA TO SMA |
1,735 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
|
RF174-07SP1-07RP1-0305COAX CBL SMB TO SMB |
2,011 |
|
Datasheet |
RF174 | Bag | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
095-850-282-150COAX CBL RP-TNC TO AMC4 |
4,944 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
135101-R1-09.00COAX CBL SMA TO SMA |
3,833 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
145104-01-M1.00COAX CBL SMB TO SMB |
1,594 |
|
Datasheet |
- | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-850-263-150COAX CBL U.FL AMC TO RP-TNC |
3,039 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
0732309321COAX CBL SMA TO SMA |
3,272 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Silver | - | - | - | - |
