TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1K5SMPC36APH1500W, 36V, 5%, UNIDIRECTIONAL, |
5,870 |
|
Datasheet |
TO-277, 3-PowerDFN | 1K5SMPC | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.1A | 1500W (1.5kW) | No | - | - | 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMPC4.6U |
|

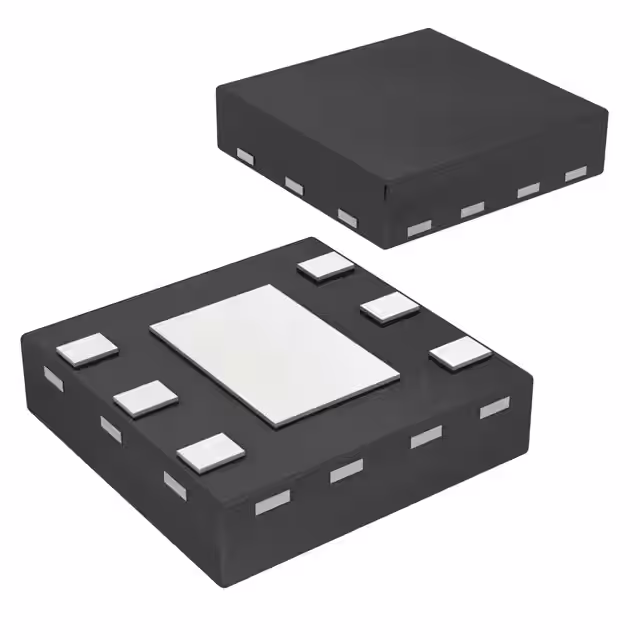

DF6F6.8MCTC(TE85L)TVS DIODE 5VWM 24VC CST6C |
4,990 |
|
- |
6-XFDFN Exposed Pad | - | Cut Tape (CT) | Active | Steering (Rail to Rail) | - | 4 | 5V (Max) | 6V | 24V | 2.5A (8/20µs) | - | Yes | General Purpose | 0.6pF @ 1MHz | - | - | - | Surface Mount | CST6C |
|
PACDN009MRTVS DIODE 5.5V 8MSOP |
3,980 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 5 | - | 5.5V | - | 13V | - | - | No | General Purpose | 3pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
5.0SMCJ14ATVS, UNI-DIR, 5000W, 14V, DO-214 |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJx | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 216A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ13ATVS, UNI-DIR, 5000W, 13V, DO-214 |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJx | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ12ATVS, UNI-DIR, 5000W, 12V, DO-214 |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJx | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ20ATVS, UNI-DIR, 5000W, 20V, DO-214 |
2,940 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJx | Cut Tape (CT) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 155A | 5000W (5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

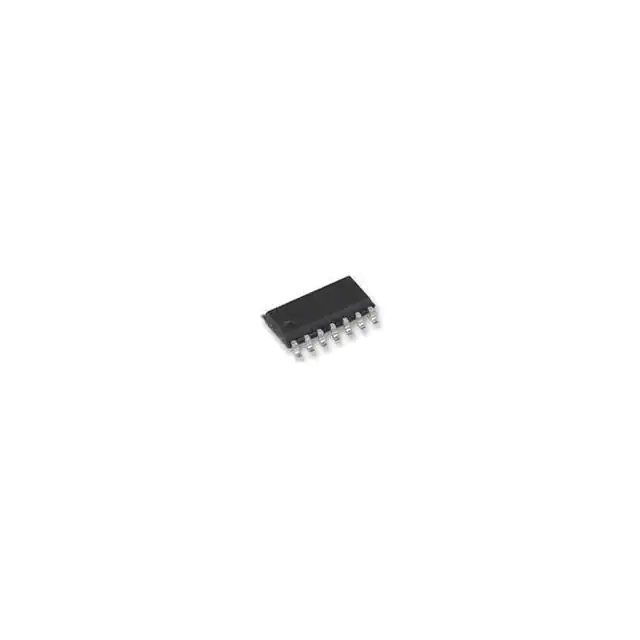

S14C15-8TVS DIODE 15VWM 24VC 14SO |
2,500 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | S14CXX-8 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 8 | 15V (Max) | 16.7V | 24V | 1A (8/20µs) | 300W | Yes | General Purpose | 70pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SO |
|
|
S14C12-8TVS DIODE 12VWM 19VC 14SO |
2,296 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | S14CXX-8 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 8 | 12V (Max) | 13.3V | 19V | 1A (8/20µs) | 300W | Yes | General Purpose | 80pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SO |
|
|
S14C24-8TVS DIODE 24VWM 43VC 14SO |
1,440 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | S14CXX-8 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 8 | 24V (Max) | 26.7V | 43V | 1A (8/20µs) | 300W | Yes | General Purpose | 45pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SO |
|
P6KE250CATVS DO15 214V 600W BIDIR |
1,198 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 2 | 214V | 237V | 344V | 1.75A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
|
S14C03-8TVS DIODE 3.3VWM 7VC 14SO |
1,030 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | S14CXX-8 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 8 | 3.3V (Max) | 4V | 7V | 1A (8/20µs) | 300W | Yes | General Purpose | 300pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SO |
;;2.jpg)
|
SMCJ20ATVS DIODE 20VWM 32.4VC |
3,180 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
PESD2USB3B/CXTVS DIODE 10WLCSP |
3,845 |
|
Datasheet |
10-UFBGA, WLCSP | PESDxUSB3B/C | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 4V (Max) | 6V | - | 9.5A (8/20µs) | - | No | HDMI, USB | 0.29pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-WLCSP (1.57x1.17) |
|
TPSMC51ATVS DIODE 43.6VWM 70.1VC DO214AB |
2,978 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 43.6V | 48.5V | 70.1V | 21.7A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg)
|
P6KE600CATVS DIODE 512VWM 828VC DO204AC |
1,954 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 2 | 512V | 570V | 828V | 1A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
SMDB36CTVS DIODE 36VWM 51VC 8-SO |
1,784 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDB36C | Tape & Reel (TR) | Active | Zener | - | 4 | 36V (Max) | 40V | 51V | 1A (8/20µs) | 500W | No | General Purpose | 40pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
TP1.5KE16CATVS DIODE 13.6VWM 22.5VC DO201 |
1,597 |
|
Datasheet |
DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 13.6V | 15.2V | 22.5V | 67.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
.jpg)
|
SMCJ36CAE3/TR13TVS DIODE 36VWM 58.1VC DO214AB |
1,591 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDA12C-4TVS DIODE 12VWM 19VC 8-SO |
5,730 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 12V (Max) | 13.3V | 19V | 1A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
