TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDA36CTVS DIODE 36VWM 60VC 8-SO |
3,778 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDA36C | Tape & Reel (TR) | Active | Zener | - | 4 | 36V (Max) | 40V | 60V | 1A | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA36C-4-2TVS DIODE 36VWM 60VC 8-SO |
2,241 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDAXXC-4-2 | Tape & Reel (TR) | Active | Zener | - | 4 | 36V (Max) | 40V | 60V | 1A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA36C-5TVS DIODE 36VWM 60VC 8-SO |
2,170 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDAXXC-5 s | Tape & Reel (TR) | Active | Zener | - | 5 | 36V (Max) | 40V | 60V | 1A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SMCJ15CATVS DIODE 15VWM 24.4VC |
2,780 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 61.48A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|

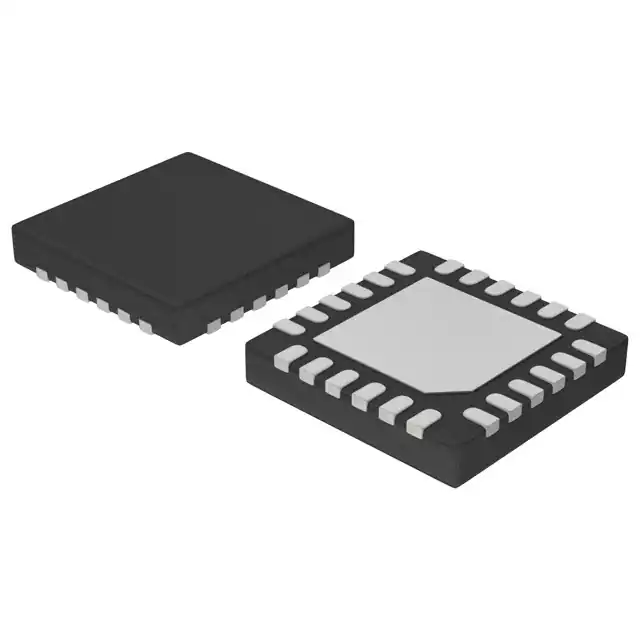

ESD8024MNTAGTVS DIODE 2.5VWM 8VC 24QFN |
6,464 |
|
Datasheet |
24-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 24 | - | 2.5V (Max) | 5.5V | 8V | 15A (8/20µs) | - | No | General Purpose | 4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 24-QFN (4x4) |
|
NSPM2052MUT5GTVS DIODE 3UDFN |
7,215 |
|
Datasheet |
3-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 5.1V | 9V | 120A (8/20µs) | - | No | - | 400pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 3-UDFN (1.6x1) |
|
SMA6T10AYTVS DIODE 8.6VWM 18.6VC SMA |
2,505 |
|
Datasheet |
DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 8.6V | 9.5V | 18.6V | 215A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMCJ24CATVS DIODE 24VWM 38.9VC |
4,200 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.56A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ28ATVS DIODE 28VWM 45.4VC |
2,700 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 33.04A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ51A R5GTVS DIODE 51VWM 82.4VC DO214AA |
3,420 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 51V | 56.7V | 82.4V | 7.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1SMB7.5A TR13 PBFREETVS DIODE 7.5VWM 12.9VC SMB |
2,990 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ110CA-13-FTVS DIODE 110V 177V SMB |
2,194 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
LCE22ATVS DIODE 22VWM 35.5VC DO201 |
1,200 |
|
Datasheet |
DO-201AA, DO-27, Axial | LCE | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 42A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SMDA05-7TVS DIODE 5VWM 9.8VC 8-SO |
4,735 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 7 | - | 5V (Max) | 6V | 9.8V | 1A | 300W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
3.0SMI150ATVS DIODE 150VWM 243VC SMC |
2,750 |
|
Datasheet |
DO-214AB, SMC | 3.0SMI | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 12.3A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
LCE7.5ATVS DIODE 7.5VWM 12.9VC DO201 |
2,400 |
|
Datasheet |
DO-201AA, DO-27, Axial | LCE | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 100A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
|
SMDA15-7TVS DIODE 15VWM 24VC 8-SO |
1,705 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 7 | - | 15V (Max) | 16.7V | 24V | 1A | 300W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA03-7TVS DIODE 3.3VWM 7VC 8-SO |
1,504 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 7 | - | 3.3V (Max) | 4V | 7V | 1A | 300W | No | General Purpose | 300pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
1SMB22CA TR13 PBFREETVS DIODE 22VWM 35.5VC SMB |
5,228 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 16.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB10CA TR13 TIN/LEADTVS DIODE 10VWM 17VC SMB |
2,614 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
