TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBSAC5.0-TPTVS DIODE 5VWM 10VC DO214AA |
566 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 5V | 7.6V | 10V | 44A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6SMB400AHM3_C/HTVS DIODE 342VWM 548VC DO214AA |
6,750 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 342V | 380V | 548V | 1.1A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
5.0SMCJ30CA5000W, 30V, SMC, TRANSIENT VOLTA |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ33CA5000W, 33V, SMC, TRANSIENT VOLTA |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ24CA5000W, 24V, SMC, TRANSIENT VOLTA |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 129A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ36A5000W, 36V, SMC, TRANSIENT VOLTA |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ60CA5000W, 60V, SMC, TRANSIENT VOLTA |
3,000 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 51.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ58CA5000W, 58V, SMC, TRANSIENT VOLTA |
2,990 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5.0SMCJ51CA5000W, 51V, SMC, TRANSIENT VOLTA |
2,980 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMCJ75CA5000W, 75V, SMC, TRANSIENT VOLTA |
2,970 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 75V | 83.3V | 121V | 41.4A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
ESD7383NCTBGTVS DIODE 3VWM 10VC 4WLCSP |
11,837 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 3 | - | 3V | 6V | 10V | 2.5A (8/20µs) | 50W | Yes | USB OTG | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|

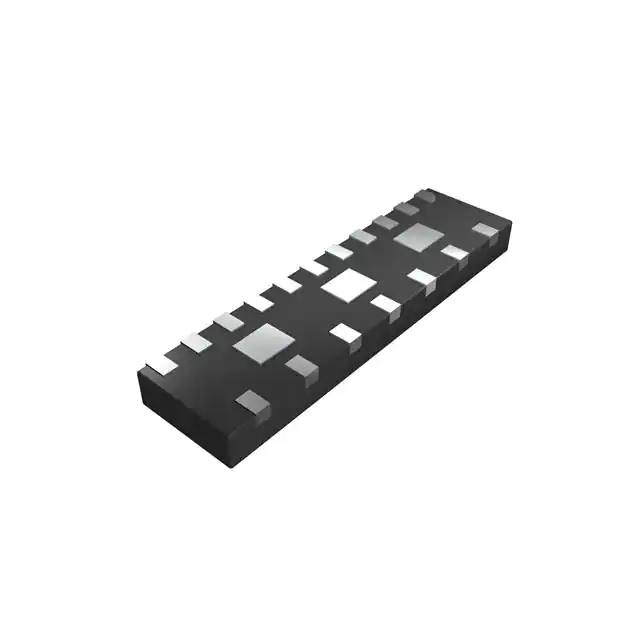

AZ1083-08FLOW CAP ESD HIGH SPEED 8-CH 3.3V |
2,800 |
|
Datasheet |
18-UFDFN Exposed Pad | - | Strip | Active | Zener | - | 8 | 3.3V (Max) | 4.5V | 16.5V (Typ) | - | - | No | - | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN5515P18E |
|
NSPU5221MUTBGTVS DIODE 22VWM 35VC 6UDFN |
2,490 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 22V | 24V | 35V | 120A (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-UDFN (1.8x2) |
|
SMDA03LCCTVS DIODE 3.3VWM 7VC 8-SO |
2,233 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.3V (Max) | 4V | 7V | 1A | 300W | No | Ethernet | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
TPSMC13CATVS DIODE 11.1VWM 18.2VC DO214AB |
1,544 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 83.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TPSMC75ATVS DIODE 64.1VWM 103VC DO214AB |
1,431 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 64.1V | 71.3V | 103V | 14.8A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
SZ1SMA60AT3GZEN TVS 400W 60V UNI DO-214AC |
8,256 |
|
Datasheet |
DO-214AC, SMA | SZ1SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 4.1A | 400W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
P6SMB30A R5GTVS DIODE 25.6VWM 41.4VC DO214AA |
2,484 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 15A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
VS14VUA1LAMTFTRTVS DIODE 14VWM 23.2VC PMDTM |
2,470 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PMDTM |
|
SMCJE440ATVS DIODE 440VWM 713VC SMC |
2,260 |
|
Datasheet |
DO-214AB, SMC | SMCJE | Tape & Reel (TR) | Active | Zener | 1 | - | 440V | 492V | 713V | 2.1A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
