TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V3Z1B2LP-7BDATALINE PROTECTION PP X1-DFN100 |
2,333 |
|
- |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 17V | 4A (8/20µs) | 250mW | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
ESDULC0524P5-TPTVS DIODES |
3,971 |
|
Datasheet |
10-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 7V | 12V | 4.5A (8/20µs) | 54W | Yes | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
VBUS03B1-SD0HG4-08TVS DIODE 3.3VWM 18VC CLP0603 |
2,854 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 6V | 18V | 2.5A | 45W | No | - | 0.29pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
CSPSBULC5V0LB-TPInterface |
8,357 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 8V | 8V | 5A (8/20µs) | 35W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
ESD15VL-TPInterface |
7,222 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 15V (Max) | 16.7V | 30V | 10A (8/20µs) | 300W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
CSP5V0L-TPInterface |
9,043 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 5V (Max) | 5.8V | 10.5V | 50A (8/20µs) | 500W | No | General Purpose | 110pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
AOZ8S207BLS-011 CHANNEL BIDIRECTIONAL TVS |
5,549 |
|
- |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 1V (Max) | 1.3V | 5.6V (Typ) | 5A (8/20µs) | 28W | No | HDMI, USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8S305BLS-121 CHANNEL BIDIRECTIONAL ULTRA LO |
6,614 |
|
- |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 15.5V (Typ) | 4A (8/20µs) | - | No | HDMI, USB | 0.25pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
FC09B1606NS-0LED ESD PROTECTION FC BI-DIRECTI |
6,427 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PESD15VS1UB-QFPESD15VS1UB-Q/SOD523/SC-79 |
2,291 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | CAN, Telecom | 32pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
AOZ8S530BLS-051CH 5.0V BIDIRECTIONAL 28A HIGH |
6,174 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.8V | 7.6V (Typ) | 28A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8S204BLS-24LINEAR IC |
5,997 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 27V | 6.5V (Typ) | 8.5A (8/20µs) | 50W | No | HDMI, USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8660BLS-011CH 1.0V BIDIRECTIONAL 0.15PF TV |
9,464 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 1V (Max) | 1.5V | 7V (Typ) | 5A (8/20µs) | 35W | No | USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8251BDI-121 CHANNEL 12V BIDIRECTIONAL TVS |
3,330 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 25V | 1.5A (8/20µs) | - | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|
|
AOZ8S530BLS-031CH 3.3V BIDIRECTIONAL 35A HIGH |
2,260 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 7.5V (Typ) | 35A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
ESD3V3WTTVS DIODE 3.3VWM 8VC SOD-523 |
7,311 |
|
Datasheet |
SC-79, SOD-523 | - | Bulk | Active | Zener | 1 | - | 3.3V | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 30pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|

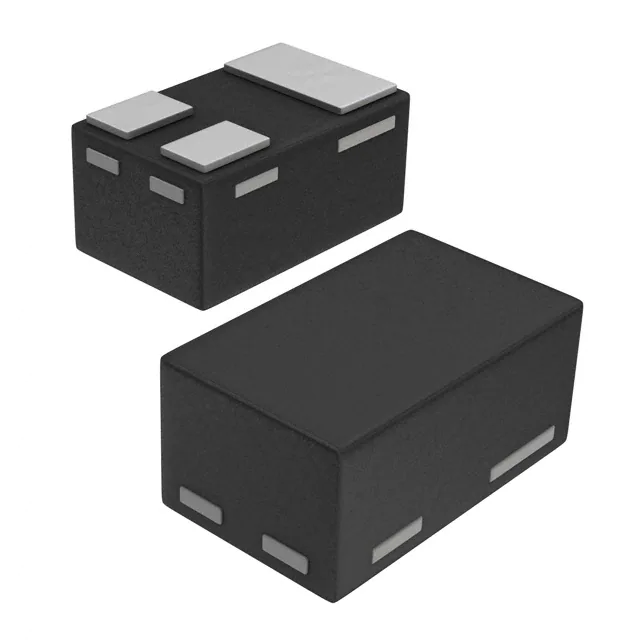

ESDSBL5V0LTB-TPDIODE ESD PROTECTION DFN |
3,774 |
|
Datasheet |
SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.3V | 12V | 8A (8/20µs) | 96W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
ESDSBLC12VLB-TPInterface |
2,937 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 12V (Max) | 13V | 22V | 7A (8/20µs) | 120W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
CPDZC5V0BU-HFDIODE ESD 5VWM 56W 0201/DFN0603 |
9,365 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 14V | 4A (8/20µs) | 56W | No | General Purpose | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
FC09B1606NLLED ESD PROTECTION FC BI-DIRECTI |
4,016 |
|
- |
- | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
