TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFD8C4.5L01TVS ESD SOD-882 4.5V 20VE |
5,321 |
|
Datasheet |
SOD-882 | SFD8C4.5L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V | 4.6V | 20V (Typ) | 40A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
ESDULC3V6AE2-TPTVS DIODES |
8,623 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 5V | 14V | 2.5A (8/20µs) | 35W | No | General Purpose | 0.18pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
VCUT05G1-SD0HG4-08TVS DIODE 5.5VWM 11VC CLP0603 |
9,153 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6.5V | 13V | 6A (8/20µs) | 78W | No | - | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
VCUT03G1-SD0HG4-08TVS DIODE 3.3VWM 13VC CLP0603 |
9,899 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.5V | 13V | 6A (8/20µs) | 78W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
|
AOZ8S204BLS-301 CHANNEL BIDIRECTIONAL 0.15PF T |
4,033 |
|
- |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V (Max) | 33V | 6.8V | 8.5A (8/20µs) | 55W | No | USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
CSP5V0AE-TPInterface |
4,470 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 6V | 9.5V | 18A (8/20µs) | 140W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP0201 |
|

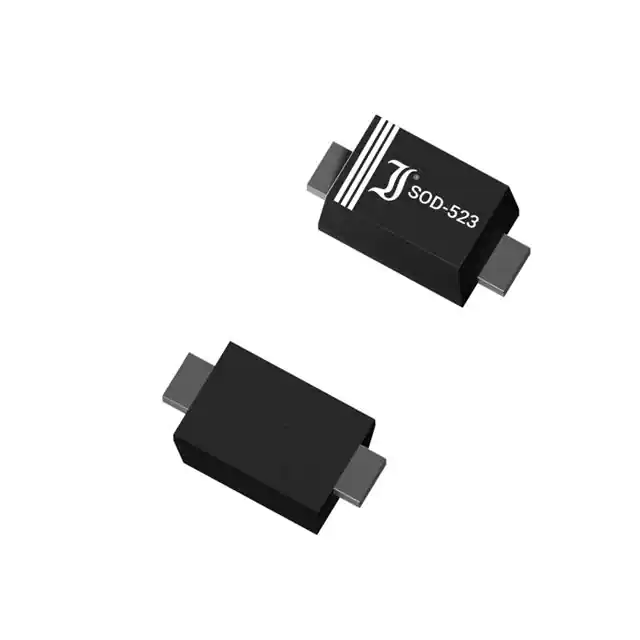

ESD5B5V0WTTVS DIODE 5VWM 12.5VC SOD-523 |
8,252 |
|
Datasheet |
SC-79, SOD-523 | - | Bulk | Active | Zener | - | 1 | 5V | 5.8V | 12.5V | 4A (8/20µs) | 50W | No | General Purpose | 32pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
T12S5A-7Surge Protection PP SOD523 T&R 3 |
9,851 |
|
Datasheet |
SC-79, SOD-523 | - | Bulk | Active | Zener | 1 | - | 12V | 14.1V | 25V | 12A (8/20µs) | 300W | No | General Purpose | 85pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
MKZ7V5,LM7.5 V ZENER DIODE, SOT23 |
6,498 |
|
- |
TO-236-3, SC-59, SOT-23-3 | MKZ | Tape & Reel (TR) | Active | Zener | 1 | - | 6V (Max) | 7V | 14V | 9.5A (8/20µs) | 190W | No | General Purpose | 78pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
CSPHSB3V3AE-TPESD,3.3V,CSP0201 |
8,940 |
|
- |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.7V | 8.5V | 20A (8/20µs) | 170W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP0201 |
|
|
CPDZC5V0HA-HFDIODE ESD 5VWM 88W 0201/DFN0603 |
7,204 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 11V | 8A (8/20µs) | 88W | No | General Purpose | 17pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
SDD8A12L01TVS ESD SOD-882 12V 28V |
7,203 |
|
Datasheet |
SOD-882 | SDD8A12L01 | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 28V (Typ) | 8A (8/20µs) | 240W | No | General Purpose | 55pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
D14V0H1U2LP-7BSURGE PROTECTION PP X1-DFN1006-2 |
4,401 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V (Max) | 15V | 32V | 3A (8/20µs) | 96W | No | General Purpose | 76pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
D18V0H1U2LP-7BGENERAL PROTECTION PP X1-DFN1006 |
6,398 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | 32V | 11A (8/20µs) | 350W | No | General Purpose | 58pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
CPDZD5V0HE-HFDIODE ESD 5VWM 100W 0201/DFN0603 |
8,786 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | 12.5V | 8A (8/20µs) | 100W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN0603-2L |
|
|
VCUT15G1-SD0HG4-08ESD PROTECTION DIODE CLP060315V |
6,736 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 15.8V | 26V | 2.5A (8/20µs) | 65W | No | - | 5.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
VCUT10G1-SD0HG4-08TVS DIODE 10VWM 18VC CLP0603 |
5,325 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V (Max) | 11V | 18V | 4A (8/20µs) | 72W | No | General Purpose | 7.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
|
ESD5Z15TVS DIODE 15VWM 30VC SOD-523 |
4,417 |
|
Datasheet |
SC-79, SOD-523 | - | Bulk | Active | Zener | 1 | - | 15V | 16.5V | 30V | 6A (8/20µs) | 240W | No | - | 40pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
AOZ8851ADI-071 CHANNEL 7V TVS |
4,111 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 7V (Max) | 6.5V | 13V | 4A (8/20µs) | - | No | General Purpose | 0.22pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|

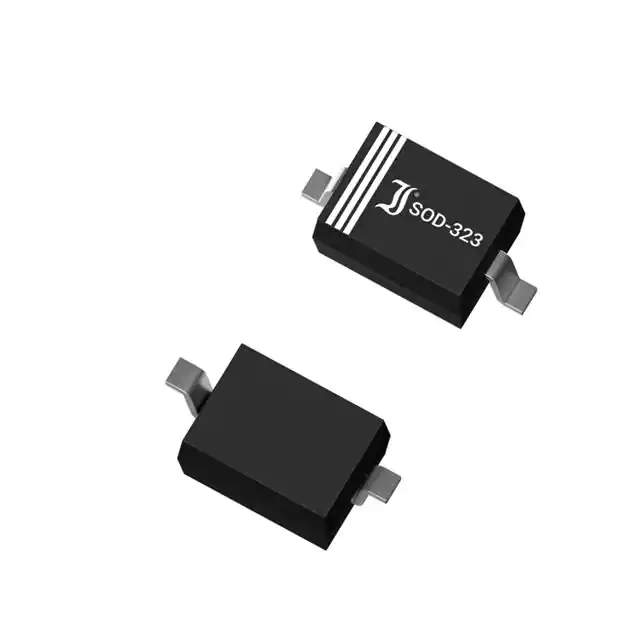

ESD3Z24GWTVS DIODE 24VWM 35VC SOD-323 |
5,303 |
|
Datasheet |
SC-76, SOD-323 | - | Bulk | Active | Zener | 1 | - | 24V | 26.7V | 35V | 16A (8/20µs) | 550W | No | General Purpose | 80pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
