Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-FPX030030015-80-C1-R0HEATSINK 30X30X15MM R-TAB FP |
2,695 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040010-01-C1-R0HEATSINK 40X40X10MM XCUT FP |
2,082 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035030-59-C3-R0HEATSINK 35X35X30MM L-TAB FP |
3,218 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 8.08°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX035035030-89-C3-R0HEATSINK 35X35X30MM R-TAB FP |
1,823 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 8.08°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045015-160-C3-R0HEATSINK 45X45X15MM L-TAB CP |
2,463 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 6.75°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040030-185-C3-R0HEATSINK 40X40X30MM R-TAB CP |
1,844 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 3.45°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX045045015-188-C3-R0HEATSINK 45X45X15MM R-TAB CP |
4,830 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 6.75°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050025-15-C3-R0HEATSINK 50X50X25MM XCUT FP |
2,649 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

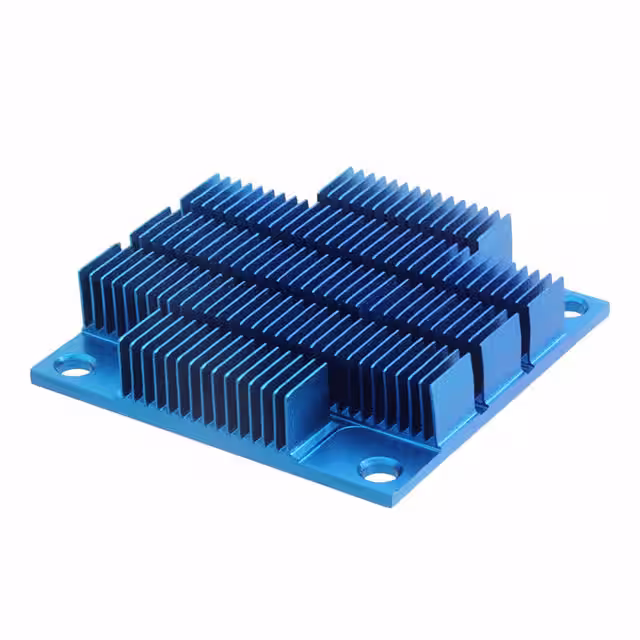

ATS-FPX045045010-105-C1-R1HEATSINK 45X45X9.5MM XCUT SFP |
1,359 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 28.19°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040025-94-C3-R0HEATSINK 40X40X25MM R-TAB FP |
1,622 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 9.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX054054015-126-C3-R0HEATSINK 54X54X15MM XCUT CP |
2,945 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 5.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045020-119-C1-R0HEATSINK 45X45X20MM XCUT CP |
1,473 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 4.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-74-C2-R0HEATSINK 25X25X15MM R-TAB T766 |
1,065 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035035-90-C3-R0HEATSINK 35X35X35MM R-TAB FP |
1,072 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 6.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-113-C2-R0HEATSINK 40X40X10MM XCUT T766 |
2,144 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX035035035-60-C3-R0HEATSINK 35X35X35MM L-TAB FP |
2,925 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 6.50°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-168-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
2,738 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 7.01°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

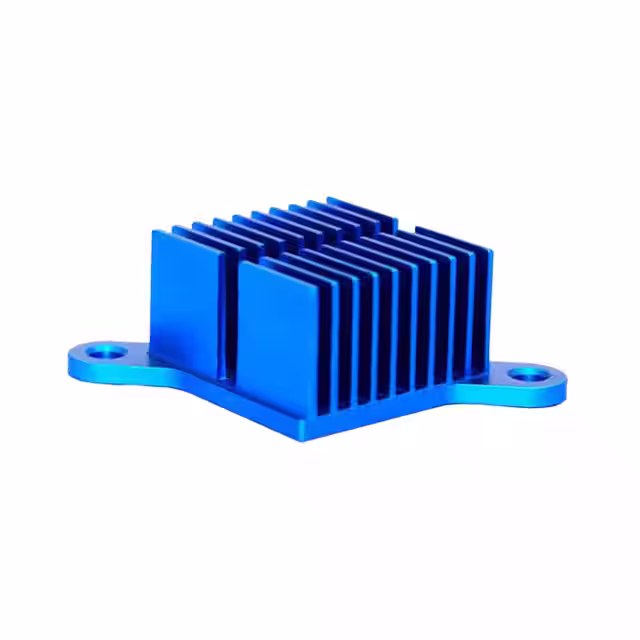

ATS-P1-140-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
4,032 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 7.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030015-142-C2-R0HEATSINK 30X30X15MM L-TAB CP |
1,160 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 10.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX045045020-161-C3-R0HEATSINK 45X45X20MM L-TAB CP |
4,617 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 4.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
