Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX035035035-180-C3-R0HEATSINK 35X35X35MM R-TAB CP |
4,868 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050020-14-C3-R0HEATSINK 50X50X20MM XCUT FP |
2,102 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX035035035-152-C3-R0HEATSINK 35X35X35MM L-TAB CP |
1,511 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX060060010-21-C1-R0HEATSINK 60X60X10MM XCUT FP |
1,999 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040020-63-C3-R0HEATSINK 40X40X20MM L-TAB FP |
1,516 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX040040020-93-C3-R0HEATSINK 40X40X20MM R-TAB FP |
3,979 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045015-68-C3-R0HEATSINK 45X45X15MM L-TAB FP |
2,348 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045010-187-C3-R0HEATSINK 45X45X10MM R-TAB CP |
2,802 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

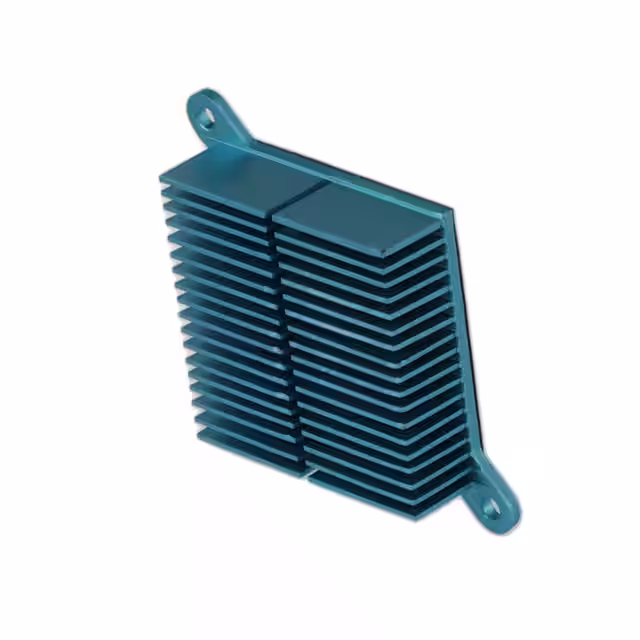

ATS-FPX045045015-98-C3-R0HEATSINK 45X45X15MM R-TAB FP |
3,783 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX045045010-159-C3-R0HEATSINK 45X45X10MM L-TAB CP |
3,950 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX030030010-169-C1-R0HEATSINK 30X30X10MM R-TAB CP |
4,745 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040025-184-C3-R0HEATSINK 40X40X25MM R-TAB CP |
2,446 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040013-104-C1-R1HEATSINK 40X40X12.7MM XCUT SFP |
2,197 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 25.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
SA000-13007PUSHPIN HEATSINK 43X43X10MM |
3,384 |
|
Datasheet |
- | Bulk | Active | Top Mount | - | Push Pin | Square, Fins | 1.705" (43.30mm) | 1.713" (43.50mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | - |
|
ATS-FPX025025010-73-C3-R0HEATSINK 25X25X10MM R-TAB FP |
2,355 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 29.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045030-71-C1-R0HEATSINK 45X45X30MM L-TAB FP |
1,965 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX045045030-101-C1-R0HEATSINK 45X45X30MM R-TAB FP |
4,423 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040010-61-C1-R0HEATSINK 40X40X10MM L-TAB FP |
4,338 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-166-C2-R0HEATSINK 25X25X15MM R-TAB T766 |
4,201 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030015-50-C1-R0HEATSINK 30X30X15MM L-TAB FP |
1,098 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
