Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX025025010-165-C1-R0HEATSINK 25X25X10MM R-TAB CP |
4,622 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035030-89-C1-R0HEATSINK 35X35X30MM R-TAB FP |
4,014 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045030-191-C1-R0HEATSINK 45X45X30MM R-TAB CP |
4,792 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX035035030-59-C1-R0HEATSINK 35X35X30MM L-TAB FP |
2,949 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035025-58-C3-R0HEATSINK 35X35X25MM L-TAB FP |
2,921 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX035035025-88-C3-R0HEATSINK 35X35X25MM R-TAB FP |
3,227 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

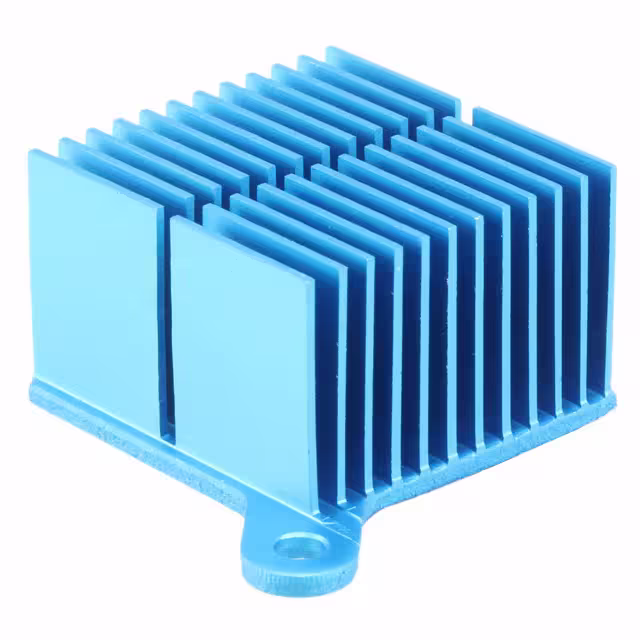

ATS-FPX030030020-81-C2-R0HEATSINK 30X30X20MM R-TAB FP |
2,230 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 14.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040010-153-C3-R0HEATSINK 40X40X10MM L-TAB CP |
2,372 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX040040010-181-C3-R0HEATSINK 40X40X10MM R-TAB CP |
1,180 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX025025010-73-C1-R0HEATSINK 25X25X10MM R-TAB FP |
2,329 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045006-196-C1-R0HEATSINK 45X45X6MM XCUT CP |
2,417 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.236" (6.00mm) | - | 18.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

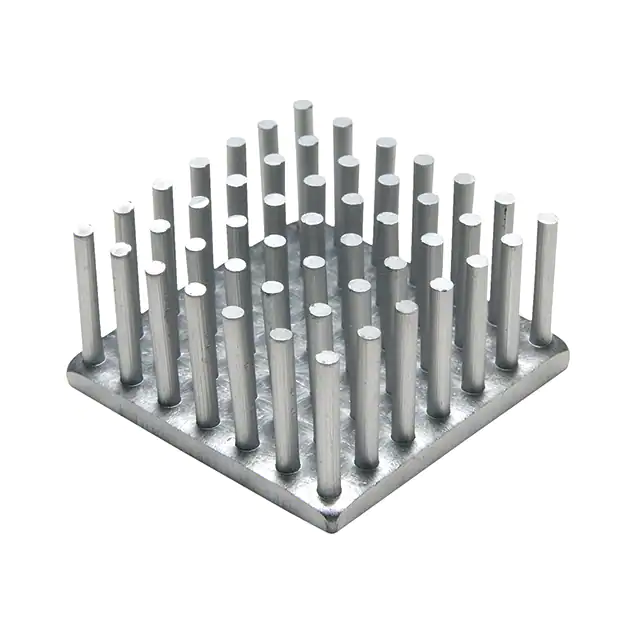

V2031AHEATSINK CPU FORGED |
3,290 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | - | 6.00°C/W | Aluminum Alloy | Clean Finished |
|
ATS-FPX045045025-70-C1-R0HEATSINK 45X45X25MM L-TAB FP |
1,783 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040015-62-C3-R0HEATSINK 40X40X15MM L-TAB FP |
4,377 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX040040015-92-C3-R0HEATSINK 40X40X15MM R-TAB FP |
3,538 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 16.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050013-12-C3-R0HEATSINK 50X50X12.7MM XCUT FP |
3,507 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

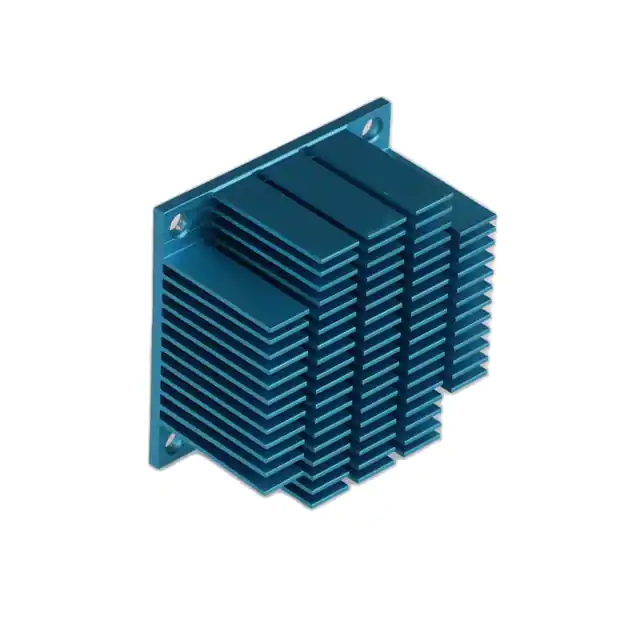

ATS-FPX045045025-10-C3-R0HEATSINK 45X45X25MM XCUT FP |
4,942 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 7.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX045045025-100-C1-R0HEATSINK 45X45X25MM R-TAB FP |
1,587 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX035035025-150-C3-R0HEATSINK 35X35X25MM L-TAB CP |
3,557 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX035035025-178-C3-R0HEATSINK 35X35X25MM R-TAB CP |
4,027 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
