Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

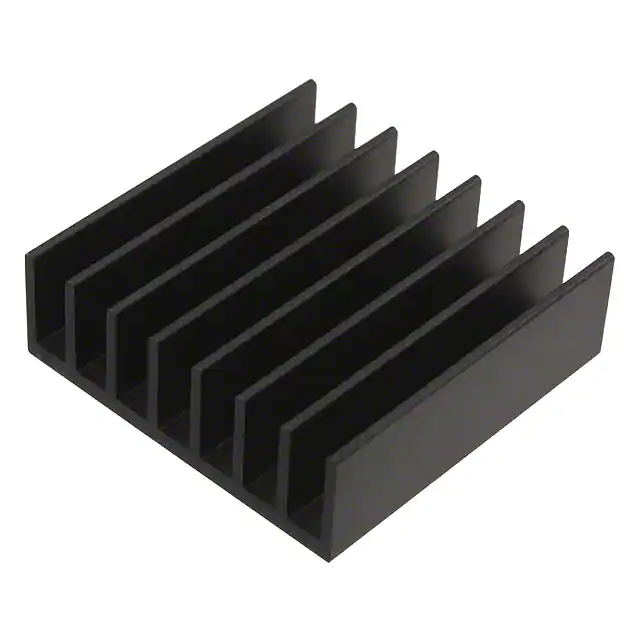

642-45ABHEATSINK CPU 35MM SQ H=.45" BLK |
1,231 |
|
Datasheet |
642 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.450" (11.43mm) | - | 6.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

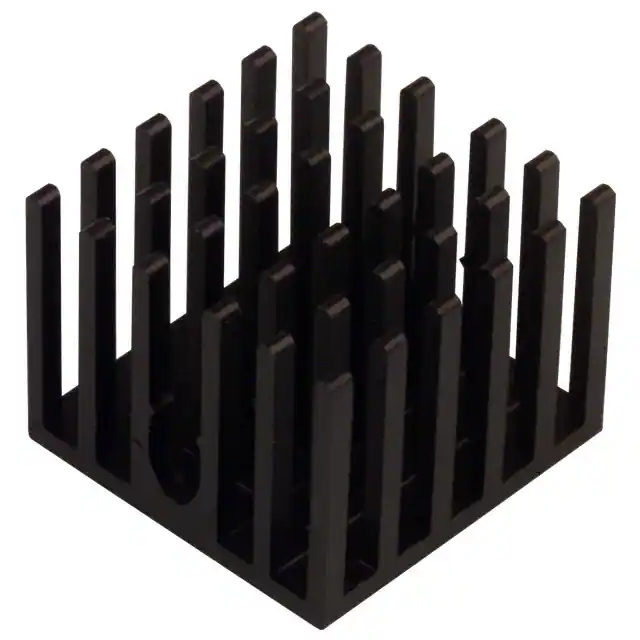

374124B00035GHEATSINK BGA W/ADHESIVE TAPE |
2,598 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.906" (23.01mm) | 0.906" (23.01mm) | - | 0.709" (18.00mm) | 2.0W @ 50°C | 7.40°C/W @ 200 LFM | 23.40°C/W | Aluminum | Black Anodized |
|

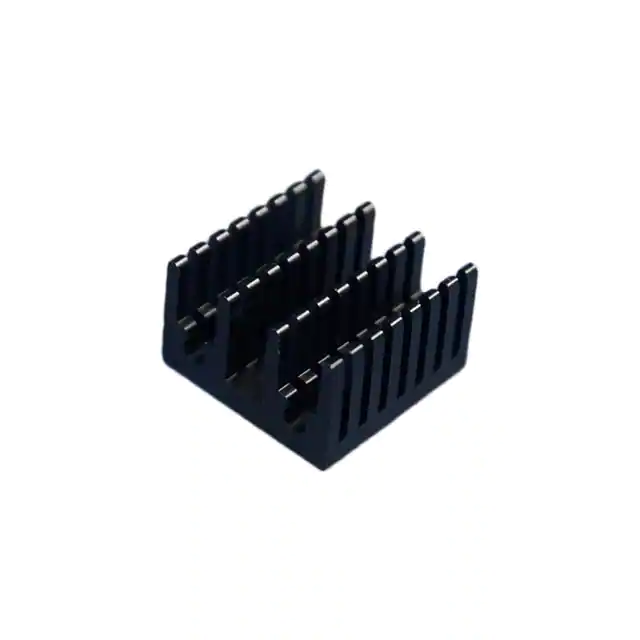

TGH-0164-01ALUMINIUM HEAT SINK 16.4X16MM |
3,020 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Pin Fins | 0.630" (16.00mm) | 0.646" (16.40mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|

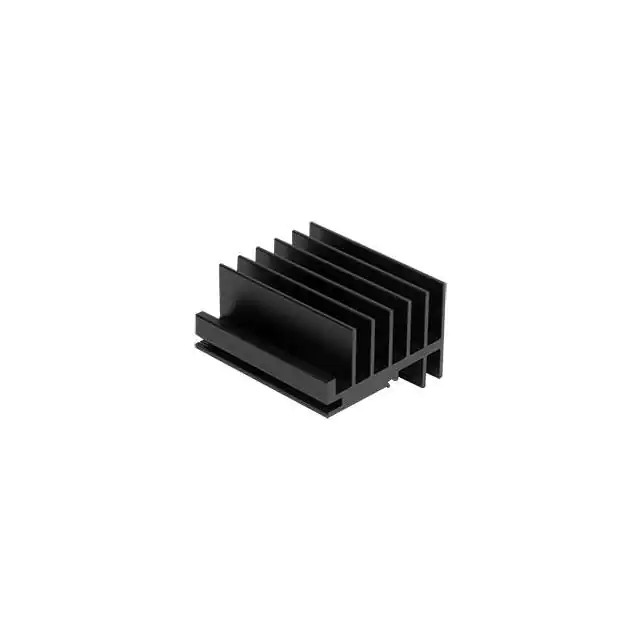

HSE06-503045HEAT SINK, EXTRUSION, TO-218/TO- |
4,295 |
|
Datasheet |
HSE | Bag | Active | Board Level | TO-218, TO-220 | Clip | Rectangular, Fins | 1.969" (50.00mm) | 1.181" (30.00mm) | - | 1.772" (45.00mm) | 12.79W @ 75°C | 2.10°C/W @ 200 LFM | 5.86°C/W | Aluminum Alloy | Black Anodized |
|
ATS-CPX040040012-195-C2-R0HEATSINK 40X40X12MM XCUT CP |
1,751 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.472" (12.00mm) | - | 10.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

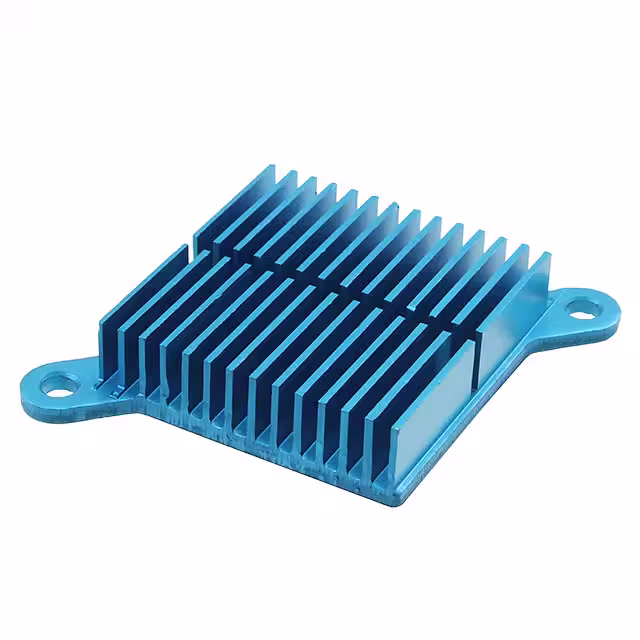

ATS-FPX035035010-85-C2-R0HEATSINK 35X35X10MM R-TAB FP |
2,274 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 23.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX025025025-168-C1-R0HEATSINK 25X25X25MM R-TAB CP |
4,064 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 6.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
WV-T220-101EHEATSINK AND CLIP FOR TO-220 |
4,683 |
|
Datasheet |
W | Tray | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.201" (30.50mm) | 0.720" (18.29mm) | - | 0.630" (16.00mm) | 1.0W @ 20°C | - | 13.00°C/W | Aluminum | Degreased |
|

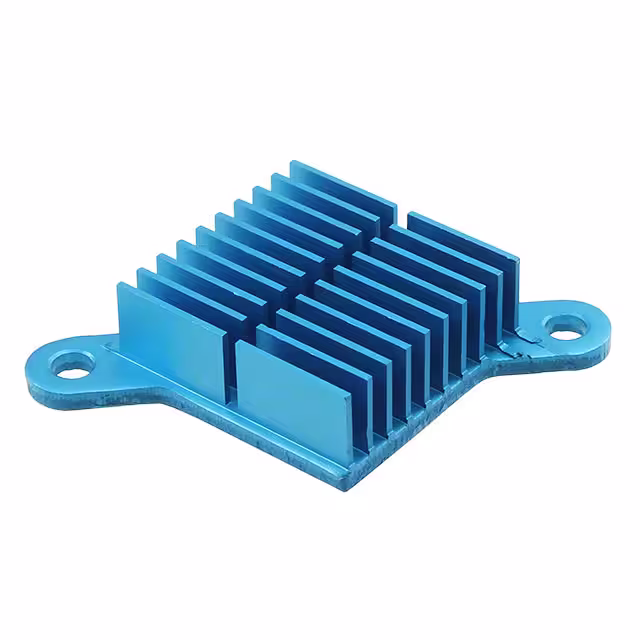

ATS-FPX025025010-43-C2-R0HEATSINK 25X25X10MM L-TAB FP |
1,532 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040020-115-C1-R0HEATSINK 40X40X20MM XCUT CP |
3,612 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
XL25D-TO220-20-14-1CERAMIC HEAT SPREADER 20X14X1MM |
3,341 |
|
Datasheet |
XL-25 | Bulk | Active | Heat Spreader | TO-220 | Thermal Tape | Rectangular | 0.787" (20.00mm) | 0.551" (14.00mm) | - | 0.039" (1.00mm) | - | - | - | Ceramic | - |
|
ATS-CPX030030010-141-C3-R0HEATSINK 30X30X10MM L-TAB CP |
3,105 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX025025035-48-C1-R0HEATSINK 25X25X35MM L-TAB FP |
4,121 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 7.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040015-03-C2-R0HEATSINK 40X40X15MM XCUT FP |
4,611 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

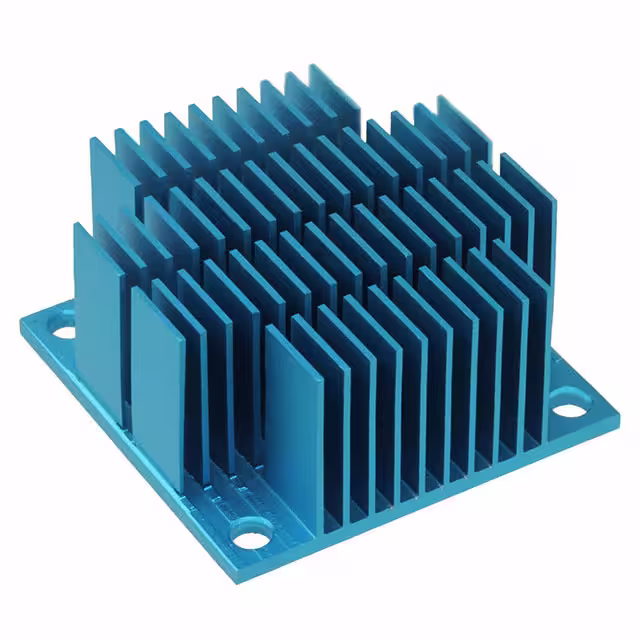

ATS-FPX040040020-04-C2-R0HEATSINK 40X40X20MM XCUT FP |
1,460 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 11.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

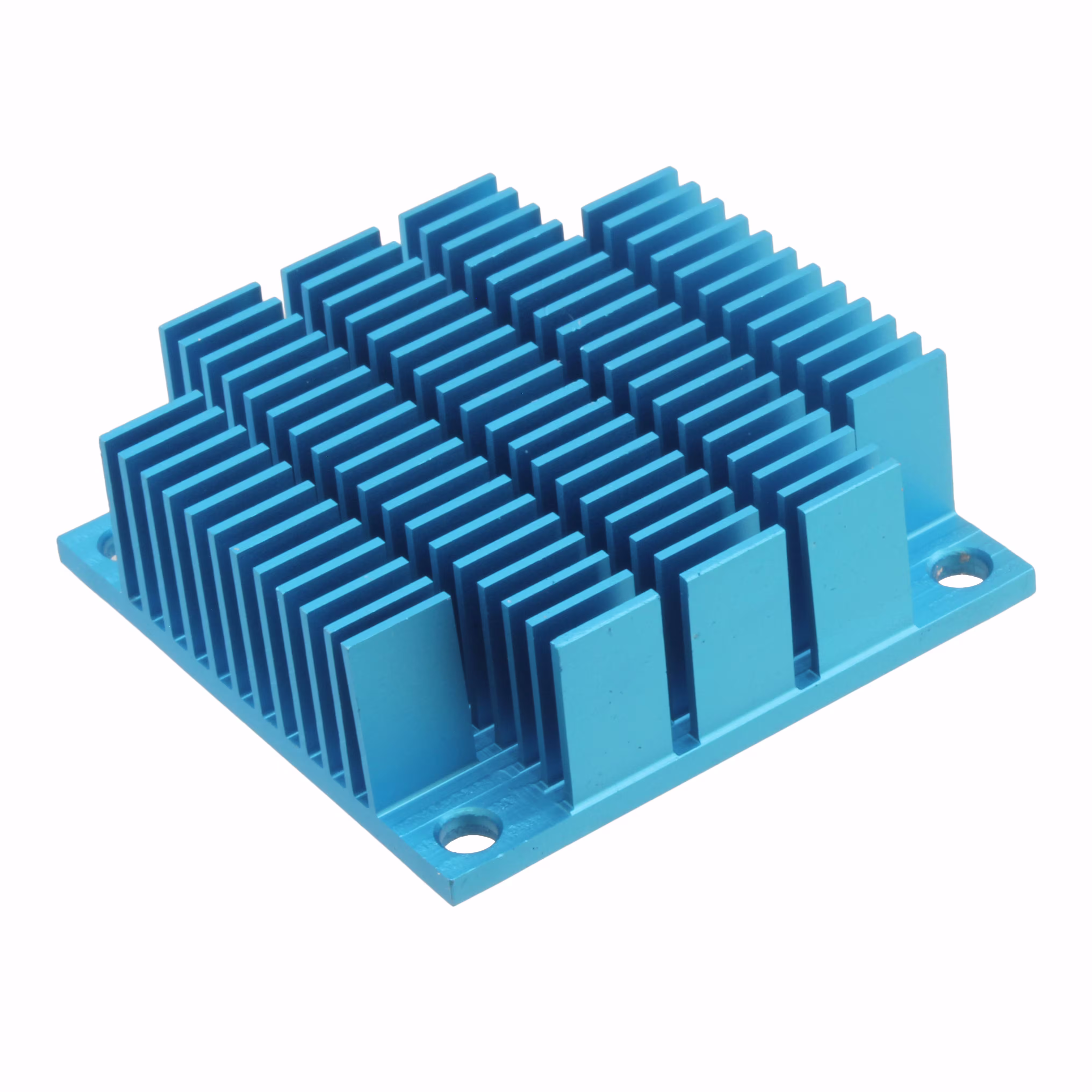

ATS-FPX045045015-08-C2-R0HEATSINK 45X45X15MM XCUT FP |
4,467 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX060060015-130-C1-R0HEATSINK 60X60X15MM XCUT CP |
1,390 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 5.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

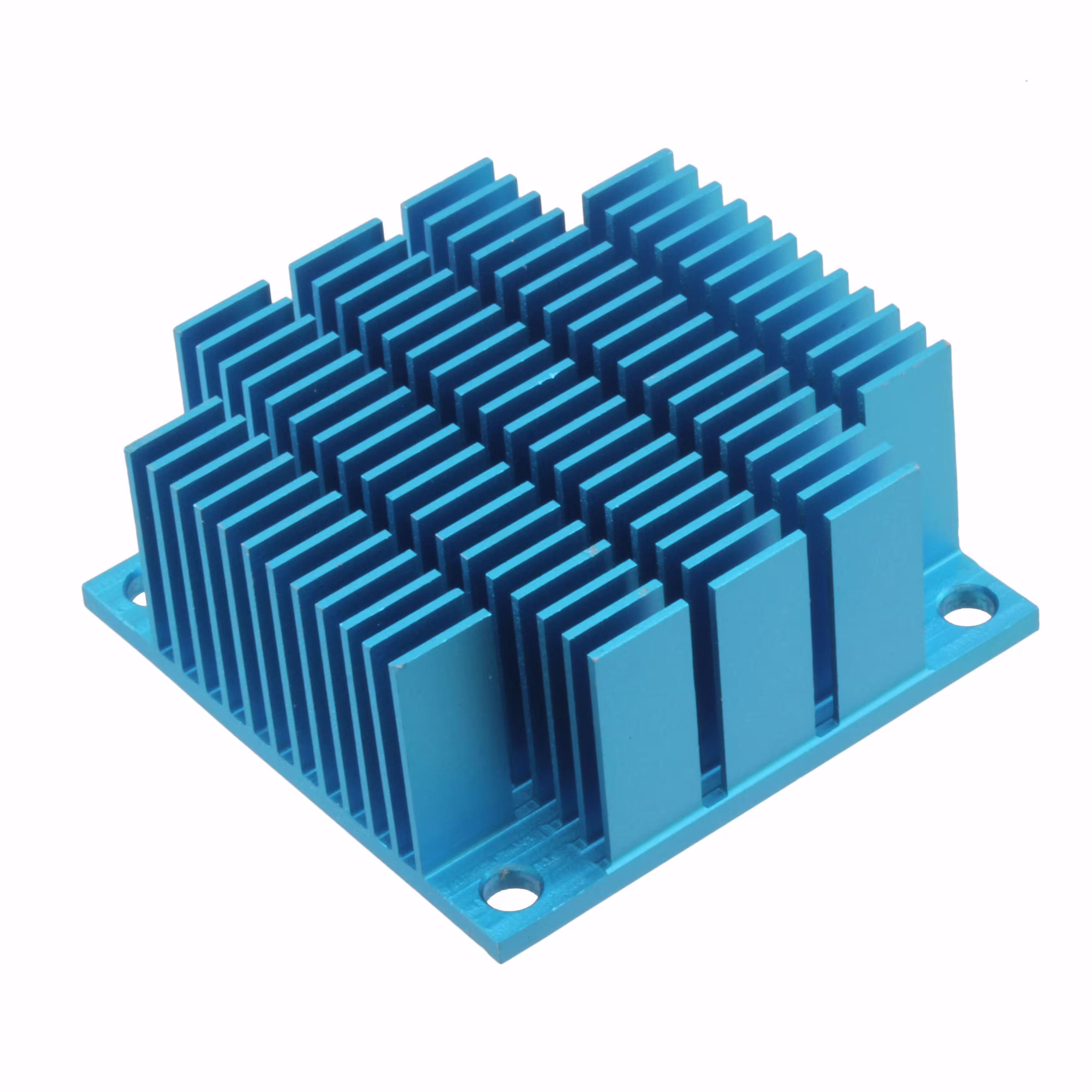

ATS-FPX045045020-09-C2-R0HEATSINK 45X45X20MM XCUT FP |
4,955 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX050050020-123-C2-R0HEATSINK 50X50X20MM XCUT CP |
1,615 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 4.16°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

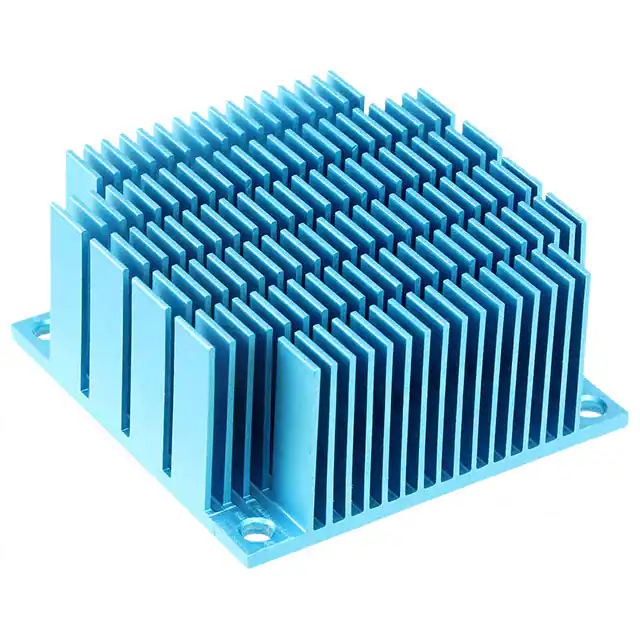

ATS-FPX054054025-20-C2-R0HEATSINK 54X54X25MM XCUT FP |
2,375 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
